Description of TC-501-02-8M5

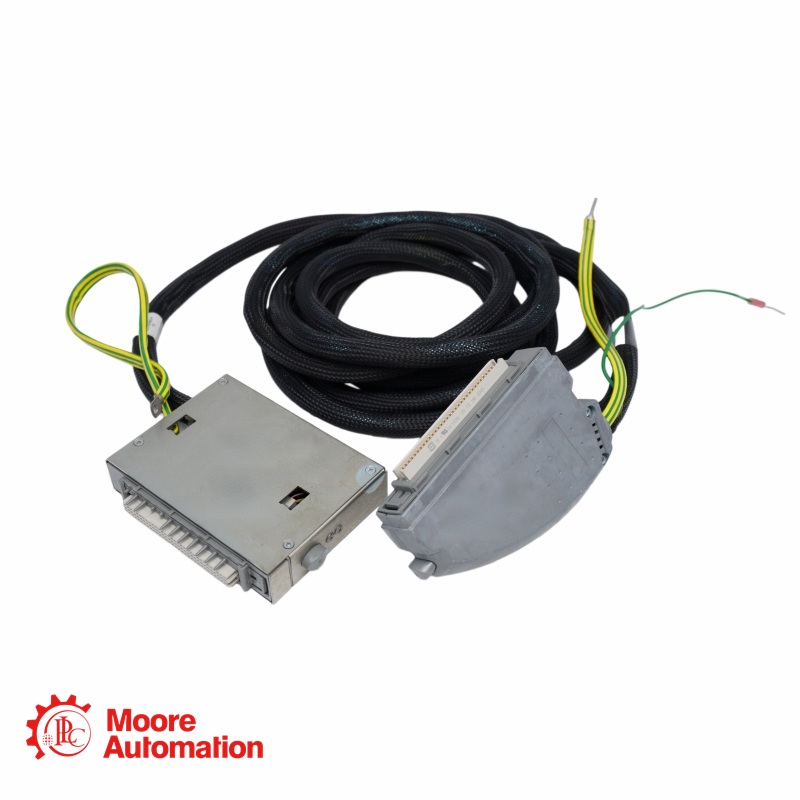

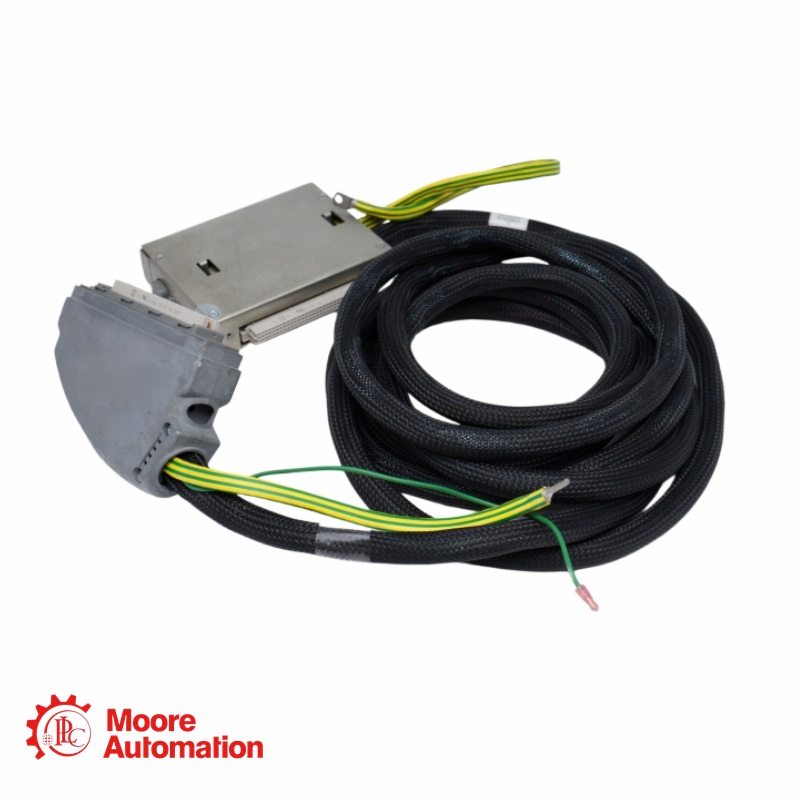

The TC-501-02-8M5 Trusted I/O SmartSlot Cable is designed for connecting digital 24 Vdc/120 Vdc and analogue output modules to an internal Field Termination Assembly (FTA). It uses three multi-core cables to handle output signals, field power supply, and power return functions. The assembly includes a 96-way Type C chassis connector and a 96-way Type R FTA connector, along with interfaces for T8290/T8297 power distribution units. With 0 V reference connection, screened construction, Rilgain sheathing, and safety earth bonding, it ensures reliable signal integrity and robust performance in industrial control systems.

Product Type	I/O SmartSlot V2 Internal 40 Channel Output
Number of Channels	40 Channels
Cable Length	8.5 m
Application	Digital 24 Vdc / 120 Vdc or analogue output modules
Connection Type	Output module to internal FTA
Number of Multi-core Cables	3
Chassis-end Connector	96-way Type C connector
Chassis Hood Type	Single-width hood (TC-500)
Multi-core 1 Remote-end Connector	Multi-core 1 Remote-end Connector
Multi-core 2 Remote-end Connector	5-way Weidmuller BLZF 3.5 series connector
Multi-core 3 Remote-end Connector	6-way AMP plug
Multi-core 1 Strip-back Length	1.5 m at both ends

Contact Below to Get Best Price

Contact-- Sylvie

Email--sales8@askplc.com

Mobile(WhatsApp)-- +86 18030235312

FAQ

1. What is the purpose of the Trusted I/O SmartSlot Cable?

The Trusted I/O SmartSlot Cable provides reliable signal, power, and grounding connections between output modules and Field Termination Assemblies (FTAs) in industrial control systems.

2. Which output modules are supported?

The cable is designed for use with digital 24 Vdc, 120 Vdc, and analogue output modules.

3. What is the function of the three multi-core cables?

Multi-core 1: Transfers output signals between the module and FTA.

Multi-core 2: Provides the field power return connection.

Multi-core 3: Supplies field power from a T8290 or T8297 power distribution unit.

4. Why is the 0 V reference connection required?

The 0 V reference allows the output module to accurately measure output voltage and must be connected to the field 0 V supply.

Applications

Distributed Control Systems (DCS)

Safety Instrumented Systems (SIS)

Process Automation

Oil & Gas Production Facilities

Petrochemical and Chemical Plants

Power Generation and Utilities

Water and Wastewater Treatment Plants
