 /Bently Nevada 330171-00-08-10-01-05 3300 5 mm Proximity Probe

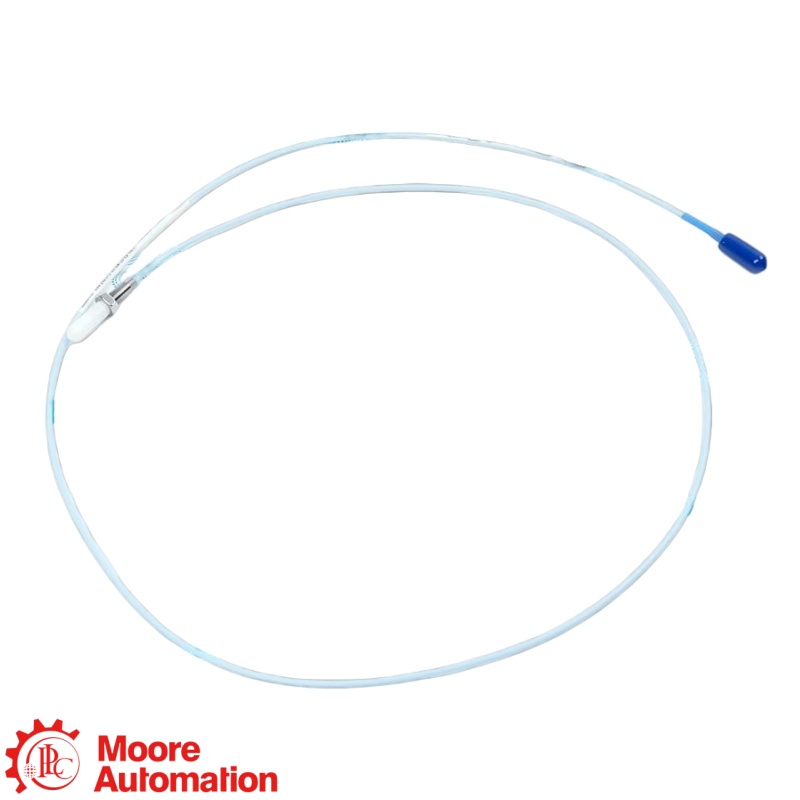

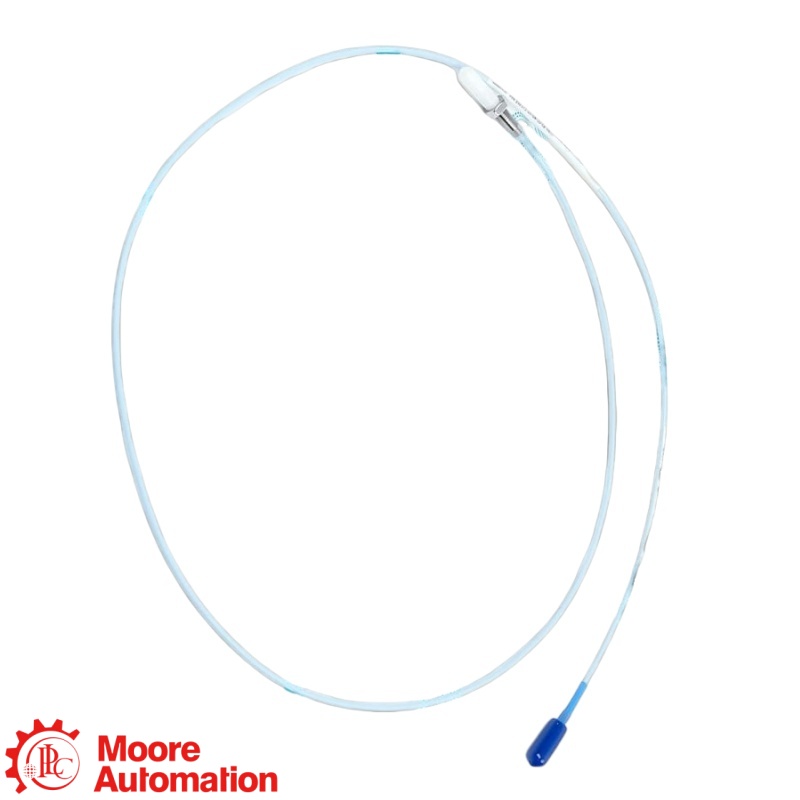

Bently Nevada 330171-00-08-10-01-05 3300 5 mm Proximity Probe
Bently Nevada 330171-00-08-10-01-05 3300 5 mm Proximity Probe
Bently Nevada 330171-00-08-10-01-05 3300 5 mm Proximity Probe

Bently Nevada 330171-00-08-10-01-05 3300 5 mm Proximity Probe

3300 5 MM PROBE · UNARMORED

330171-00-08-10-01-05

The 330171-00-08-10-01-05 is an unarmored Bently Nevada 3300 5 mm proximity probe for noncontact shaft vibration and position measurement as part of a complete 3300 5 mm transducer system.

PROBE TYPE5 mm proximity
ARMORWithout armor
TOTAL LENGTH1.0 m
CONNECTOR01 · protector
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● UNARMORED 5 MM PROBE
3300 5 MM TRANSDUCER FAMILY

330171-00-08-10-01-05

0.0 / 0.8 IN · 1.0 M · OPTION 01 · 05

3300 5 mm Proximity Probe without Armor

PROBE ROLE
330171-00-08-10-01-05 is the unarmored sensing component of a Bently Nevada 3300 5 mm noncontacting proximity transducer system. It detects shaft displacement for vibration, position, Keyphasor or speed applications, but requires a matching extension cable and 330180 Proximitor Sensor.
ORDERING NOTE
For 330171-00-08-10-01-05 specifies 0.0 in unthreaded length, 0.8 in case length, 1.0 m total length, option-01 ClickLoc connector with protector and standard cable, plus option-05 multiple approvals. The unarmored lead, 1/4-28 mounting thread and complete system length must match the installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER DECODING

How to read 330171-00-08-10-01-05

330171
Probe family1/4-28
without armor
00
Unthreaded length0.0 in
08
Case length0.8 in
10
Total length1.0 m
01
Connector optionClickLoc protector
standard cable
05
Approval optionMultiple approvals
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Family ↗
3300 5 MM TRANSDUCER FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

LINEAR RANGE2 mm
RECOMMENDED GAP1.27 mm
TOTAL LENGTH1.0 m
CASE THREAD1/4-28 UNF
Manufacturer-reference 3300 5 mm system characteristics.
Configuration verificationConfirm the complete 330171-00-08-10-01-05 label, unarmored construction, 1/4-28 mounting, 1.0 m probe length, matching extension cable, 330180 Proximitor and approval markings.
Product Identity −
Catalog number330171-00-08-10-01-05
Product family3300 5 mm Proximity Transducer System
Product type5 mm noncontacting proximity probe
Case thread1/4-28 UNF
Probe cable armorWithout armor
Probe-tip materialPolyphenylene sulfide · PPS
Ordering Configuration ＋
Option 000.0 in unthreaded length
Option 080.8 in overall case length
Option 101.0 metre total probe length
Option 01ClickLoc connector with protector, standard cable
Option 05Multiple approvals
Length ruleUnthreaded length is at least 0.8 in less than case length
System Performance ＋
Linear range2 mm · 80 mils
Usable linear region0.25 to 2.3 mm · 10 to 90 mils
Recommended gap1.27 mm · 50 mils
Scale factor7.87 V/mm · 200 mV/mil, ±6.5% typical
Frequency response0 to 10 kHz, +0/−3 dB
Minimum flat target15.2 mm · 0.6 in diameter
Mechanical Configuration ＋
Probe caseAISI 303 or 304 stainless steel
Probe cable75 Ω triaxial, FEP insulated
Armor configuration330171: unarmored probe lead
Tensile strength222 N · 50 lbf
Probe-case torque5.1 N·m recommended · 7.3 N·m maximum
Minimum cable bend radius25.4 mm · 1.0 in
Environmental and Approval ＋
Probe temperature−35°C to +177°C
Low-temperature warningBelow −34°C may shorten pressure-seal life
Pressure sealingApplication containment remains the user’s responsibility
Approval option 05Multiple approvals; verify supplied markings
Connector protectionOption 01 includes a connector protector
Installation environmentConfirm process media, temperature and hazardous-area rules
System Compatibility ＋
Required system3300 5 mm probe, XL extension cable and 330180 Proximitor
System length5 m or 9 m including extension cable
This probe length1.0 m
Extension-cable ruleProbe plus extension cable must equal system length
Field wiringUp to 305 m to monitor under stated conditions
Reference targetAISI 4140 steel for published system specifications
Source: Bently Nevada 3300 5 mm Transducer System Datasheet, document 172036 Rev. T. Performance values apply to the complete specified system.
FAQ

Questions Buyers Ask Most

What does 330171-00-08-10-01-05 measure?−

330171-00-08-10-01-05 is a Bently Nevada 3300 5 mm noncontacting proximity probe that senses shaft-to-probe distance for radial vibration, axial position, Keyphasor or speed measurement. This unarmored 1.0 m probe must operate with a compatible extension cable and 330180 Proximitor Sensor.

How is 330171-00-08-10-01-05 configured?＋

330171-00-08-10-01-05 specifies 0.0 in unthreaded length, 0.8 in overall case length, 1.0 m total length, option-01 ClickLoc connector with protector and standard cable, plus option-05 multiple approvals. The 1/4-28 mounting thread, cable route and approval markings must match the installation.

What is the difference between 330171-00-08-10-01-05 and the 330172 family?＋

330171-00-08-10-01-05 is the 330171 version without cable armor; 330172 adds flexible stainless-steel armor. The sensing system is otherwise selected by probe geometry, total length, connector, extension cable and Proximitor compatibility, so armor alone is not the only replacement criterion.

Is 330171-00-08-10-01-05 a complete proximity transducer system?＋

No. 330171-00-08-10-01-05 is only the probe component. A complete 3300 5 mm measurement chain requires a matching 3300 XL extension cable and 330180 Proximitor Sensor, with probe plus extension cable totaling the configured 5 m or 9 m system length.

Can 330171-00-08-10-01-05 be used as an 8 mm probe replacement?＋

330171-00-08-10-01-05 should not be used automatically as an 8 mm probe replacement. Although the 3300 5 mm system provides a 2 mm linear range similar to an 8 mm system, the probe body, connector, extension cable, Proximitor calibration and installation clearances must match the 3300 5 mm platform. Treat it as a complete-system compatibility decision.

What must be confirmed before installing 330171-00-08-10-01-05?＋

For 330171-00-08-10-01-05, confirm the full part number, unarmored construction, 1/4-28 mounting thread, maximum 0.375 in thread engagement, 1.0 m probe length, extension-cable length, 330180 Proximitor, 1.27 mm recommended gap, target material and size, tip spacing, temperature and approval requirements.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete probe label, extension-cable length, 330180 Proximitor configuration, mounting geometry and target details for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
330171-00-08-10-01-05

Manufacturer documentation for the Bently Nevada 3300 5 mm Transducer System with configuration details applicable to 330171-00-08-10-01-05.

3300 5 mm Transducer System

Bently Nevada datasheet 172036 Rev. T covering 330171/330172 probe ordering, performance, mechanical limits and system compatibility.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. Specifications are based on the official Baker Hughes / Bently Nevada datasheet; confirm the complete supplied part number, configuration and approval markings before installation.

3300 5 MM PROBE RELATIONSHIP

How 330171-00-08-10-01-05 Fits into a 3300 5 mm Measurement Chain

Bently Nevada is the brand; the 3300 5 mm Transducer System is the product family and complete measurement system; and the 200150 is a general-purpose accelerometer within that family. A complete measurement chain uses a compatible accelerometer, an extension cable where required, and a TIM / Monitor.

Bently Nevada · BRAND
3300 5 mm Transducer SystemPRODUCT FAMILY · PROXIMITY PLATFORM
PROBE COMPONENT

5 mm Probe

The 330171-00-08-10-01-05 probe senses shaft-to-probe distance without contact; its unarmored 1.0 m lead and 1/4-28 mounting must match the installation.

INTERCONNECTION

Extension Cable

A compatible 3300 XL extension cable completes the required 5 m or 9 m system length; probe and extension lengths must add up correctly.

SYSTEM CONVERSION

330180 Proximitor

The 330180 Proximitor Sensor powers the probe and converts displacement into the calibrated voltage used by the monitor.

System relationship: the 5 mm probe, XL extension cable and 330180 Proximitor must match the selected 5 m or 9 m system configuration.
APPLICATION AREAS

Application mind map for the 3300 5 mm Probe

General MachineryNoncontact shaft vibration and axial-position measurement on fluid-film bearing machines
Keyphasor / SpeedPhase reference and rotational-speed measurement with a compatible target
APPLICATION CENTER 3300 5 mm Probe Noncontacting displacement measurement
Fault DetectionDetect shaft vibration, displacement and position changes
System ReplacementRestore verified probe, extension cable and Proximitor compatibility
