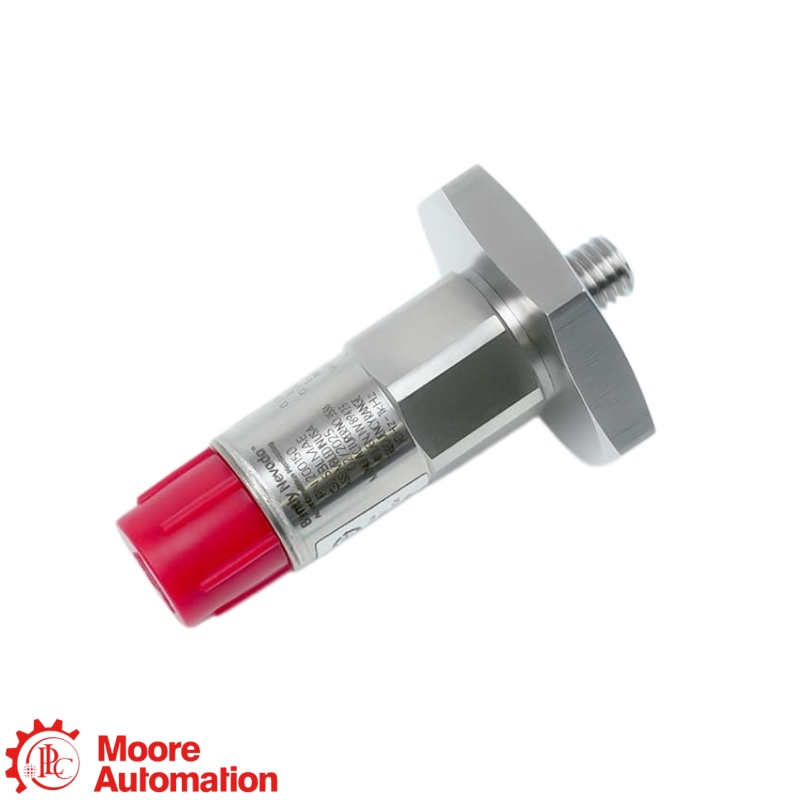

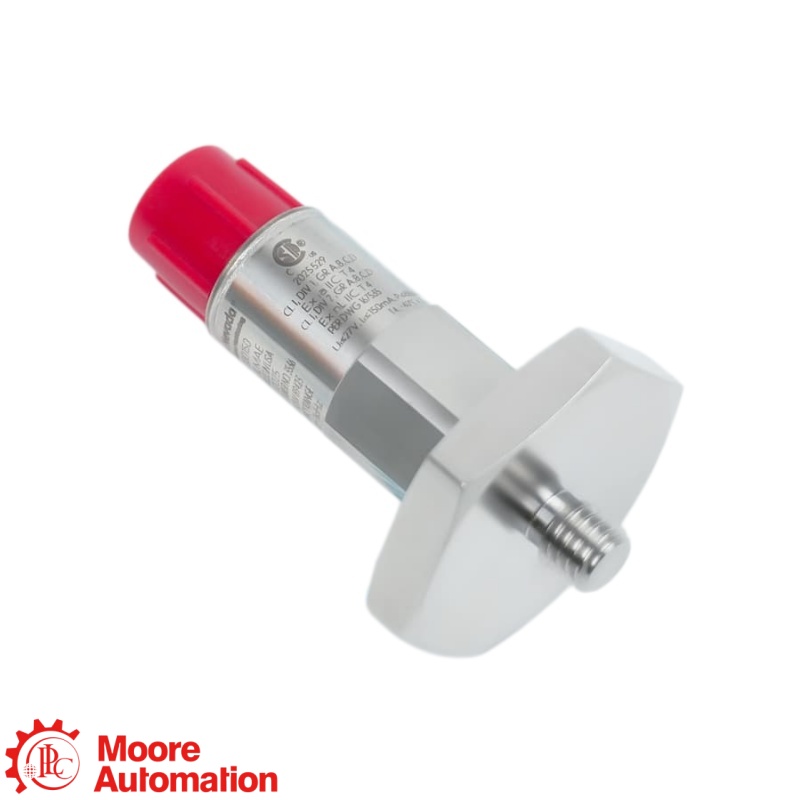

Bently Nevada 200150-06-CN General-Purpose Trendmaster Accelerometer
Bently Nevada 200150-06-CN General-Purpose Trendmaster Accelerometer
Bently Nevada 200150-06-CN General-Purpose Trendmaster Accelerometer

Bently Nevada 200150-06-CN General-Purpose Trendmaster Accelerometer

20015x ACCELEROMETER · GENERAL PURPOSE

200150-06-CN

The 200150-06-CN is a Bently Nevada general-purpose, case-mounted piezoelectric accelerometer with an option-06 3/8-24 to 1/4 NPT mounting stud for compatible Trendmaster acceleration-to-velocity channels.

SENSITIVITY100 mV/g
MOUNTING STUDOption 06
FREQUENCY RANGE10–1,000 Hz
TOP CONNECTOR5-pin · 1/2-20
MANUFACTURERBently Nevada · Baker Hughes
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
BENTLY NEVADA ● GENERAL-PURPOSE SENSOR
20015x ACCELEROMETER FAMILY

200150-06-CN

OPTION 06 · CN CONFIGURATION

General-Purpose Trendmaster Accelerometer

SENSOR ROLE
200150-06-CN is a general-purpose Bently Nevada case-mounted piezoelectric accelerometer that converts machinery-casing vibration into a differential voltage proportional to acceleration. Its 100 mV/g, ±25 g configuration is designed for standard Trendmaster acceleration-to-velocity applications with compatible cables and interface modules.
ORDERING NOTE
For 200150-06-CN uses mounting option 06: a 3/8-24 to 1/4 NPT, 3/4 inch hex stud. The current manufacturer ordering table lists approval option 05 rather than CN, so confirm the exact nameplate and approval documentation before ordering.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER DECODING

How to read 200150-06-CN

200150
Base familyGeneral-purpose accelerometer
100 mV/g
06
Mounting option3/8-24 to 1/4 NPT
3/4 in hex
CN
Regional labelVerify nameplate and approval documentation
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Family ↗
20015x ACCELEROMETER FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

SENSITIVITY100 mV/g
MEASUREMENT RANGE±25 g
FREQUENCY RANGE10–1,000 Hz
SENSOR WEIGHT58 g
Manufacturer-reference 200150 configuration.
Configuration verificationConfirm the complete 200150-06-CN label, option-06 mounting stud, approval markings and compatible measurement chain before applying the published family values.
Product Identity −
Catalog number200150-06-CN
Product family200150 / 200155 / 200157 Accelerometers
Product typeGeneral-purpose case-mounted seismic accelerometer
Sensing elementPiezoelectric ceramic, shear geometry
Housing316L stainless steel
SealHermetically sealed
Measurement Performance ＋
Sensitivity at 80 Hz10.2 mV/(m/s²) · 100 mV/g (±12%)
Measurement range±245 m/s² · ±25 g
Frequency range10 to 1,000 Hz (±10%, referenced to 80 Hz)
Mounted resonance>20 kHz
Amplitude linearity±2% from 1 to 10 g pk
Transverse sensitivity≤7%
Excitation and Output ＋
Excitation voltage4.7 to 5.5 V DC
Quiescent current<800 µA
Output bias voltage+2.5 ±0.23 V DC
Broadband noise14.7 mm/s² · 1.5 mg
Electrical isolation600 Vrms
Settling time≤300 ms
Mechanical Configuration ＋
Sensor size17.5 mm hex × 45.7 mm high
Typical weight58 g
Sensor mounting thread3/8-24 female
Option 06 mounting stud3/8-24 to 1/4 NPT, 3/4 in hex stud
Mounting torque2.7 to 6.8 N·m
Top connector5-pin, 1/2-20
Environmental and Approval ＋
Operating temperature−40°C to +105°C
Axial shock limit49,050 m/s² pk · 5,000 g pk
Humidity100% RH, condensing, non-submerged
Cable sealIP67 at mating connectors
Approval conditionVerify exact label and approval guide
CN suffixConfirm against supplied nameplate and documentation
System Compatibility ＋
Primary useGeneral machinery casing vibration
Trendmaster ProTIMStandard acceleration-to-velocity channel (−01)
Trendmaster 2000Supported by 200150
Compatible interfaces200100 flexiTIM and 89130-01 TIM
Compatible monitors1900/25 and 1900/27
Cable conditionUse compatible 200151/200152 cable; maximum 25 m
Source: Bently Nevada 200150, 200155 and 200157 Accelerometers Datasheet, document 164986 Rev. Y. Values shown for 200150 apply under the manufacturer’s stated test conditions.
FAQ

Questions Buyers Ask Most

What does 200150-06-CN measure?−

200150-06-CN is a Bently Nevada case-mounted piezoelectric accelerometer that converts machinery-casing vibration into a differential voltage proportional to acceleration. Its 100 mV/g, ±25 g configuration is intended for general Trendmaster applications and requires a compatible cable and TIM/monitor channel.

What does mounting option 06 specify on 200150-06-CN?＋

200150-06-CN uses option 06: a 3/8-24 sensor-side thread to 1/4 NPT machine-side thread with a 3/4 inch hex stud. The mounting port, engagement, sensor base and specified 2.7–6.8 N·m sensor torque must all be confirmed before installation.

Can the CN suffix on 200150-06-CN be treated as the current multiple-approval code?＋

No. The current manufacturer ordering table lists option 05 for multiple approvals, while CN should be treated as a label-specific regional configuration. Verify the supplied nameplate, approval markings and site hazardous-area documentation before use.

Can 200150-06-CN replace 200150-02-CN?＋

The sensing performance is from the same 200150 general-purpose family, but the mounting hardware is different. Option 06 uses a 1/4 NPT machine interface, while option 02 uses a 3/8-24 UNF hex-plate stud; replacement is valid only when the mounting port, stud geometry, cable and monitor channel all match.

Is 200150-06-CN a complete vibration-monitoring system?＋

No. 200150-06-CN is the sensing element. A complete measurement chain also needs a compatible 200151 or 200152 cable and a supported 200100 flexiTIM, 89130-01 TIM, Trendmaster or 1900-series monitor configured for the sensor signal.

What must be confirmed before installing 200150-06-CN?＋

Confirm the complete label, option-06 1/4 NPT mounting interface, stud engagement, 2.7–6.8 N·m torque, compatible 5-pin cable, cable length, 4.7–5.5 V excitation, monitor/TIM channel, temperature range and required hazardous-area approvals.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete sensor label, option-06 mounting interface, cable and monitor/TIM channel details for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
200150-06-CN

Manufacturer documentation for the Bently Nevada 200150, 200155 and 200157 Accelerometers with configuration details applicable to 200150-06-CN.

200150, 200155 and 200157 Accelerometers

Bently Nevada datasheet 164986 Rev. Y covering 200150 electrical, mechanical, environmental, mounting and compatibility specifications.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. Specifications are based on the official Baker Hughes / Bently Nevada datasheet; confirm the complete supplied part number, configuration and approval markings before installation.

200150 ACCELEROMETER RELATIONSHIP

How 200150-06-CN Fits into a Trendmaster Measurement Chain

Bently Nevada is the brand; the 200150, 200155 and 200157 Accelerometers is the product family and complete measurement system; and the 200150 is a general-purpose accelerometer within that family. A complete measurement chain uses a compatible accelerometer, an extension cable where required, and a TIM / Monitor.

Bently Nevada · BRAND
20015x Accelerometer FamilyPRODUCT FAMILY · SENSOR PLATFORM
SENSING COMPONENT

Accelerometer

The 200150 accelerometer measures machine-casing vibration through a piezoelectric ceramic shear sensing element.

INTERCONNECTION

Interface Cable

A compatible 200151 or 200152 cable connects the sensor’s 5-pin output to the supported interface electronics; cable length and connector option must match.

SIGNAL CONDITIONING

TIM / Monitor

The 200100 flexiTIM, 89130-01 TIM, Trendmaster or supported 1900 monitor processes the accelerometer’s differential signal for machinery monitoring.

System relationship: compatible component types and total system length must match the Bently Nevada 20015x Accelerometer system requirements.
APPLICATION AREAS

Application mind map for the 200150 Accelerometer

General MachineryCasing-vibration monitoring on pumps, motors and fans
Trend MonitoringStandard acceleration-to-velocity monitoring through Trendmaster
APPLICATION CENTER 200150 Accelerometer Case-mounted acceleration measurement
Fault DetectionDetect changes associated with imbalance and misalignment
System ReplacementRestore verified sensor, cable and TIM/monitor compatibility
