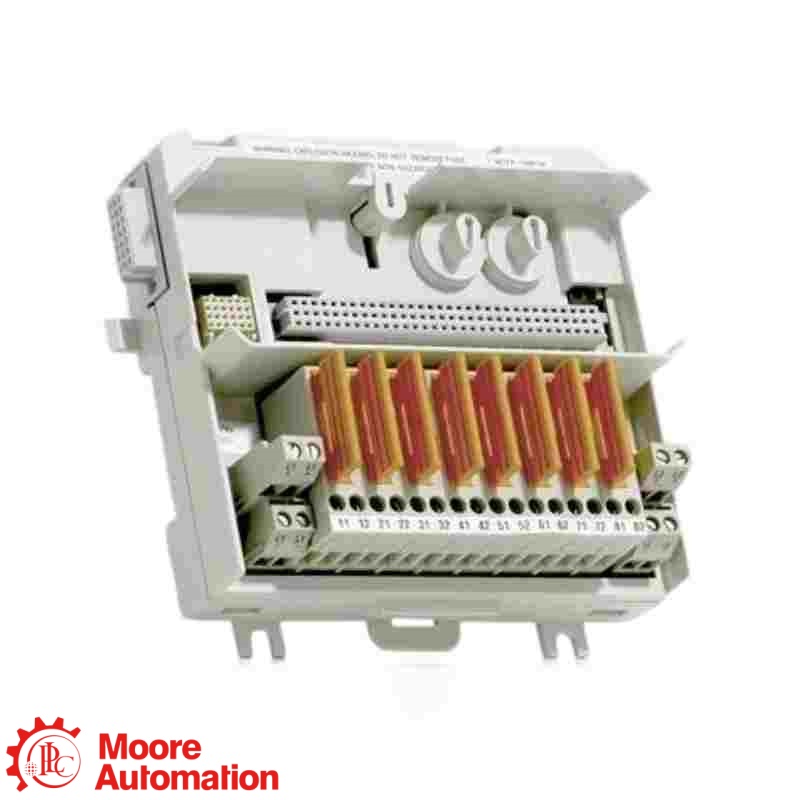

ABB TU835V1 3BSE013236R1 Extended Module Termination Unit

ABB · S800 I/O MODULE TERMINATION UNIT

TU835V1 3BSE013236R1

The TU835V1 3BSE013236R1 is an ABB S800 I/O extended Module Termination Unit for up to 8 I/O channels. ABB specifies a 50 V rating, terminal-block connection and use with AI810, AI815 and AI845 I/O modules.

MANUFACTURERABB

MODELTU835V1 3BSE013236R1

ARTICLE NUMBER3BSE013236R1

STATUSOFFICIAL DATA

MANUFACTURERABB

PRODUCT TYPEExtended Module Termination Unit (MTU)

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATION● Confirm the exact article number, compatible I/O module and installed S800 arrangement

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

ABB ● S800 I/O EXTENDED MTU

ABB S800 I/O MODULE TERMINATION UNIT

TU835V1 3BSE013236R1

OFFICIAL ABB DATA

Extended MTU · 8 I/O channels · 50 V · terminal block

PRODUCT ROLE

TU835V1 3BSE013236R1 is an ABB industrial automation spare part reference. Confirm its exact function, revision and compatibility from the complete nameplate, installed-system records and ABB documentation.

INSTALLATION CHECK

Use only with the ABB-listed AI810, AI815 or AI845 I/O modules. Confirm the 50 V rating, wiring, DIN-rail mounting and installed S800 configuration before replacement.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

MODEL IDENTIFICATION

How TU835V1 3BSE013236R1 is identified

TU835V1 3BSE013236R1 identifies the TU835V1 extended Module Termination Unit for ABB S800 I/O; 3BSE013236R1 is the exact ABB article number.

TU835V1

Model designationExtended Module Termination Unit, 50 V

3BSE013236R1

ABB article numberExact article number for TU835V1

OFFICIAL ABB CHARACTERISTICS

Technical Specifications

ABB TU835V1 3BSE013236R1

TU835V1 · 3BSE013236R1

Engineering data at a glance

ABB identifies TU835V1 as an extended S800 I/O Module Termination Unit with terminal-block connection, up to 8 I/O channels and a 50 V rating.

ARTICLE NUMBER3BSE013236R1

CHANNELSUp to 8

RATED VOLTAGE50 V

CURRENT / CHANNEL2 A max.

Official compatibility scopeABB lists TU835V1 for use with AI810, AI815 and AI845 I/O modules in single-I/O arrangements.

GENERAL INFORMATION −

Brand / product lineABB S800 I/O

ModelTU835V1

Article number3BSE013236R1

Product typeExtended Module Termination Unit (MTU)

ConnectionTerminal block

ChannelsUp to 8 I/O channels

Use with I/OAI810, AI815 and AI845

ELECTRICAL & CONNECTION DATA ＋

Rated voltage50 V

Maximum current per I/O channel2 A

Maximum process-connection current8 A

Acceptable wire sizeSolid 0.2–4 mm²; stranded 0.2–2.5 mm² (24–12 AWG)

Dielectric test voltage500 V AC

MOUNTING & ENVIRONMENT ＋

MountingDIN rail; both directions

Operating temperature0 to +55 °C (+32 to +131 °F)

Protection classIP20

Dimensions / weight126 × 64 × 110 mm; 0.26 kg

Source: ABB TU835V1 official product page and ABB TU835V1 data sheet, article number 3BSE013236R1.

FAQ

TU835V1 3BSE013236R1 Technical and Ordering FAQ

What is TU835V1 3BSE013236R1 used for?＋

TU835V1 3BSE013236R1 is an ABB S800 I/O extended Module Termination Unit that distributes ModuleBus, field signals and process power for up to 8 I/O channels.

Which I/O modules are listed for TU835V1 3BSE013236R1?＋

ABB lists TU835V1 3BSE013236R1 for use with AI810, AI815 and AI845 I/O modules in a single-I/O arrangement; confirm the exact installed module before replacement.

What voltage and channel capacity apply to TU835V1 3BSE013236R1?＋

TU835V1 3BSE013236R1 is rated at 50 V and supports up to 8 I/O channels, with a maximum rated current of 2 A per channel.

How are field wires connected to TU835V1 3BSE013236R1?＋

TU835V1 3BSE013236R1 uses terminal-block connections and provides 16 process connections, four process-power terminals and four 0 V process-power terminals for field wiring.

How is TU835V1 3BSE013236R1 mounted?＋

TU835V1 3BSE013236R1 mounts on a standard DIN rail in either direction and uses a mechanical latch to secure and ground the MTU on the rail.

What environmental limits apply to TU835V1 3BSE013236R1?＋

ABB specifies TU835V1 3BSE013236R1 for 0 to +55 °C operation, 5–95% non-condensing relative humidity, IP20 protection and a maximum ambient temperature of 55 °C.

What information should be supplied when ordering TU835V1 3BSE013236R1?＋

For TU835V1 3BSE013236R1, provide the exact model and article number, quantity, installed I/O module, cabinet configuration, field wiring and required replacement schedule.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Official Datasheet and References for
TU835V1 3BSE013236R1

Official manufacturer-documentation status for ABB TU835V1 3BSE013236R1.

Official datasheet status

No current official TU835V1 3BSE013236R1 product datasheet was located in ABB's public documentation. For product documentation and compatibility details, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, installed I/O module and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Source: ABB TU835V1 official data sheet, article number 3BSE013236R1.

ABB S800 I/O PRODUCT RELATIONSHIP

How TU835V1 3BSE013236R1 fits into S800 I/O

ABB is the manufacturer; TU835V1 is the extended Module Termination Unit; and 3BSE013236R1 is the exact ABB article number.

ABB · BRAND

TU835V1 · 3BSE013236R1S800 I/O EXTENDED MTU

MODEL

TU835V1

Extended Module Termination Unit with terminal-block connection and DIN-rail mounting.

I/O RELATIONSHIP

AI810 · AI815 · AI845

ABB lists these I/O modules for use with TU835V1 in a single-I/O arrangement.

FIELD CONNECTIONS

Up to 8 channels

The MTU provides signal and fused transducer-power connections and distributes ModuleBus onward.

Compatibility check: confirm the exact I/O module, 50 V field rating, terminal wiring and installed S800 arrangement before replacement.

APPLICATION AREAS

Application map for TU835V1 3BSE013236R1

S800 I/O TerminationConnect field signals and process power to an ABB S800 I/O module.

ModuleBus DistributionDistribute ModuleBus to the installed I/O module and onward to the next MTU.

APPLICATION CENTERTU835V1
3BSE013236R1Extended 50 V Module Termination Unit for up to 8 I/O channels.

Compatible I/O MatchingMatch the MTU only with ABB-listed AI810, AI815 or AI845 modules.
