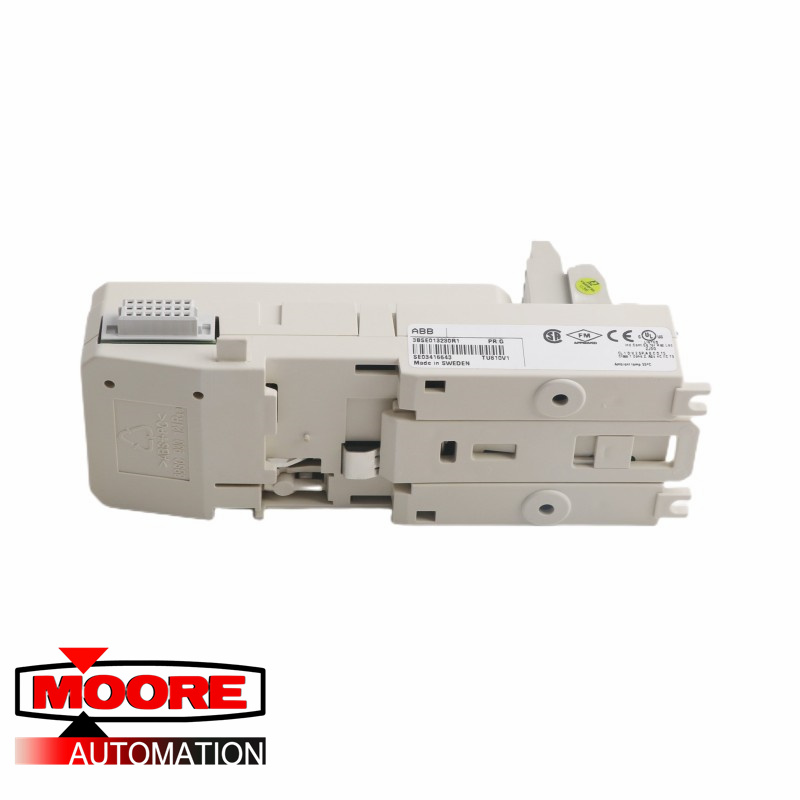

ABB | TU810V1 3BSE013230R1 | Compact Module Termination Unit

Product Description:

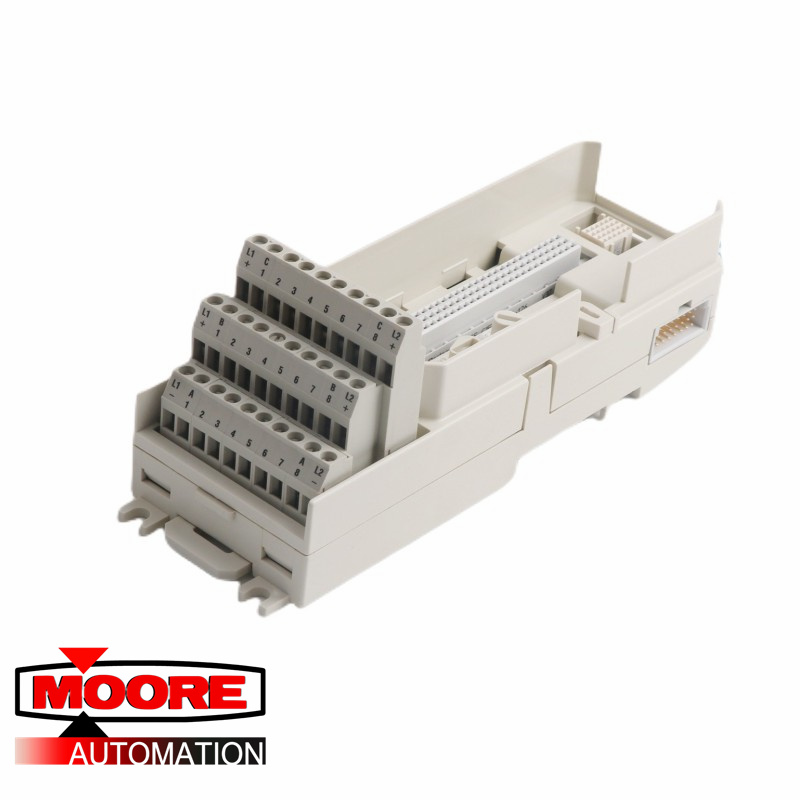

The TU810 is a 16 channel compact module termination unit. The TU810 has three rows of terminals for field signals and process power connections.The TU811 is a 8 channel compact module termination unit. The TU811 has three rows of terminals for field signals and process power connection.
The TU810/TU810V1 is a 16 channel 50 V compact module termination unit (MTU) for the S800 I/O. The MTU is a passive unit used for connection of the field wiring to the I/O modules. It also contains a part of the ModuleBus. The TU810/TU810V1 MTU can have up to 16 I/O channels and two process voltage connections. The maximum rated voltage is 50 V and maximum rated current is 2A per channel. Two mechanical keys are used to configure the MTU for different types of I/O modules. The MTU distributes the ModuleBus to the I/O module and to the next MTU. It also generates the correct address to the I/O module by shifting the outgoing position signals to the next MTU.
