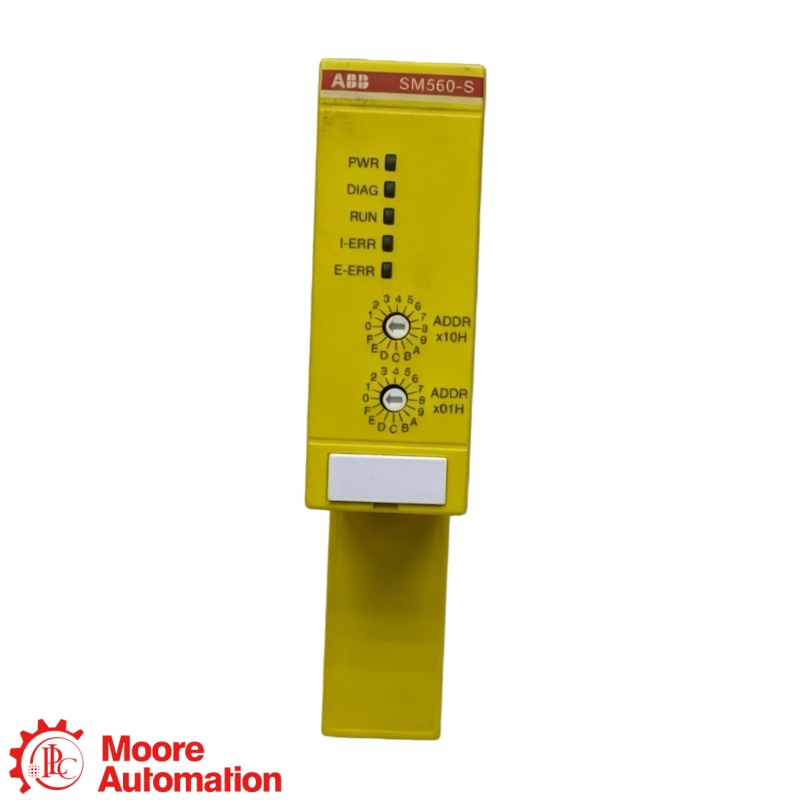

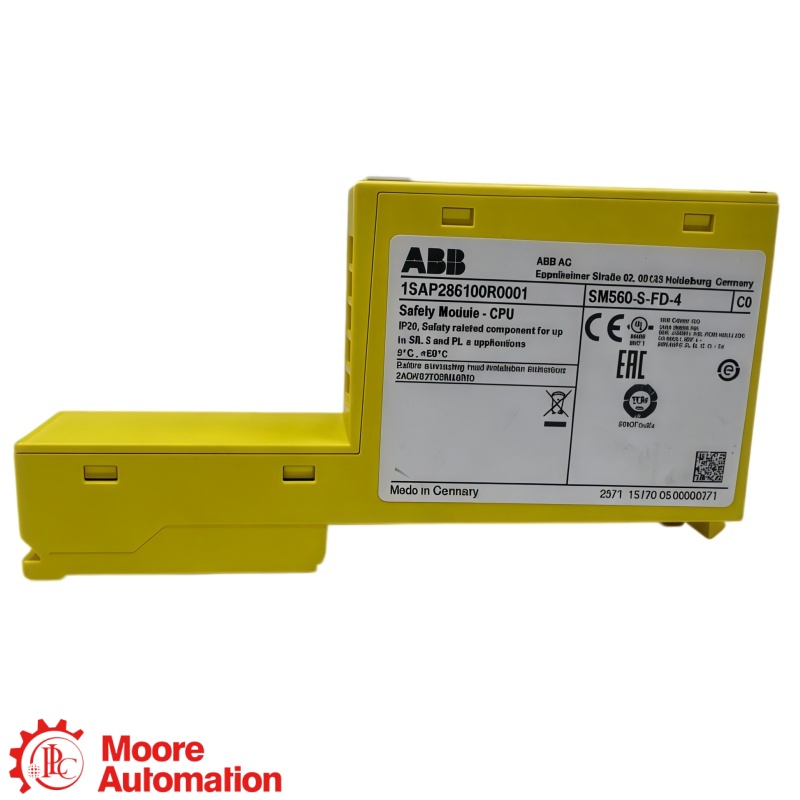

ABB SM560-S-FD-4 AC500-S Safety CPU Module

ABB AC500-S · SAFETY CPU MODULE

SM560-S-FD-4

The SM560-S-FD-4 is an ABB AC500-S safety CPU module with 1.3 MB user program memory and F-Device functionality for up to 4 PROFIsafe networks. F-Device safety communication are available through the compatible terminal base.

PRODUCT TYPESAFETY CPU

PLATFORMAC500-S

MEMORYVERIFY NAMEPLATE

ONBOARD I/OSIL 3 · F-DEVICE

MANUFACTURERABB

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

ABB ● SAFETY CPU

ABB AC500-S SAFETY CONTROLLER

SM560-S-FD-4

SAFETY CPU

SIL 3 · 1.3 MB · F-DEVICE

MODULE ROLE

SM560-S-FD-4 is an ABB AC500-S safety CPU module with 1.3 MB user program memory and F-Device functionality for up to 4 PROFIsafe networks.

CONFIGURATION NOTE

For SM560-S-FD-4, confirm the terminal base, 24 V DC supply, firmware, safety project, PROFIsafe network assignment, field wiring and mounting conditions before replacement.

👩‍💼
