ABB | SDCS-COM-5 3BSE006567R1 | Drives Module

SDCS-COM-5 3BSE006567R1

ABB Bailey Drives Module

-------------------------------------------------------------

-------------------------------------------------------------

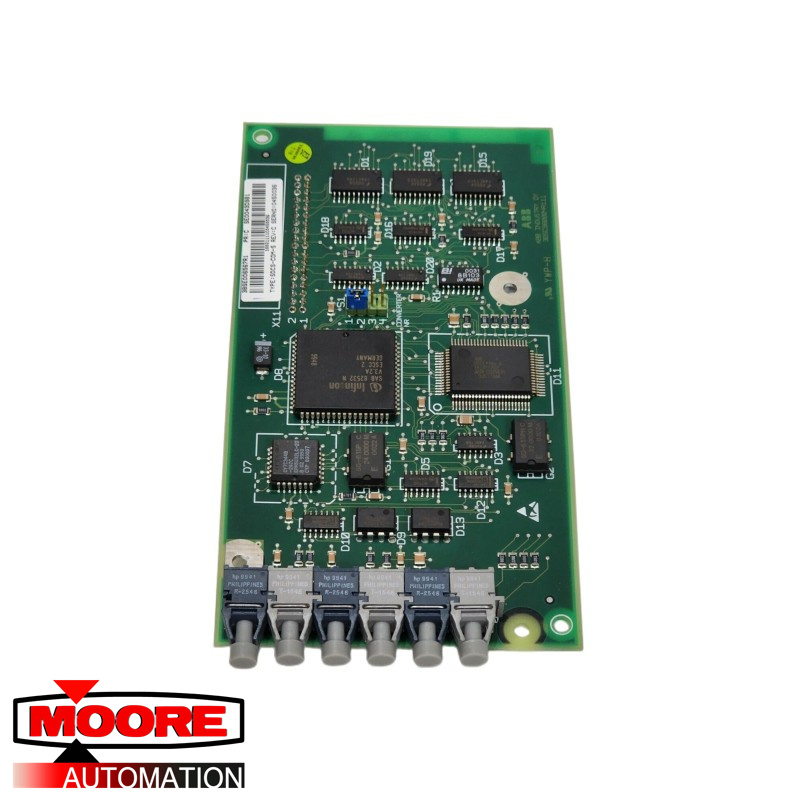

Description: This board is used for communications to DCS 500B converter modules equipped with software 21.xxx for commissioning and maintenance purposes. It consists of 3 different communication channels. All RxD channels (receiver) have blue color, all TxD channels (transmitter) have grey color. If any connections should be made always connect the same color with each other (plug and socket) . Channel 1 is a HDLC channel of 1.5 Mbits/s and is used for the communication with a PC. Channel 2 cannot be used together with software version S21.xxx. Channel 3 is a DDCS channel of up to 4 Mbits/s and is used if a serial link based on PROFIBUS hardware, CS31 hardware or MODBUS hardware should be realized. If one of these possibilities should be used an adaptation module is needed. This channel can only be used with software version S21.1xx (SDCS_CON-1). Please refer to the documentation which is available for the link system needed.
