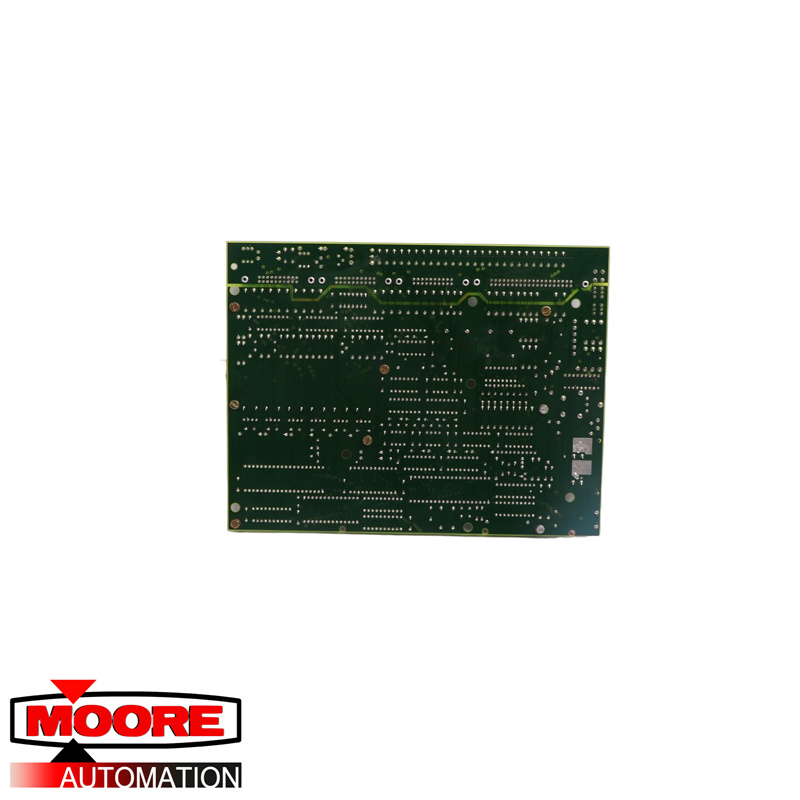

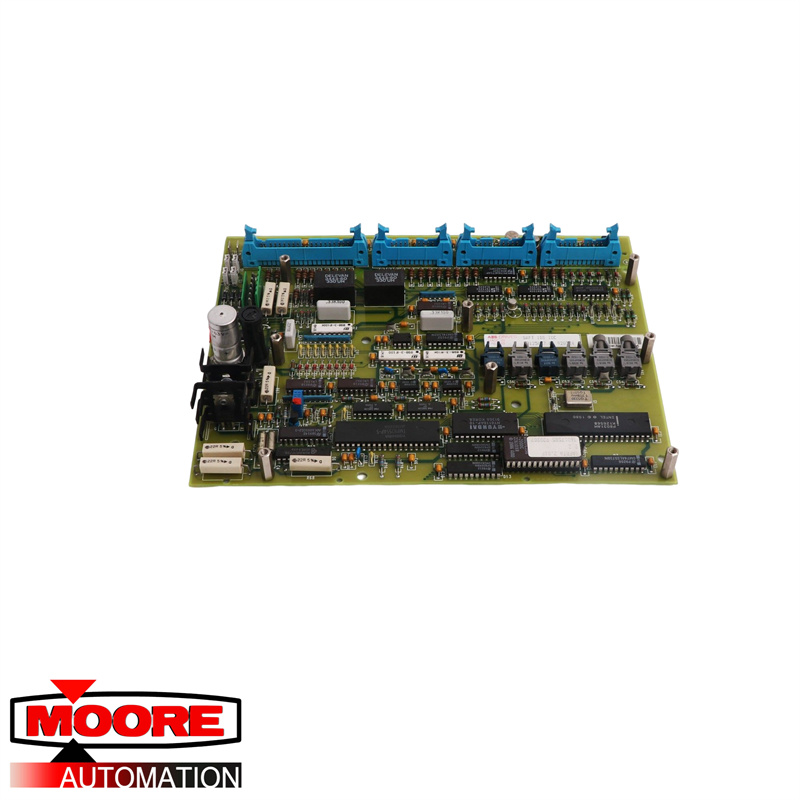

ABB | SAFT188IOC SAFT 188 IOC | I/O Connection Board

Product Description:

The serial link from SAMI Star to SamiMultiNode is connected with two 3 screw terminal block adapters. The cable should be a FKAR-PIG or FLEAK 2 x 2 x 0.5, twisted, pair screened, common screned or of similar type.
There is two different ways to connect the serial link in SAMI Syar depending on the equipment in the convertor.
In a single drive is normally a SAFT 174 TCB and a SAFT 188 IOC card used. With a SAFT 188 IOC it is only possible to use channel 2 for the serial link.
In a sectional drive is normally a SAFT 189 TSI card used. This card has two serial links that can be used for the communication to SamiMultiNode and in most cases channel 1 is used. Channel 2 is usually reserved for the transmission of the torque reference in master - slave configuration.
