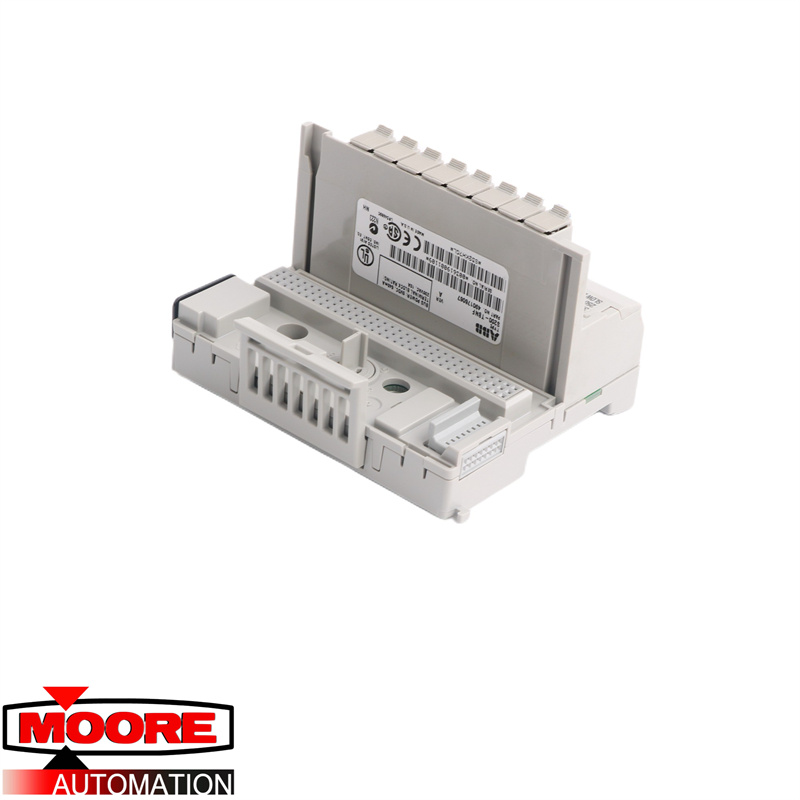

ABB | S200-TBNF | Fused Terminal Base

Product Description:

200-TBNF is intended for connecting an I/O unit and a number of devices to the I/O system. Screw terminals on 200-TBNF are well insulated and can be used for connection of units which allows both +24 V DC and 230 V AC connections. This unit is primarily for units with eight inputs or outputs. 200-TBNF is equipped with two screw terminal rows. The upper row has ten screw terminals, where terminal 16 and 33 are dedicated for 0 V DC and even numbered terminals for input/output signals from a device. This row is equipped with holders for eight fuses connected in series to the eight channels on the top row. The unit is delivered with 3 A fuses, primarily intended for 200-OW8. The lower row consists of ten screw terminals, where terminals 34 and 51 are for +24 V DC connection and odd numbered terminals for input/output signals from a device.
