ABB RLM01 3BDZ000398R1 Redundancy Link Module

Technical Specifications for RLM01 3BDZ000398R1

-------------------------------------------------------------

Product Description

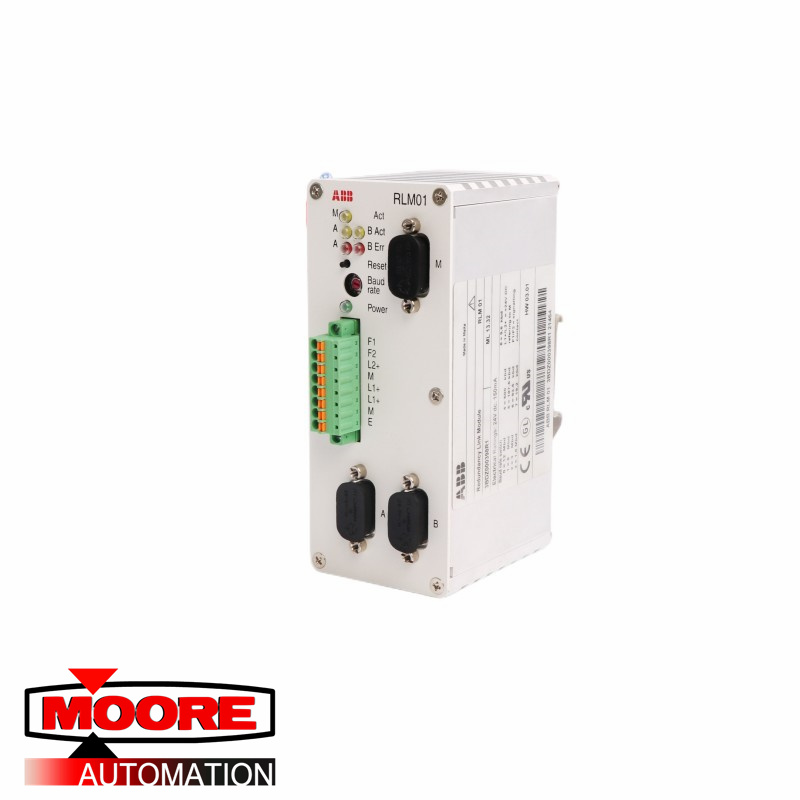

ABB  RLM01 3BDZ000398R1  Redundancy Link Module
RLM 01 converts one simple, non-redundant Profibus line into two reciprocally redundant lines A/B. The module works bidirectionally, which means that all three interfaces can receive and transmit data. You can position the module directly after a master, before a bus segment with several slaves or before an individual slave. PROFIBUS stations with redundant couplers [K] can be directly connected to the PROFIBUS set redundant by RLM 01. Stations with only one interface can be optionally assigned to the A or B line. Each RLM 01 PROFIBUS interface can serve up to 31 PROFIBUS stations. Using repeaters [R] and media converters [O/E] makes it possible to increase the length of the PROFIBUS lines and the number of stations.
• Conversion: Line M <=> Lines A/B
• Use on PROFIBUS DP/FMS lines

• Automatic line selection

• Transmission rate 9.6 kBit/s .... 12 MBit/s
• Monitoring of communication

• Repeater functionality
• Redundant power supply
• Status and error display
• Monitoring of the power supply
• Potential-free alarm contact
• Simple assembly on DIN mounting rail
