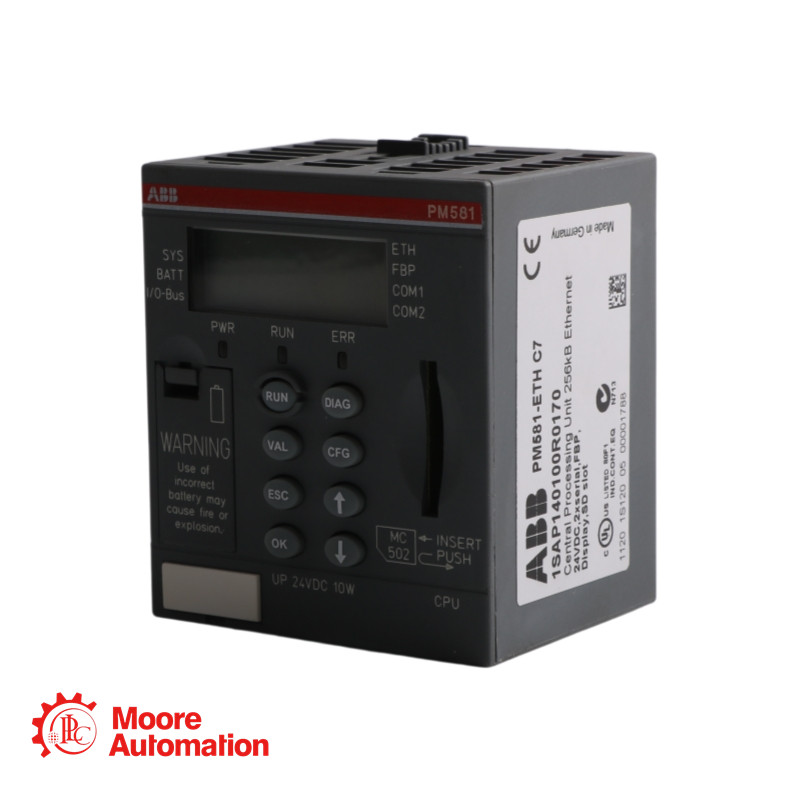

ABB PM581-ETH 1SAP140100R0170 CPU Module

PM581-ETH 1SAP140100R0170

Overview

Specifications

PM581ETH:AC500,Prog.Log.Controller 256k 24VDC,ETHERNET,2xRS232/485,FBP SD-Card Slot,LCD Display

Fieldbus Interface Type:Ethernet TCP/IP
I/O Option:CPU with Local IO - on I/O-Bus
Maximum Number of Analog I/Os:160AI, 160AO Local, max. 10 expansion modules
Maximum Number of Digital I/Os:320DI, 240DO/DC Local, max. 10 expansion modules
Maximum Operating Altitude Permissible:2000 m
Memory Size User Data:416 kB
Memory Size User Program:256 kB
Memory Type User Data:Flash EPROM
Power Supply:24 V DC
Primary Voltage:24 V DC

PM581-ETH 1SAP140100R0170

Question

Answer

What are the key memory specifications?

What are the key memory specifications?
User Program Memory: 256 kB
User Data Memory: 416 kB
Memory Type: Flash EPROM for data, with non-volatile RAM and support for an SD card for additional storage and project handling

Can I update the firmware?

Yes, the firmware can be updated online using the ABB software suite via the Ethernet interface.

Does the PM581-ETH support redundancy?

While the PM581-ETH itself is not a hot-standby redundant CPU, it can be integrated into larger system architectures that utilize redundancy, particularly in combination with other PM5xx series CPUs and specific configurations.
