ABB NWIO-01 64168533 Watchdog and Digital I/O Option Unit

ABB · WATCHDOG & DIGITAL I/O OPTION UNIT

NWIO-01 64168533

The NWIO-01 64168533 is an ABB Watchdog & I/O digital I/O option unit. ABB's AC 800M DriveBus manual identifies NWIO-01 with two digital inputs, two digital outputs, and watchdog logic supervising AC 800M and CI858 software. Match the complete NWIO-01 64168533 marking to the installed unit and system documentation before ordering.

MANUFACTURERABB

SYSTEMAC 800M DriveBus

MODULE TYPEWatchdog & I/O

REFERENCEABB MANUAL

MANUFACTURERABB

PRODUCT TYPEWatchdog & I/O digital I/O option unit

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATION● Complete ABB nameplate reference required

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

ABB ● WATCHDOG & DIGITAL I/O OPTION UNIT

ABB AC 800M DRIVEBUS OPTION UNIT

NWIO-01 64168533

MODEL IDENTIFICATION

Exact label · AC 800M DriveBus system · CI858 interface · I/O wiring

PRODUCT ROLE

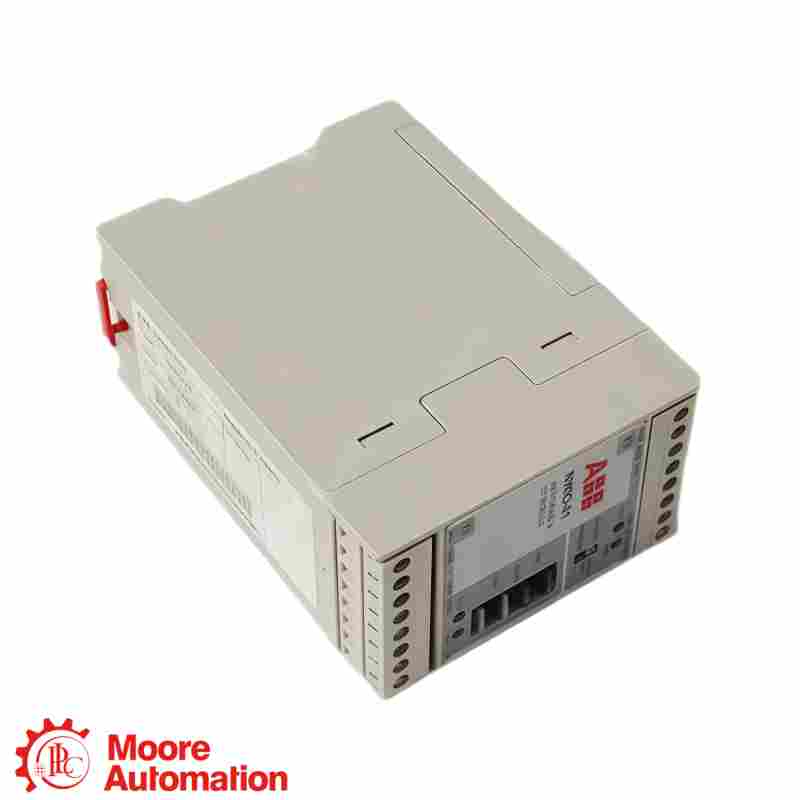

NWIO-01 64168533 is an ABB Watchdog & I/O digital I/O option unit. ABB's AC 800M DriveBus manual identifies NWIO-01 as a Watchdog & I/O digital I/O option unit with two digital inputs and two digital outputs. The watchdog supervises CI858 application software, dual-port-memory communication, the CI858 operating system and optical I/O ring communication.

INSTALLATION CHECK

Confirm NWIO-01 64168533, the complete unit label, input-voltage selection, digital I/O wiring, DO2 watchdog-mode selection, optical I/O ring connection and installed CI858 configuration before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

NWIO-01 / AC 800M DriveBus family

NWIO-01 64168533

Identification data at a glance

ABB's AC 800M DriveBus manual identifies NWIO-01 as a Watchdog & I/O digital I/O option unit with two digital inputs and two digital outputs. The watchdog supervises CI858 application software, dual-port-memory communication, the CI858 operating system and optical I/O ring communication.

MODEL SERIESNWIO-01

ARTICLE / REFERENCE64168533

SYSTEM INTERFACEAC 800M DriveBus / CI858

DOCUMENTVERIFY EXACT DATA

Exact-reference verificationMatch the complete NWIO-01 64168533 marking, input-voltage selection, I/O wiring and installed AC 800M DriveBus / CI858 configuration before ordering.

GENERAL INFORMATION −

BrandABB

Complete referenceNWIO-01 64168533

Product typeWatchdog & I/O digital I/O option unit

Digital inputs2 · 24 VDC or 115/230 VAC

Digital outputs2 · DO2 selectable for watchdog operation

Watchdog supervisionCI858 software and optical I/O ring

Function blocksNWIO1DI and NWIO1DO

Watchdog time constant1 s factory setting · 0.2 s with jumper X1

IDENTIFICATION & COMPATIBILITY ＋

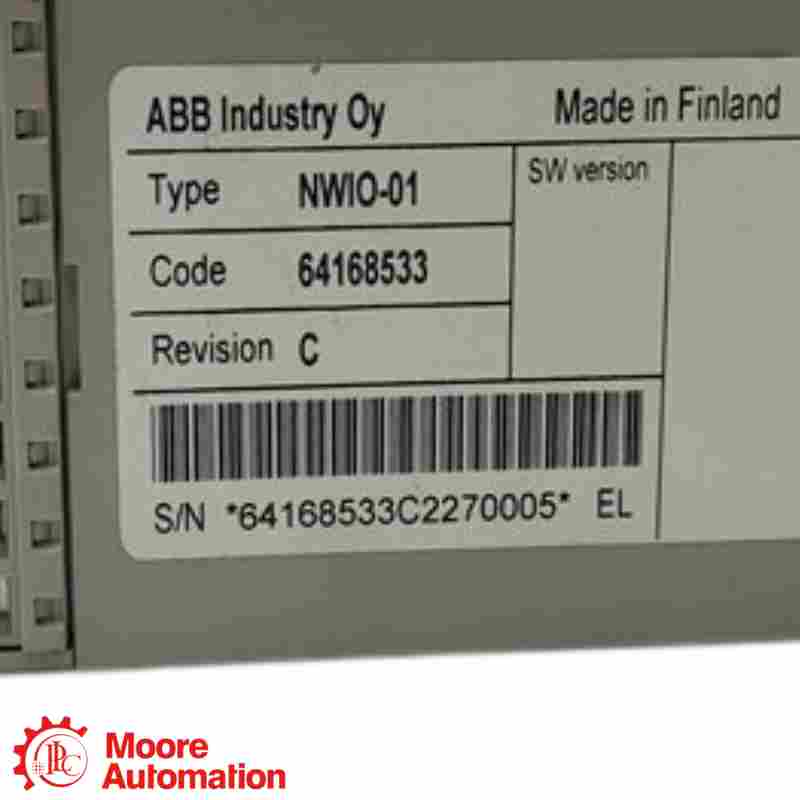

Label evidenceComplete NWIO-01 64168533 marking as supplied

System evidenceInstalled AC 800M DriveBus / CI858 and optical I/O ring configuration

Replacement limitDo not substitute without complete marking, input selection, I/O wiring and system confirmation

INSTALLATION & ORDERING ＋

Before ordering or replacement, provide the complete marking, nameplate photographs, quantity, input-voltage selection, I/O wiring and installed AC 800M DriveBus / CI858 configuration.

Source: ABB AC 800M DriveBus manual 2PAA113566-600 documents NWIO-01 functions and I/O configuration; article number 64168533 must still be matched to the supplied unit label.

FAQ

NWIO-01 64168533 Technical, Installation and Ordering FAQ

What ABB product is NWIO-01 64168533?−

NWIO-01 64168533 Watchdog & I/O digital I/O option unit. ABB's AC 800M DriveBus manual identifies NWIO-01 as a Watchdog & I/O digital I/O option unit with two digital inputs and two digital outputs. The watchdog supervises CI858 application software, dual-port-memory communication, the CI858 operating system and optical I/O ring communication.

How should the markings be verified for NWIO-01 64168533?＋

NWIO-01 64168533 NWIO-01 is the ABB model name for the Watchdog & I/O unit. The supplied 64168533 article marking must be checked on the physical label because ABB manual 2PAA113566-600 does not decode that article number.

Which digital I/O channels are provided by NWIO-01 64168533?＋

NWIO-01 64168533 NWIO-01 64168533 provides two digital inputs selectable for 24 VDC or 115/230 VAC and two digital outputs.

What does the watchdog supervise on NWIO-01 64168533?＋

NWIO-01 64168533 The watchdog supervises the CI858 application program, dual-port-memory communication, the CI858 operating system and communication on the optical I/O ring.

How is digital output DO2 configured on NWIO-01 64168533?＋

NWIO-01 64168533 DO2 can operate as a normal software-controlled digital output or as a watchdog output. Confirm the top slide-switch setting and the WD_SEL signal before replacement.

Which function blocks operate NWIO-01 64168533?＋

NWIO-01 64168533 NWIO1DI reads the digital inputs and watchdog status; NWIO1DO writes the digital outputs and selects the DO2 operating mode.

What must be confirmed before ordering NWIO-01 64168533?＋

NWIO-01 64168533 Provide the complete NWIO-01 64168533 label, quantity, clear nameplate photographs, input-voltage selection, I/O wiring, watchdog setting and installed AC 800M DriveBus / CI858 configuration.
