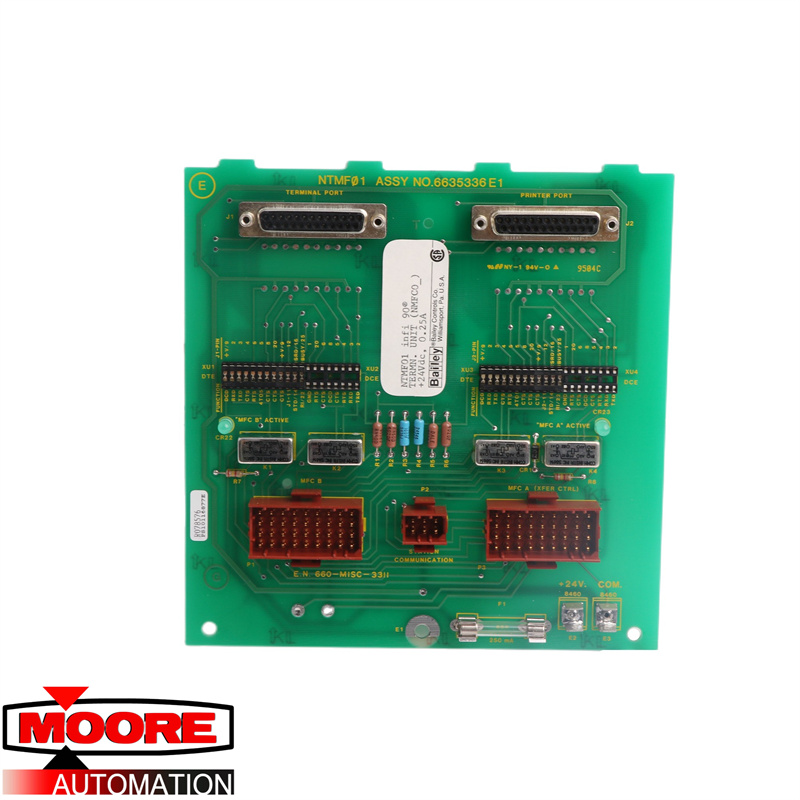

ABB | NTMF01 | Multi-Function Controller Termination Unit

Product Description:

Termination units provide a connection from the plant equipment to the INFI 90® process modules. The NTMF01 Multi-Function Controller Termination Unit terminates a multi-function controller, INFI-NET® to computer transfer module, Plant Loop to Plant Loop transfer module or Plant Loop to computer transfer module. The NTMF01 Multi-Function Controller Termination Unit provides a termination point for two separate RS-232-C ports plus a serial link to connect a control station through an NTCS04 Control I/O Termination Unit. This product instruction explains how to install and use the NTMF01 Multi-Function Termination Unit.
The NTMF01 Multi-Function Controller Termination Unit (TMF) terminates two RS-232-C ports for the IMMFC03 Multi-Function Controller, INICT01 INFI-NET to Computer Transfer Module, INPPT01 Plant Loop to Plant Loop Transfer Module and INPCT01 Plant Loop to Computer Transfer Module. When terminating an IMMFC03 module (or redundant IMMFC03 modules), it enables the IMMFC03 module to communicate to a computer, terminal, printer or sequential events recorder through the serial ports .
