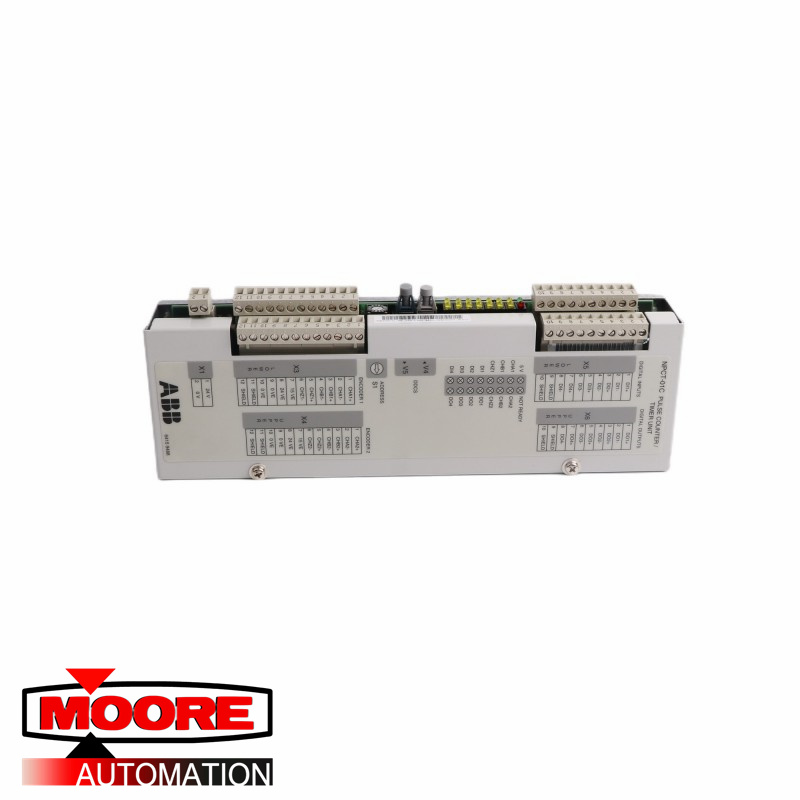

ABB | NPCT-01C 64009486D | Pulse Count/Timer

Product Description:

The laying head consists of a spinning structure containing a spiral shaped pipe for discharging the rod onto the cooling conveyor. The cooling conveyor consists of many rolls evenly spaced out with a gap between adjacent rolls and if the head of the first coil falling on the conveyor enters a inter-roll gap the risk of head cobble is high. Positioning of the laying head is adjusted so that head end of the rod meets with the correct position of the exit point of laying head conveying pipe, thereby ensuring the correct position of the head of the first coil on the conveying rolls, thereby reducing the risk of cobbles.
To implement this positioning, an AC80 controller is used to directly control the drive. An encoder is installed at the non-drive end of the laying head motor with its pulse signals connected to the interface board for the drive for speed feedback, and also connected to the NPCT-01C interface board of AC80 for position detection along with a proximity switch used for the synchronization of the counter.
