ABB INFI 90 · RTD ANALOG SLAVE

IMASM03

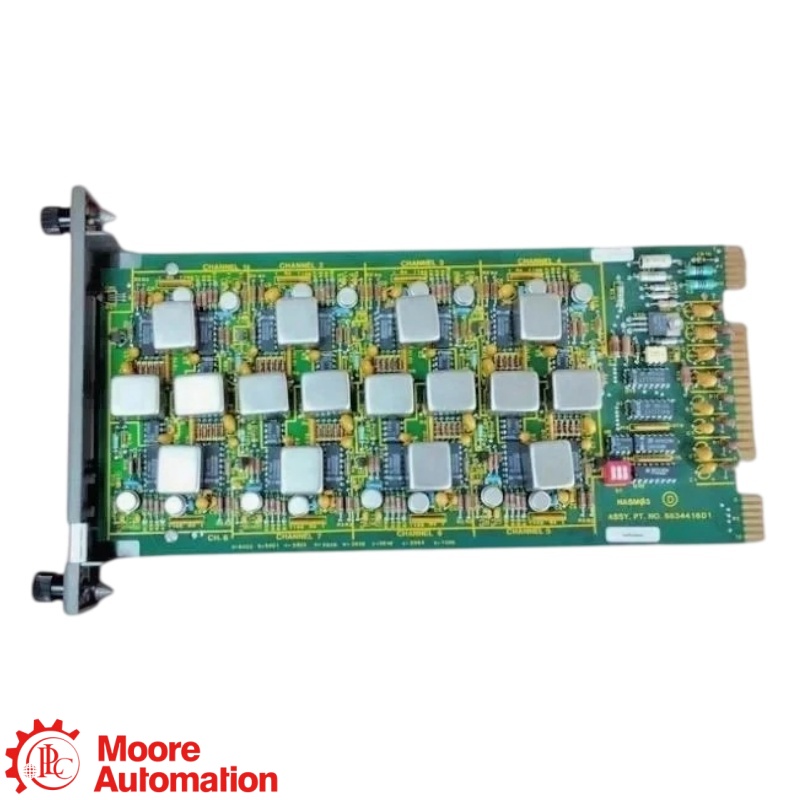

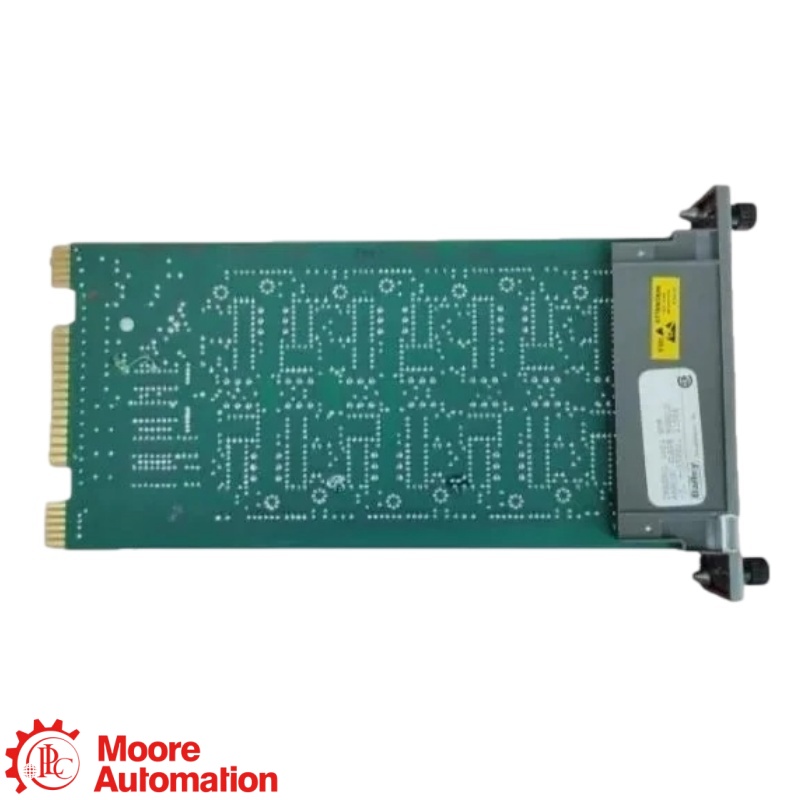

ABB IMASM03 is an eight-channel 100 Ω RTD analog slave module used in an IMAMM03 analog master group for temperature acquisition in installed Bailey INFI 90 systems.

TYPERTD slave
CHANNELS8
SENSOR100 Ω RTD
MASTERIMAMM03
MANUFACTURERABB
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ↗RTD ANALOG SLAVE MODULE
BAILEY INFI 90

IMASM03

8 CHANNELS · 100 Ω RTD · IMAMM03 GROUP

ABB IMASM03 is an eight-channel 100 Ω RTD analog slave module used in an IMAMM03 analog master group for temperature acquisition in installed Bailey INFI 90 systems.

PRODUCT ROLE

IMASM03 conditions eight resistance-temperature inputs and passes their data through the slave-expander arrangement to the IMAMM03 analog master for conversion, processing and control-system reporting.

CONFIGURATION NOTE

Confirm the IMASM03 revision, slave address, IMAMM03 master group, eight 100 Ω RTD circuits, sensor curve, lead-wire configuration, termination unit, cable and channel mapping before replacement.

👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
MODEL ANALYSIS

IMASM03 model identification

IMASM03
Complete model ABB RTD Analog Slave Module
VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

ABB IMASM03 ↗
Product Identification−
ModelIMASM03
FunctionRTD analog slave
Input count8
Input type100 Ω RTD
Required group masterIMAMM03
System familyBailey INFI 90 installed base
System Role and Function＋
Product entityABB IMASM03
Functional roleIMASM03 conditions eight resistance-temperature inputs and passes their data through the slave-expander arrangement to the IMAMM03 analog master for conversion, processing and control-system reporting.
System contextBailey INFI 90
Product typeRTD Analog Slave Module
Compatibility Conditions＋
Compatibility check 1Operate within the correct IMAMM03 master group
Compatibility check 2Match slave address and group position
Compatibility check 3Confirm RTD curve and lead-wire arrangement
Compatibility check 4Verify termination unit and cable identity
Installation Requirements＋
Installation check 1Record address switch settings
Installation check 2Isolate and label RTD conductors
Installation check 3Check sensor resistance and lead continuity
Installation check 4Validate temperatures, scaling and alarms after startup
Lifecycle and Replacement＋
Lifecycle note 1Legacy Bailey analog slave architecture
Lifecycle note 2Exact replacement retains the existing master group
Lifecycle note 3A modern universal input is an engineered migration
Lifecycle note 4Preserve calibration, scaling and alarm records
Documentation Boundary＋
ReferenceBailey Controls instruction I-E96-205A for IMAMM03 with IMASM01/02/03/04 slaves and ABB installed-base service listings.
Article / identityIMASM03
Configuration verificationConfirm the IMASM03 revision, slave address, IMAMM03 master group, eight 100 Ω RTD circuits, sensor curve, lead-wire configuration, termination unit, cable and channel mapping before replacement.
Data limitationUse the exact nameplate, revision and current controlled ABB or site documentation when values differ.
Source: Bailey Controls instruction I-E96-205A for IMAMM03 with IMASM01/02/03/04 slaves and ABB installed-base service listings.
FAQ

Questions Buyers Ask Most

What sensor type does IMASM03 accept?−
ABB Bailey IMASM03 is associated with eight 100 Ω RTD inputs; confirm the installed RTD curve, wiring method and engineering-unit configuration for every channel.
Can IMASM03 operate without IMAMM03?＋
No. IMASM03 is a slave module intended for an IMAMM03 analog master group, so master compatibility, slave address and expander-bus position are required conditions.
Is IMASM03 the same as IMASI03?＋
No. IMASM03 belongs to an older analog master/slave group for RTDs, while IMASI03 is a separate universal analog input slave design; their architecture, wiring and configuration differ.
How many RTD channels are handled by IMASM03?＋
IMASM03 handles eight RTD input channels within its compatible master group; the termination and channel assignments must match the installed cabinet documentation.
Can SPASI23 replace IMASM03 directly?＋
No. A modern universal input such as SPASI23 can support an engineered migration, but termination, channel mapping, scaling, alarms and controller configuration must be redesigned and tested.
What must be checked before replacing IMASM03?＋
Confirm the exact revision, slave address, IMAMM03 master, slot, termination unit, cable, eight RTD circuits, sensor curves, lead wiring, scaling and alarm setpoints.
