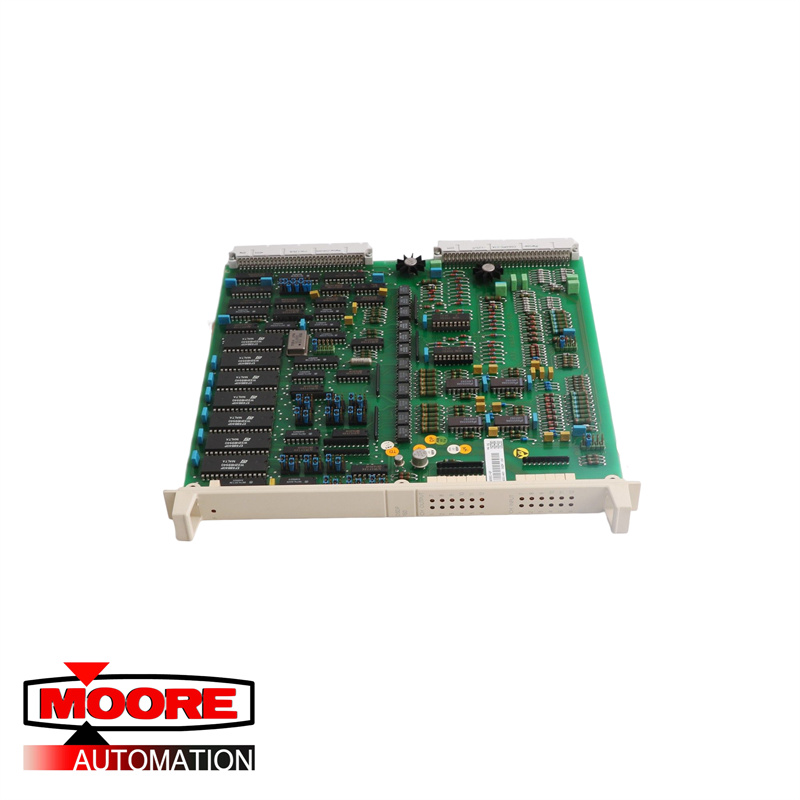

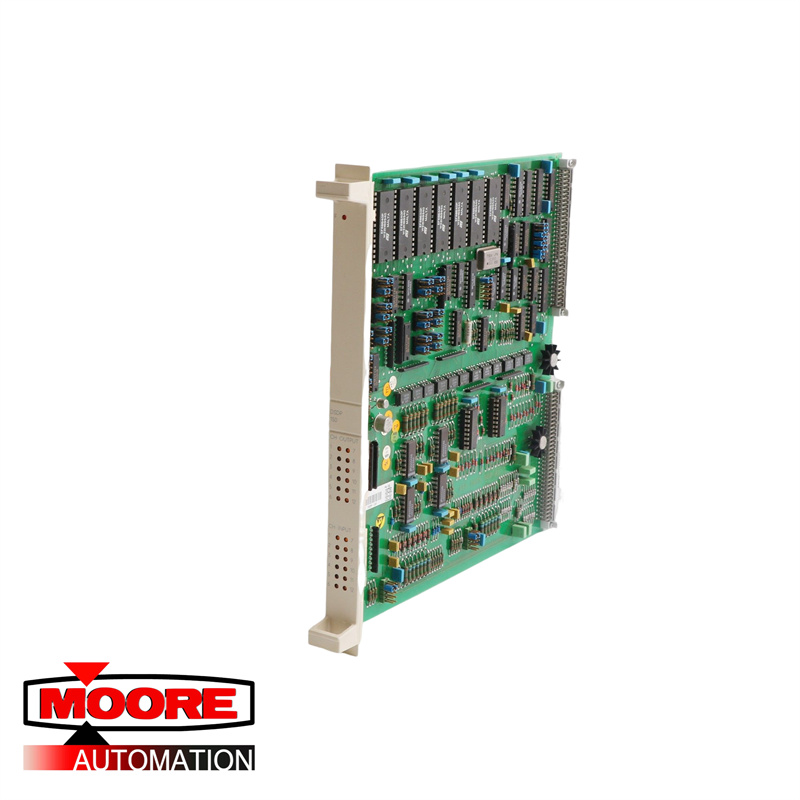

ABB | DSDP150 5716-0001-GF | Digital Input Module

Product Description:

DSDP 150 Pulse Encoder Input Unit for 12 V DC used for both pulse counting and frequency measurement and has inputs which can be connected to pulse generators with a frequency of up to 10 kHz. Twelve channels 5/12/24 V d.c. for pulse and frequency measurement up to a maximum of 10 kHz. Pulse or frequency measurement is selected optionally for each channel pair. To obtain acceptable accuracy, the frequencies which the two channels in a channel pair are to measure should be fairly similar. The address jumpering of the positioning board and the I/O address given on the PC element POS-A are different. The positioning board is inactive. The I/O address given on the PC element POS-A is odd. The address jumpering of the positioning board and the I/O address given on the PC element POS-O are different. The positioning board is inactive. The I/O address given on the PC element POS-O is odd.
