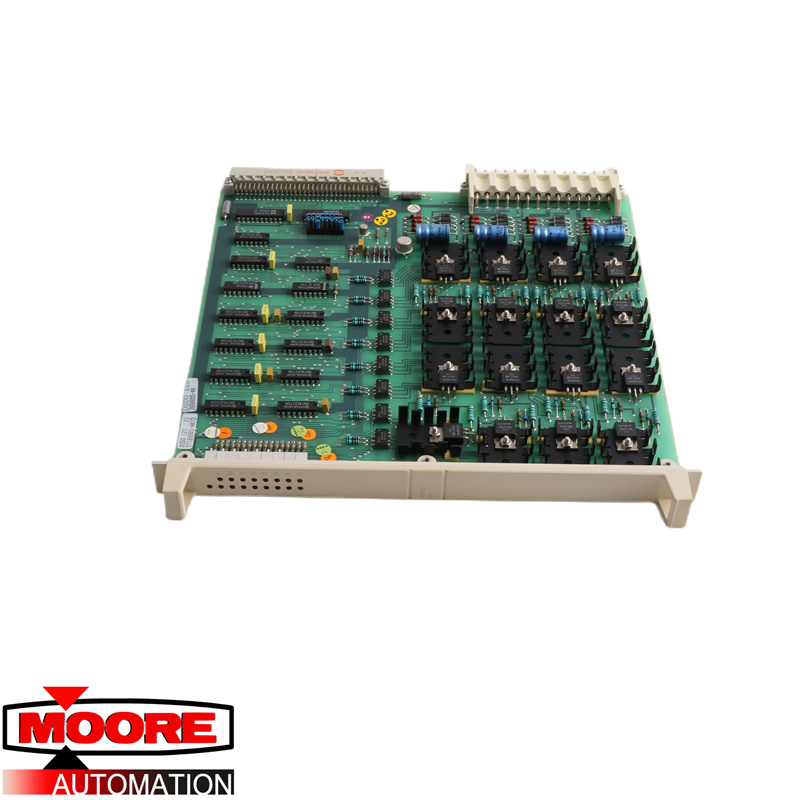

ABB | DSDO120 57160001-AK | Digital Output Module

DSDO120 57160001-AK

ABB Bailey Digital Output Module

-------------------------------------------------------------

-------------------------------------------------------------

Description: The DSDO120 57160001-AK Digital Output Module is 16 channels, 24/48 V d.c, transistor output, max. 1 A. Static outputs for 24 V - 48 V d.c. (transistor outputs). The board is designed to withstand a load up to 1 A per channel. The supply is divided in the connection unit into two groups of eight channels each. Each has a common supply and 0V. The outputs are galvanically isolated from the internal electronics.
• Input units are available for standard voltage or current signals, single-ended or differential, with or without live zero.
• An isolation amplifier is available in the form of a connection unit. The isolation voltage is 3 kV.
• Some board has reference channels for automatic calibration and testing.
• The data base is updated by scanning, with cycle times normally selected from the range 100 ms to 600 s.
• Optional software filtering, square-root linearization and deadband limits for updating can be selected.
• Optional redundancy. Two types of boards can be duplicated to achieve increased availability.
• A board is offered which combines analog inputs and analog outputs (loop dedicated I/O).
