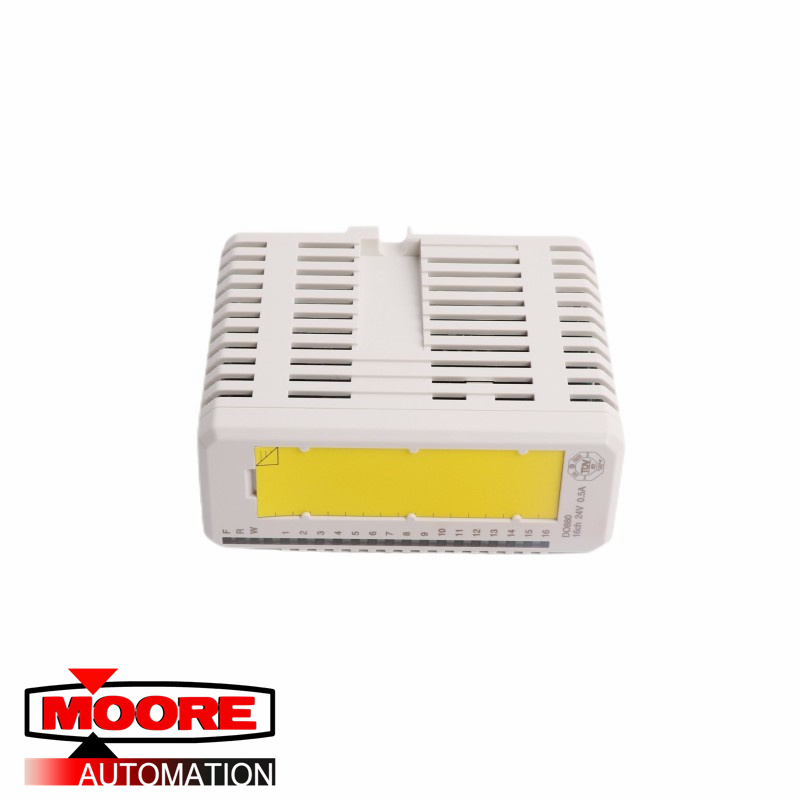

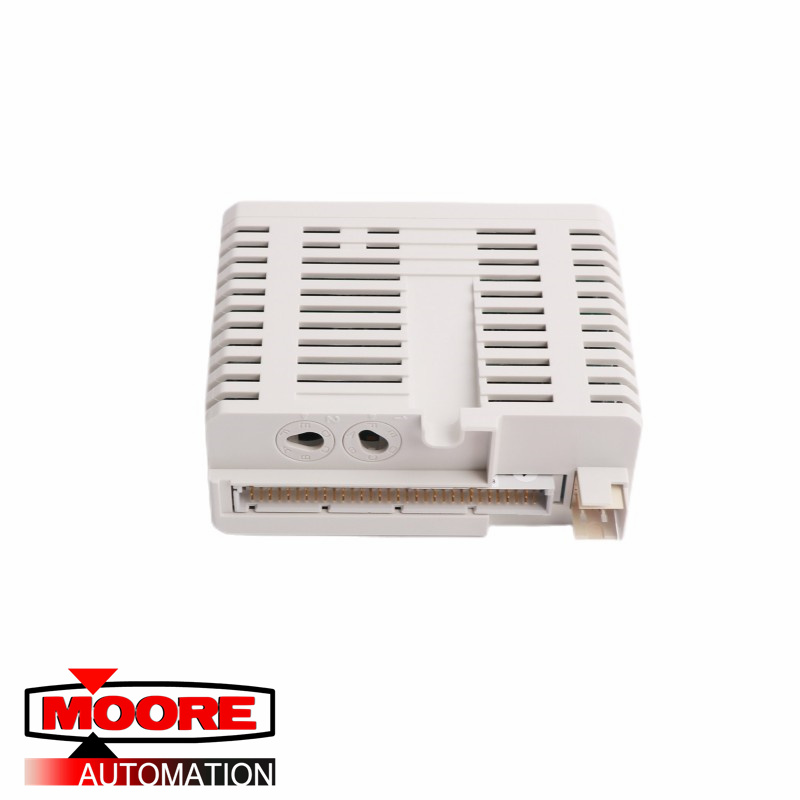

ABB DO880 3BSE028602R1 Digital Output Module

DO880 3BSE028602R1

ABB Bailey Digital Output Module

-------------------------------------------------------------

-------------------------------------------------------------

Product Description

The DO880 is a 16 channel 24 V digital output module for single or redundant application. The maximumcontinuous output current per channel is 0.5 A. The outputs are currentlimited and protected against over temperature. Each output channel consists of a current limited and over temperature protected high side driver, EMC protection components, inductive load suppression, output state indication LED and an isolation barrier to theModulebus.
-16 channels for 24 V d.c. current sourcing outputs in one isolated group
-Redundant or single configuration
-Loop monitoring, supervision of short and open loadwith configurable limits (see table Table 97).
-Diagnostic of output switches without pulsing on outputs
-Advanced on-board diagnostics
-Output status indicators (activated/error)

Benefits for you
