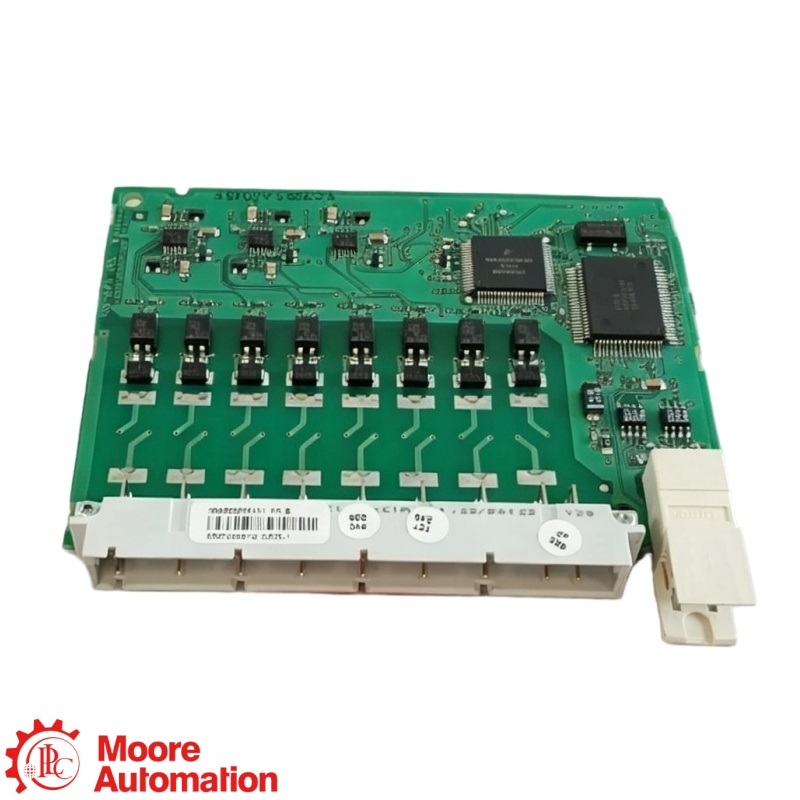

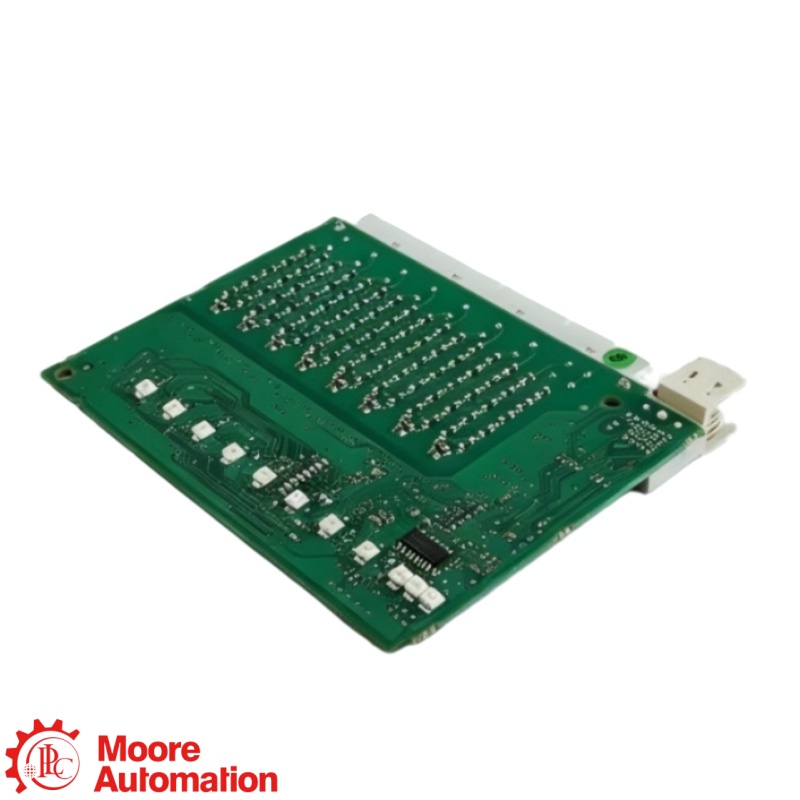

The ABB DI825 is an S800 I/O digital input module with eight individually isolated 125 V DC input channels, status indication and sequence-of-event capability.
8 isolated digital inputs · 125 V DC nominal · 3.0 mA at 125 V · SOE capability.
DI825 receives eight individually isolated 125 V d.c. field input signals and reports channel status and sequence-of-event data to the S800 I/O system.
Confirm article number 3BSE036373R1, 125 V DC field supply, input threshold, voltage-supervision arrangement, matching MTU, channel wiring and SOE configuration before replacement.
Source: ABB DI825 Data Sheet, article number 3BSE036373R1.
Official ABB manufacturer-reference information for DI825, article number 3BSE036373R1.
The ABB DI825 is an S800 I/O digital input module with eight individually isolated 125 V DC input channels, status indication and sequence-of-event capability. Confirm article number 3BSE036373R1, 125 V DC field supply, input threshold, voltage-supervision arrangement, matching MTU, channel wiring and SOE configuration before replacement.
OFFICIAL DATASHEET ↗Send the complete model, article number, quantity, revision, installed system and your technical or purchasing question.
Source: ABB DI825 Data Sheet, article number 3BSE036373R1.
ABB ↗ DI825 is an 8-channel digital input module that receives eight individually isolated 125 V d.c. field input signals and reports channel status and sequence-of-event data to the S800 I/O system. Its configuration must remain aligned with the installed hardware, wiring and controller project.
Eight individually isolated 125 V d.c. digital input channels.
State-1 input range is 71 to 156 V with 3.0 mA input current at 125 V.
Supported when configured in the controller project.
Use TU811V1, TU813, TU831V1, TU839 or TU851 with matching wiring and current limiting.
Receives eight isolated 125 V DC field input signals for the controller project.
Channels 1 and 8 can supervise the associated field-voltage groups when wired and configured accordingly.
Provides field wiring and mechanical connection for the module.
Supplies the input stages and transfers data within the S800 I/O station.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
