Brand :
ABBPart Number :
DI821 3BSE008550R1Weight :
0.18 kgDimension :
4.5x10.5x12cmCountry of Origin :
SwedenHS Code :
8537101190Description :
Digital Input - 230VProduct Description:

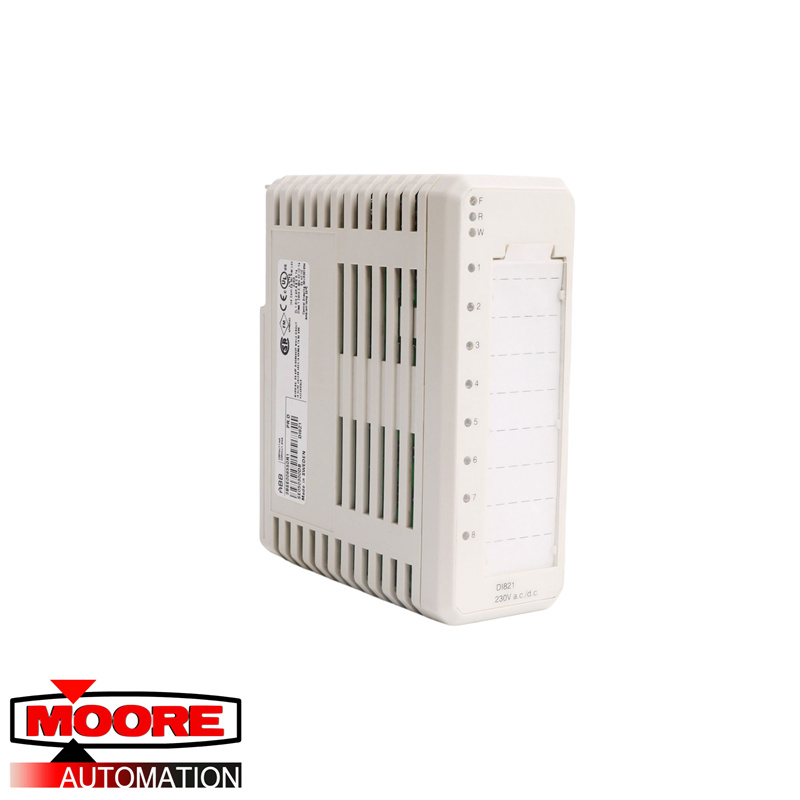

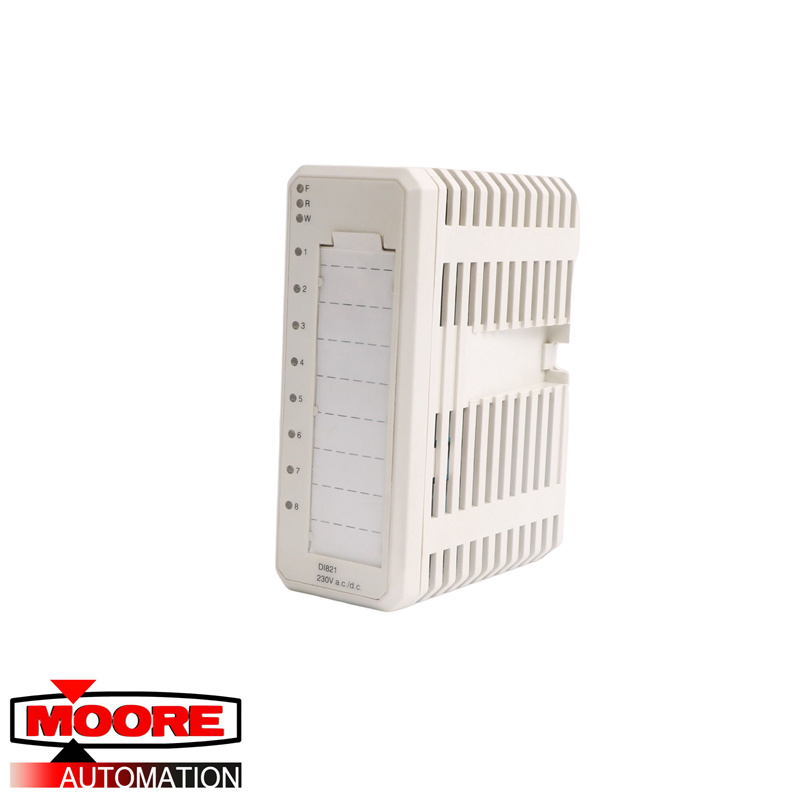

The DI821is a 8 channel, 230 V a.c./d.c, digital input module for the
S800 I/O. This module has 8 digital inputs. The ac inputvoltage
range is 164 to 264 V and the input currentis 11 mA at 230 V a.c. The
d.c. inputvoltage range is 175 to 275 volt and the input currentis 1.6
mA at 220 V d.c. The inputs are individuallyisolated.
Everyinput channel consists of currentlimiting components, EMC
protection components, input state indication LED, optical isolation
barrier and an analog filter (6 ms).
Channel1 can be used as voltage supervision inputfor channels 2 -
4, and channel 8 can be used as voltage supervision inputfor
channels 5 - 7. If the voltage connected to channel1 or 8 disappears,
the error inputs are activated and the Warning LED turns on. The
error signal can be read fromtheModuleBus.
Welcome to contact the sales manager:
Sales manager : John Yang
Mobile / WhatsApp : +86 18150117685
Email: sales3@askplc.com
Skype : sales3@askplc.com
FEATURES
We can help you find more automation spare parts, whether it's rare or discontinued , Amikon is committed to offer you with the best price so that you could in efficient way possible.
We always strive for excellence and achieve better, no matter the customer service, productivity or delivery speed.
