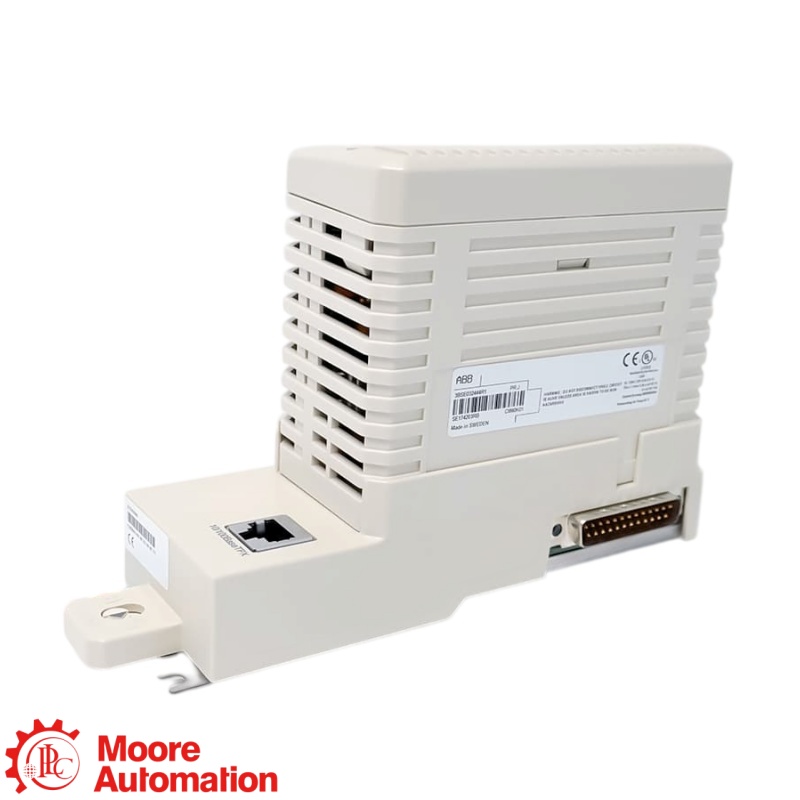

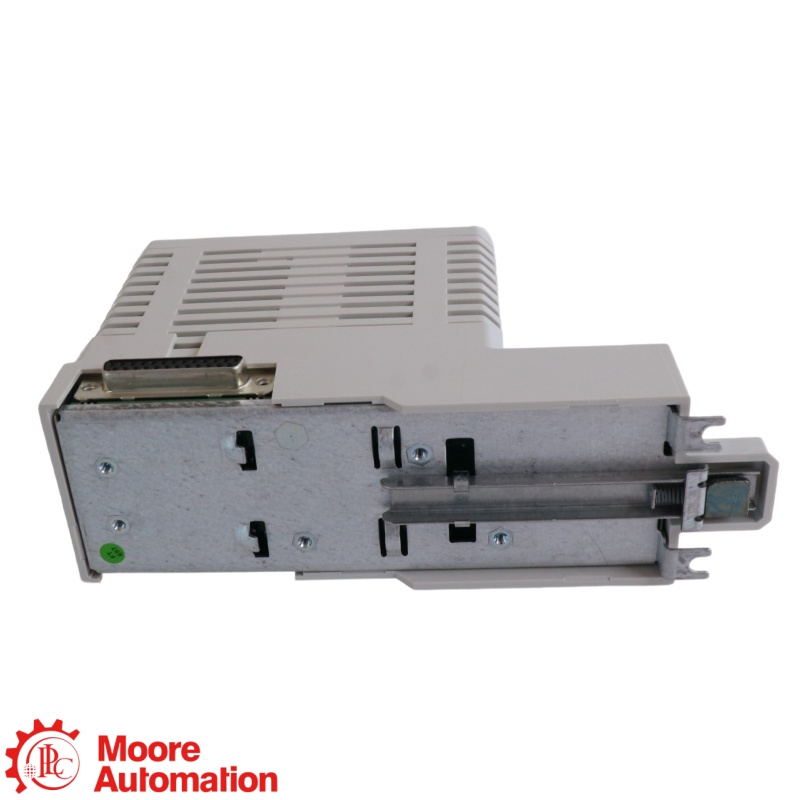

AC 800M SATT I/O COMMUNICATION INTERFACE

CI865K01

3BSE040795R1

Satt I/O master · heritage 19-inch rack and Series 200 I/O · up to 31 distributed I/O systems · CEX Bus interface.

PRODUCT ROLE

CI865K01 connects heritage Satt 19-inch rack I/O and Series 200 I/O to an AC 800M controller through the CEX Bus and performs the distributed I/O scanning as the network master.

CONFIGURATION NOTE

Confirm article number 3BSE040795R1, the included TP865 baseplate, CEX Bus position, BNC network wiring, legacy I/O mapping, AC 800M project data and installed System 800xA version before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the CI865K01 model is structured

CI865

Communication interface

K01

Complete kit variant

VERIFIED ABB MANUFACTURER DATA

Technical Specifications

ABB CI865K01 ↗

General Information−

BrandABB

ModelCI865K01

Article number3BSE040795R1

Product typeSatt I/O communication interface kit

Controller familyAC 800M

Kit compositionCI865 interface and TP865 baseplate

Baseplate width60 mm

Satt I/O Interface Data+

Network roleMaster interface for heritage Satt I/O

Supported I/O19-inch rack I/O and Series 200 I/O

Scanning capacityUp to 31 distributed I/O systems

Network connectorBNC

Line redundancyNot supported

Module redundancyNot supported

Hot swapSupported

System Capacity and Configuration+

CI865 units on CEX BusUp to four per AC 800M controller

High Integrity controllerNot supported

Required baseplateTP865 is included in the CI865K01 kit

Project requirementLegacy I/O mapping must match the AC 800M project

Interface limitationDedicated Satt I/O bridge; not a general-purpose network interface

Power and Installation+

24 V current consumption120 mA typical

Dimensions59 × 185 × 127.5 mm

Weight including baseplate700 g

Ingress protectionIP20

Operating temperature0 to +55 °C

Storage temperature−40 to +70 °C

Corrosion protectionG3 compliant to ISA 71.04

Compatibility and Replacement+

Controller compatibilityAC 800M with a supported System 800xA version

Legacy I/O conditionInstalled rack and Series 200 hardware must match the documented Satt I/O arrangement

CEX Bus conditionPosition and hardware configuration must match the saved project

Network conditionBNC cabling and termination must be verified before energization

Replacement conditionRestore the same I/O mapping, baseplate and controller project data

Source: ABB CI865 Data Sheet and System 800xA product catalog for CI865K01 article number 3BSE040795R1.

FAQ

Questions Buyers Ask Most

What is ABB CI865K01 used for?+

CI865K01 is an AC 800M communication-interface kit that connects heritage Satt 19-inch rack I/O and Series 200 I/O to the controller through the CEX Bus and performs distributed I/O scanning as the network master.

Which parts are included in CI865K01?+

CI865K01 is supplied as a complete kit containing the CI865 communication interface and the 60 mm TP865 baseplate. The complete ABB article number is 3BSE040795R1.

Which legacy I/O systems can CI865K01 connect?+

CI865K01 is intended for Satt 19-inch rack I/O and Series 200 I/O. It is a dedicated bridge for those heritage I/O systems and should not be treated as a general-purpose network interface.

How many distributed I/O systems can CI865K01 scan?+

CI865K01 can handle I/O scanning for up to 31 distributed I/O systems, while an AC 800M controller can use up to four CI865 units on its CEX Bus when the controller and system version support the arrangement.

Does CI865K01 support redundancy and hot swap?+

CI865K01 supports online replacement by hot swap, but line redundancy and module redundancy are not supported. The controller project and legacy I/O mapping must still match the installed hardware after replacement.

Can CI865K01 be used with a High Integrity controller?+

CI865K01 is not approved for use with a High Integrity controller. Confirm the exact AC 800M CPU and installed System 800xA version before procurement or installation.

What must be checked before installing or replacing CI865K01?+

Before work begins, verify the CI865K01 article number, TP865 baseplate, CEX Bus position, 24 V supply, BNC cabling and termination, installed rack and Series 200 I/O hardware, saved I/O mapping and controller project.

What information should be supplied when requesting a quote for CI865K01?+

A useful CI865K01 inquiry includes article number 3BSE040795R1, quantity, hardware revision, installed AC 800M controller, System 800xA version, CEX Bus position, legacy I/O type, network layout and clear nameplate photographs.

CONTACT PRODUCT SPECIALIST

Confirm your CI865K01 system configuration with Frida

Share the complete article number, AC 800M system version, CEX Bus position, TP865 baseplate, BNC wiring, installed legacy I/O arrangement and controller project for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

✉ sales5@mooreplc.com ◉ +86 153 5940 8275

OFFICIAL DATASHEET

ABB CI865K01 Product Information

Official ABB manufacturer-reference information for CI865K01, article number 3BSE040795R1, including the current CI865 data sheet.

CI865K01 Technical Data

The ABB CI865K01 is an AC 800M Satt I/O communication-interface kit containing the CI865 interface and TP865 baseplate. It connects heritage 19-inch rack I/O and Series 200 I/O, scans up to 31 distributed I/O systems and supports hot swap. Confirm article number 3BSE040795R1, CEX Bus position, BNC wiring, legacy I/O mapping, controller project and installed System 800xA version before replacement.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, article number, quantity, hardware revision, installed controller or interface and your technical or purchasing question.

✉ EMAILsales5@mooreplc.com ◉ WHATSAPP+86 153 5940 8275

Source: ABB CI865 Data Sheet and ABB System 800xA product catalog.

ABB SYSTEM RELATIONSHIP

How CI865K01 fits into the ABB AC 800M and Satt I/O system

ABB ↗ is the manufacturer, AC 800M is the controller platform, CI865K01 is the complete communication-interface kit and the connection of heritage Satt I/O through the CEX Bus is its system role.

BRAND / PLATFORMABB · AC 800M

→

COMPLETE MODELCI865K01

→

PRODUCT ROLESatt I/O communication interface

PROTOCOL

ABB Satt I/O

CAPACITY

Up to 31 I/O systems

BASEPLATE

TP865 included

HOT SWAP

Supported

INSTALLATION AND PROCUREMENT

What to confirm for CI865K01

Product Function

connects heritage Satt 19-inch rack I/O and Series 200 I/O to an AC 800M controller through the CEX Bus and performs distributed I/O scanning as the network master.

Complete Identifier

3BSE040795R1

SYSTEM COMPONENTCI865K01SATT I/O COMMUNICATION INTERFACE KIT

Configuration Check

Confirm article number 3BSE040795R1, the TP865 baseplate, supported System 800xA version, CEX Bus position, 24 V supply, BNC cabling and termination, installed legacy I/O arrangement and saved controller project before replacement.

Quotation Details

Provide article number, quantity, revision, installed hardware and application details.
