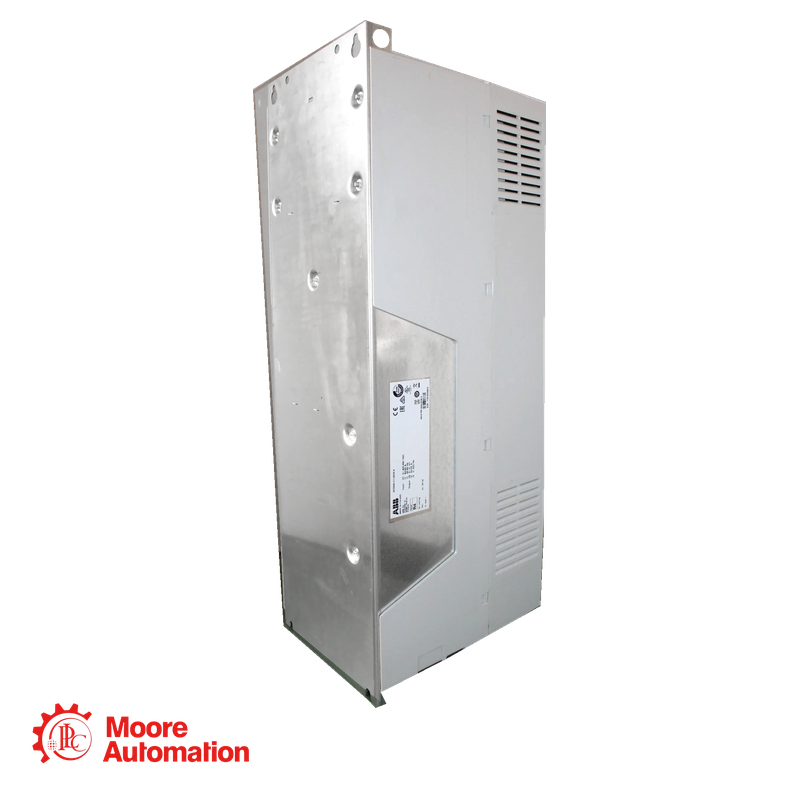

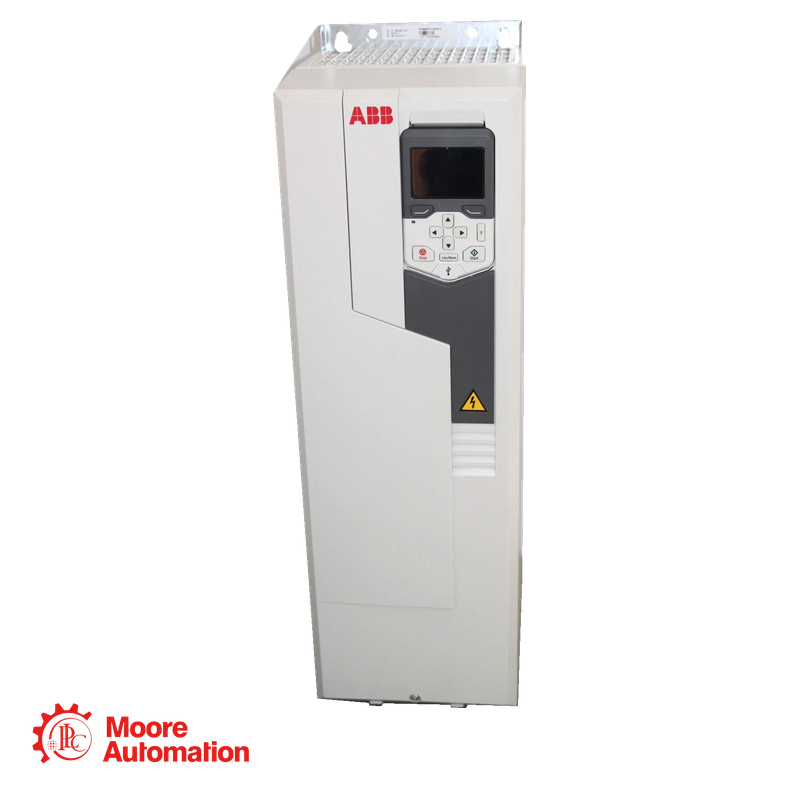

The ABB ACS580-01-062A-4 is a wall-mounted general-purpose AC drive for controlling three-phase motors in industrial and building-service applications
Brand :
ABBPart Number :
ACS580-01-062A-4Weight :
11.8 kgDimension :
20.3x49x22.9 cmCountry of Origin :
SwedenHS Code :
8537101190Description :
General Purpose AC Drive
Contact Frida for ACS580-01-062A-4 Pricing
|
Inquiry Information |
Contact Details |
|
Product Model |
ACS580-01-062A-4 |
|
Inquiry Type |
Price, availability and delivery time |
|
Contact Person |
Frida |
|
|
|
|
Information to Provide |
Required quantity and delivery destination |
Product Overview
The ABB ACS580-01-062A-4 is a wall-mounted general-purpose AC drive for controlling three-phase motors in industrial and building-service applications. Its nominal IEC rating is 30 kW with an output current of 62 A at 400 V. This model uses the R4 frame and is supplied with an IP21 enclosure. It is intended for installation in an indoor electrical environment with sufficient cooling space and protection from condensation, conductive dust and direct water exposure. The drive supports induction, permanent-magnet and synchronous reluctance motors. Standard functions include an assistant control panel, Safe Torque Off, an internal EMC filter and Modbus RTU communication. It can operate as a standalone motor controller or connect to a wider automation system through its standard and optional communication interfaces.
Technical Specifications
|
Parameter |
Specification |
|
Model Number |
ACS580-01-062A-4 |
|
Product Type |
Wall-mounted AC drive |
|
Input Supply |
380–480 V AC, three-phase |
|
Rated Power |
30 kW at 400 V |
|
Rated Output Current |
62 A at 400 V |
|
Frame Size |
R4 |
|
Enclosure Rating |
IP21 |
Benefits
- Adjustable motor speed
- Controlled starting and stopping
- Reduced starting current
- Lower mechanical stress
- Integrated energy monitoring
- Simplified drive commissioning
- Flexible system connectivity
- Wall-mounted installation
Key Highlights
● 30 kW nominal IEC motor rating
● 62 A nominal output at 400 V
● 81 A maximum output current
● 380–480 V three-phase supply
● R4 wall-mounted frame
● Integrated Safe Torque Off
● Standard Modbus RTU interface
● Assistant control panel
Customer Questions and Answers
Customer Question
Engineering Answer
What motor rating is suitable for the ACS580-01-062A-4?
Its nominal IEC rating is 30 kW and 62 A at 400 V. The motor nameplate current, operating torque and application duty must be checked rather than selecting the drive from motor power alone.
What is the heavy-duty rating at 400 V?
ABB specifies 44.6 A with a corresponding motor rating of 22 kW for heavy-duty operation. This rating applies when greater overload capability is required.
How is the drive rated at 480 V?
At 480 V, ABB lists 52 A and 40 hp for light-duty operation. The heavy-duty rating is 40 A and 30 hp, with a published maximum output current of 76 A.
Does the R4 frame include a braking chopper?
No. The standard integrated braking chopper applies to frames R1 through R3. If rapid or repeated stopping is required, the braking solution must be engineered separately according to the motor, load inertia and braking cycle.
What should be checked before commissioning?
Confirm the supply voltage, motor nameplate values, grounding, fuse and cable selection, current limits, speed range, ramp settings, rotation direction, cooling clearance and Safe Torque Off wiring.
Industries Served
Water and Wastewater--The ACS580-01-062A-4 can regulate transfer pumps, circulation pumps and pressure-control equipment within its rated capacity. Matching pump speed to actual flow demand can reduce throttling losses, water hammer and unnecessary full-speed operation.
HVAC and Building Services--The drive can control ventilation fans, cooling-tower fans, blowers and circulation pumps. Variable-speed operation allows the system to respond to changing airflow, temperature or pressure requirements while reducing mechanical control losses.
Food and Beverage Processing--Applications may include process pumps, mixers, agitators and conveyors driven by compatible three-phase motors. Controlled acceleration and deceleration can reduce shock loads and provide steadier movement of products and ingredients.
Material Handling--The unit can be applied to conveyors, feeders and transfer equipment requiring adjustable speed. Correctly configured ramps help reduce belt slip, material movement and stress on couplings, gearboxes and other transmission components.
|
Brand |
ABB |
|
Part number |
ACS580-01-062A-4 |
|
Origin |
Sweden |
|
Shipping Port |
Xiamen，China |
|
Payment |
T/T |
|
Shipment |
DHL,UPS,FEDEX,TNT,EMS,SF |
|
Service |
One-year warranty |
Supply Advantages
✔ In Stock
✔ Worldwide shipping support
✔ Tested before shipment
✔1 Year Warranty
Product Supply & Ordering Information
Parameter
Ordering Information
Manufacturer
ABB
Required Model
ACS580-01-062A-4
Required Quantity
State the number of drive units required
Delivery Destination
Provide the destination country, city and postal code
Order Verification
Provide the complete model number and a clear product-label photograph when available
Final Confirmation
Check the model number, quantity, package scope, lead time and shipping method before ordering
Why choose us?
1.100% original product, 100% quality assurance and the more competitive price.
2.Thoughful service
Professional after-sales service.
3.Quick Shipping
We have large quantities of inventories, can ship immediately.
Company Profile
About Us: A professional supplier of industrial automation spare parts, mainly providing module spare parts for globally renowned brands of DCS systems, PLC systems, robot systems, and large servo control systems.
Main business: Distribution and supply of modules and components from brands including ABB, GE, PLC, Bentley, Honeywell, Siemens, Westinghouse Electric, Emerson, ICS, etc.
Inventory size: With over 9 million inventory parts, we focus on providing discontinued or difficult to purchase hardware.
Service scope: Our clients are located in over 165 countries worldwide, serving multiple industries such as metallurgy, power, chemical, oil and gas.
Product category: Rare, legacy or brand new PLC, HMI, DCS, hard drive, sensor, power supply.
