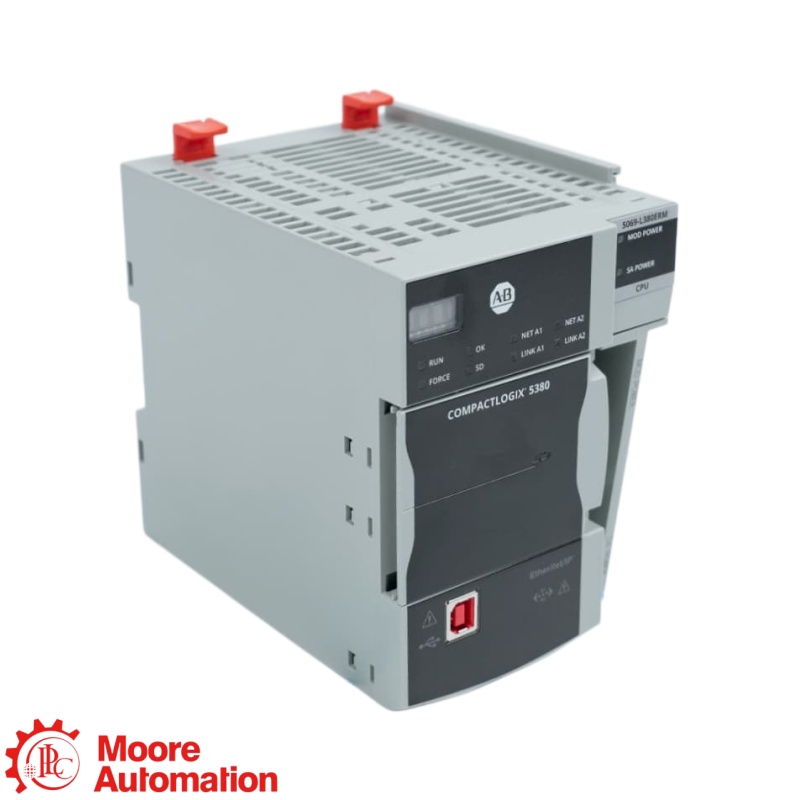

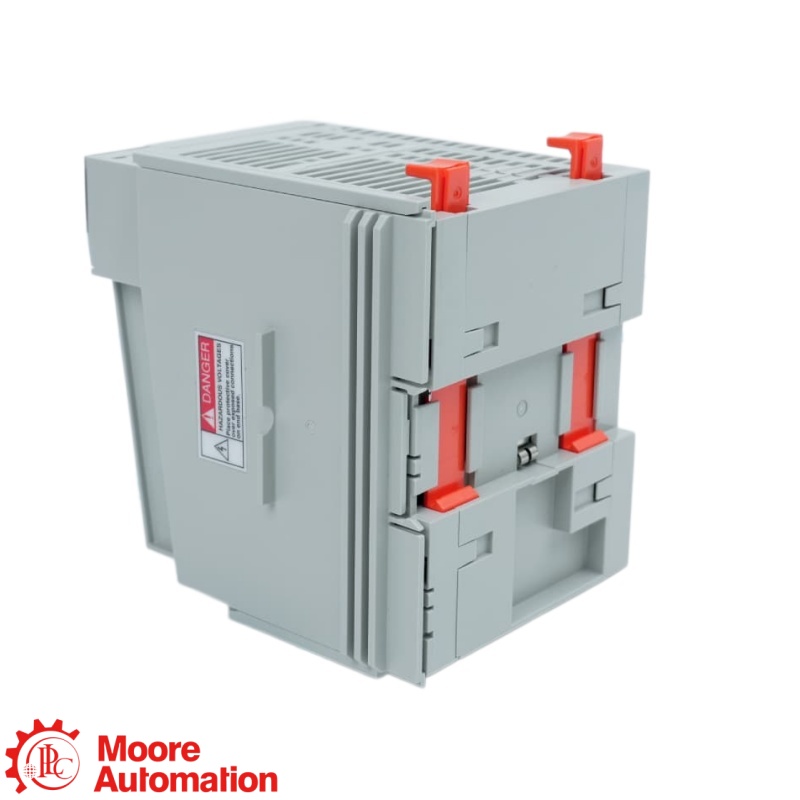

5069-L350ERM CompactLogix 5380 5 MB Motion Controller

5069-L350ERM is a CompactLogix 5380 controller for machine and integrated-motion control. Its 5 MB configuration supports up to 31 local I/O modules, 24 motion axes and 120 EtherNet/IP devices; all three limits must suit the final system.

The 5069-L350ERM product entity provides the same CompactLogix 5380 motion-controller role but raises user memory from 3 MB to 5 MB, motion capacity from 16 to 24 axes and the EtherNet/IP device limit from 60 to 120. Project, network and firmware compatibility still require verification.

No. 5069-L350ERM is an EtherNet/IP controller whose catalog configuration supports up to 120 EtherNet/IP devices, but actual connections, produced/consumed tags and traffic must stay within Rockwell design limits and the engineered network capacity.

No. The controller provides integrated CIP Motion for up to 24 axes. Applications needing more axes require a different architecture or controller tier, and compatible drives, firmware and network timing must also be confirmed.

The controller performs Logix and motion control, but its power termination is a separate configuration item. Confirm and order the compatible 5069-RTB64-SCREW or 5069-RTB64-SPRING RTB, then verify 18…32 V DC MOD power and conductor style.

Before replacement, confirm the 5069-L350ERM catalog number, 5 MB project size, firmware and Studio 5000 support, 31-module I/O map, 24-axis configuration, 120-device network design, power RTB and safety of the machine shutdown procedure.
