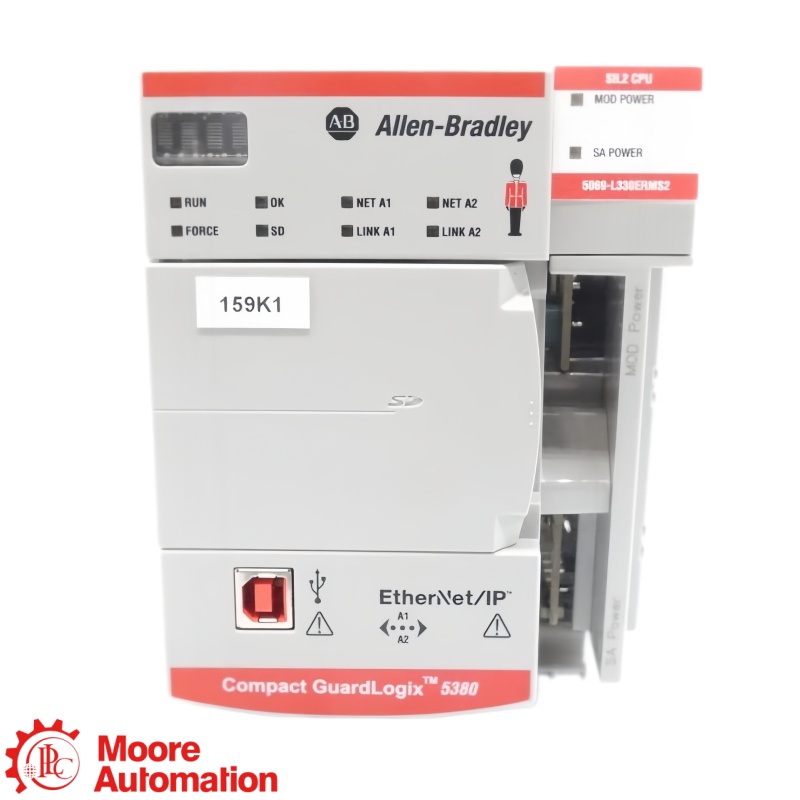

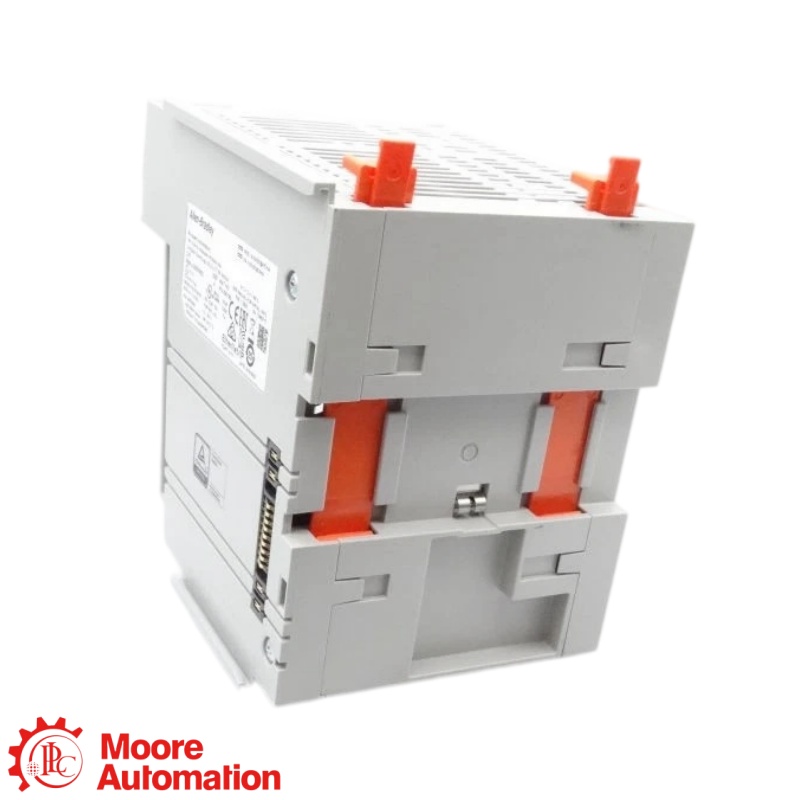

5069-L330ERMS2 Compact GuardLogix 5380 SIL2 Motion Controller

5069-L330ERMS2 combines standard Logix machine control, SIL 2 / PLd safety logic and integrated CIP Motion. Its configuration provides 3 MB standard plus 1.5 MB safety memory, 31 local I/O modules, 16 axes and 60 EtherNet/IP devices.

The ERMS2 product adds GuardLogix SIL 2 / PLd safety processing and a separate 1.5 MB safety-memory area. Both models support 3 MB standard memory, 31 local modules, 16 axes and 60 devices, but only a complete validated safety system can claim the safety level.

No. 5069-L330ERMS2 has separate memory allocations for standard and safety applications. The standard program must fit 3 MB and the safety application must fit 1.5 MB; they are not one interchangeable 4.5 MB pool.

The catalog limit is up to 60 EtherNet/IP devices, but the feasible mix depends on connection counts, update rates, safety and motion traffic, profiles, topology and firmware. The engineered network must satisfy both performance and validation requirements.

The S2 configuration identifies SIL 2 / PLd safety capability. Commissioning must verify the safety task, signature, lock state, compatible safety I/O, response-time calculations, diagnostics and the complete machine safety validation.

Confirm the exact catalog number, 3 MB standard and 1.5 MB safety projects, safety signature, firmware and Studio 5000 support, 31-module I/O map, 16-axis setup, 60-device network, compatible power RTB and controlled safety recommissioning.
