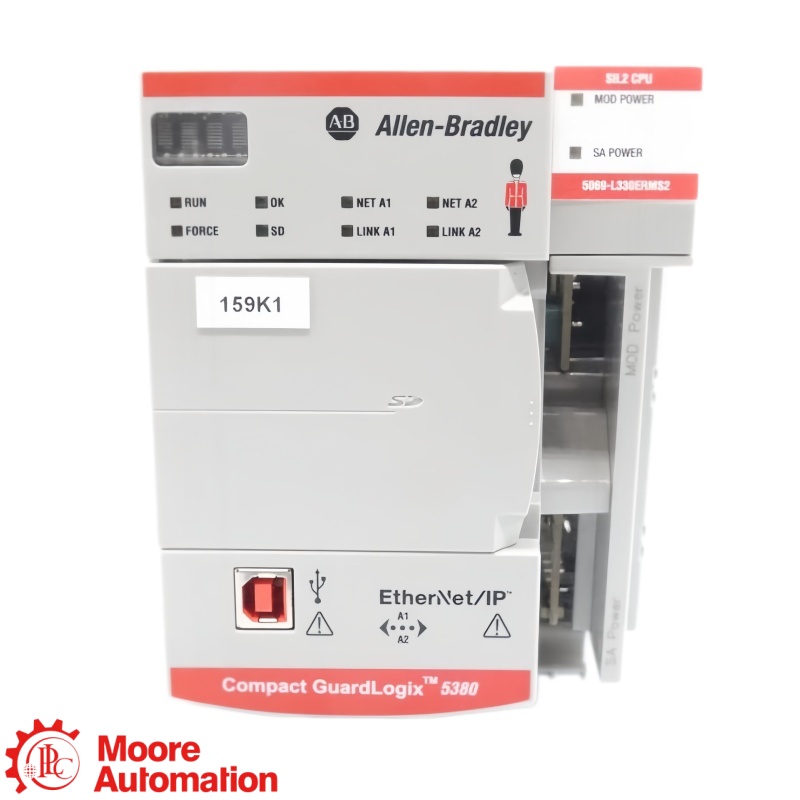

5069-L330ERM CompactLogix 5380 3 MB Motion Controller

5069-L330ERM is a CompactLogix 5380 controller that combines Logix machine control with integrated CIP Motion. Its 3 MB configuration supports up to 31 local I/O modules, 60 EtherNet/IP devices and 16 motion axes; the final project must remain within all three capacity limits.

5069-L330ERM uses the ERM suffix to identify the motion-capable EtherNet/IP controller variant. It provides 16 integrated axes with 3 MB memory and dual 1 Gb Ethernet ports. A non-ERM controller cannot be assumed to execute the same motion configuration, and drive/firmware compatibility must be verified.

5069-L330ERM requires MOD and SA power connections to operate the controller and attached Compact 5000 I/O, but the 5380 controller is supplied without the removable power terminal kit. Order either 5069-RTB64-SCREW or 5069-RTB64-SPRING and verify conductor and power-distribution requirements.

5069-L330ERM performs controller, I/O and motion communication through two embedded 1 Gb EtherNet/IP ports and supports up to 60 EtherNet/IP devices. The ports do not increase the device limit; topology, switch design and motion traffic must fit the documented controller capacity.

5069-L330ERM provides 3 MB memory, 60 EtherNet/IP devices and 16 motion axes for mid-sized motion systems. The 5069-L350ERM configuration raises those limits to 5 MB, 120 devices and 24 axes, so selection depends on project memory, network and motion demand rather than the family name alone.

5069-L330ERM must match the installed 5380 motion-controller role before it restores logic, I/O, Ethernet and motion. Confirm 3 MB project size, 31 local modules, 60 devices, 16 axes, 18…32V DC MOD power, SA power, RTB style, firmware, Studio 5000 version and drive compatibility.
