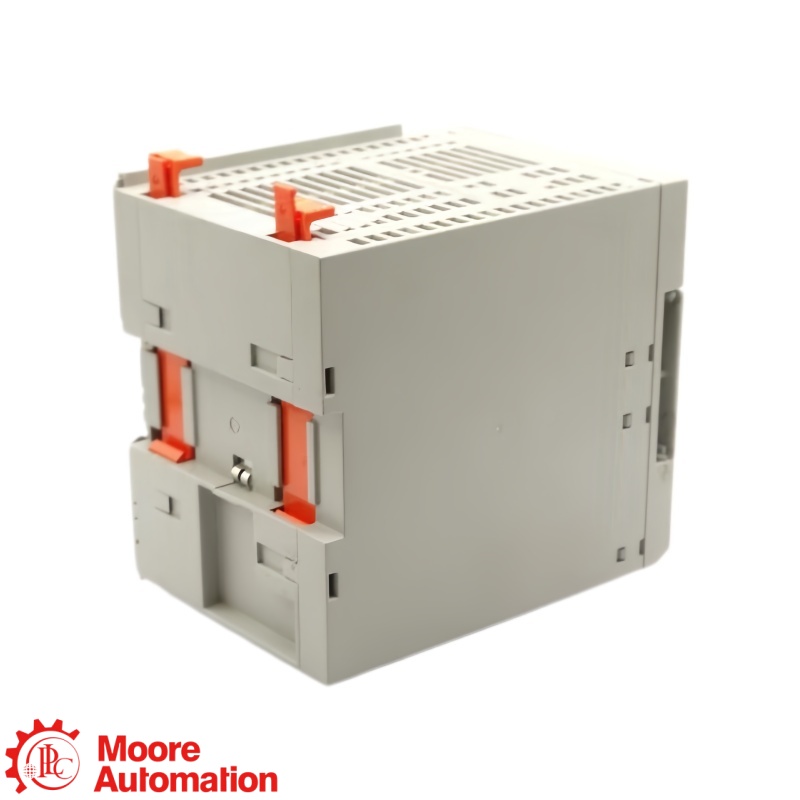

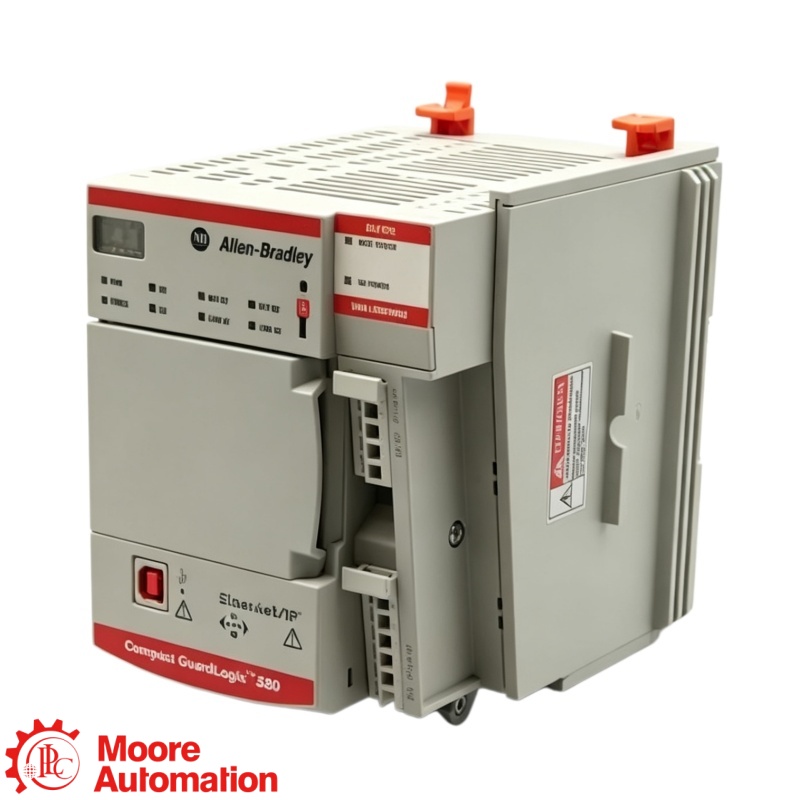

5069-L320ERMS2 GL 5380 SIL2 Motion Controller
5069-L320ERMS2 GL 5380 SIL2 Motion Controller
5069-L320ERMS2 GL 5380 SIL2 Motion Controller

5069-L320ERMS2 GL 5380 SIL2 Motion Controller

GL 5380

5069-L320ERMS2

The 5069-L320ERMS2 is a GL 5380 controller for integrated machine, motion and SIL 2 / PLd safety control. It provides 2 MB standard plus 1 MB safety memory, supports up to 16 local Compact 5000 I/O modules, 8 motion axes and 40 EtherNet/IP devices.

USER MEMORY2 MB standard + 1 MB safety
LOCAL I/O16 modules
MOTION8 axes
ETHERNET DEVICES40 maximum
MANUFACTUREROriginal Manufacturer Product
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE

  • Country of Origin :

    Singapore
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION ● GL 5380 CONTROLLER
GL 5380

5069-L320ERMS2

SIL 2 / PLd SAFETY MOTION CONTROLLER

2 MB + 1 MB SAFETY · 16 I/O · 8 AXES

PRODUCT ROLE
5069-L320ERMS2 is a GL 5380 controller for integrated machine, motion and SIL 2 / PLd safety control. It provides 2 MB standard plus 1 MB safety memory, supports up to 16 local Compact 5000 I/O modules, 8 motion axes and 40 EtherNet/IP devices.
ORDER CHECK
For 5069-L320ERMS2, Confirm the 5069-L320ERMS2 safety catalog number, SIL 2 / PLd requirement, 2 MB standard and 1 MB safety project size, 8-axis demand, 40-device network, 16-module local I/O and safety signature before installation.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the 5069-L320ERMS2 order number is structured

5069
Platform familyCompact 5000 platform
L320
Capacity tier2 MB controller tier
ERMS2
Suffix functionEtherNet/IP motion with SIL 2 safety
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GL 5380 ↗
5069-L320ERMS2

Engineering data at a glance

Click “+” to expand more specifications.

USER MEMORY2 MB standard + 1 MB safety
I/O MODULES8 maximum
MOTION AXES8 maximum
ETHERNET DEVICES40 maximum
Official manufacturer documentation values for 5069-L320ERMS2.
Configuration verification

For 5069-L320ERMS2, confirm 3 MB project size, 16-axis motion capacity, 60-device network limit, 31-module local I/O capacity, 18…32V DC MOD power and the separately ordered 5069-RTB64 terminal kit. 5069-L320ERMS2.

Controller and Safety Capacity −
Catalog number5069-L320ERMS2
Product familyGL 5380
Standard memory2 MB
Safety memory1 MB
Local I/O modulesUp to 16
Lifecycle statusActive
Safety Architecture ＋
Safety capabilitySIL 2 / PLd
Safety task memory1 MB
Safety roleIntegrated machine-safety logic
System conditionComplete safety function requires validation
CommissioningVerify signature, locking and proof tests
Motion Capacity ＋
Integrated motionCIP Motion
Maximum axes8
Motion and safetyConfigured in validated project
Drive compatibilityConfirm profiles and firmware
TimingVerify engineered network update rates
EtherNet/IP and I/O ＋
EtherNet/IP devicesUp to 40
EthernetDual 1 Gb ports
Local I/OUp to 16 Compact 5000 modules
ProgrammingUSB or Ethernet
Safety I/OProfiles and firmware must match
Power and Termination ＋
MOD power18…32 V DC
Power RTBSeparate item
RTB options5069-RTB64-SCREW or SPRING
OriginSingapore
LifecycleActive
Replacement Conditions ＋
Standard projectMust fit 2 MB
Safety projectMust fit 1 MB
MotionNo more than 8 axes
NetworkNo more than 40 devices
Required checksFirmware, safety signature, I/O, RTB and power
Source: manufacturer publications 5069-TD002 and 5069-UM001 and the official 5069-L320ERMS2 product page.
FAQ

Questions Buyers Ask Most

Where does 5069-L320ERMS2 fit in a machine system?−

5069-L320ERMS2 is a GL 5380 controller for standard logic, SIL 2 / PLd safety logic and integrated motion. Its configured limits are 2 MB standard memory, 1 MB safety memory, 16 local I/O modules, 8 axes and 40 EtherNet/IP devices.

Is SIL 2 / PLd achieved simply by installing 5069-L320ERMS2?＋

No. The controller provides the safety-processing function, but the complete safety function must be designed and validated with compatible safety I/O, sensors, actuators, wiring, diagnostics, response-time calculations and application logic.

When is 5069-L320ERMS2 preferable to 5069-L306ERMS2?＋

Choose the L320 tier when the application needs more capacity: 2 MB standard plus 1 MB safety memory, up to 16 local modules, 8 motion axes and 40 EtherNet/IP devices. Compatibility and safety validation remain separate requirements.

Can standard memory be used as extra safety memory?＋

No. The product has distinct standard and safety memory allocations. A safety application must fit within the 1 MB safety area, and its signature, lock state and firmware environment must remain compatible.

How should the 40-device EtherNet/IP limit be interpreted?＋

It is the catalog configuration limit for EtherNet/IP devices managed by 5069-L320ERMS2. Actual network performance also depends on connections, update rates, motion traffic, safety traffic, switch topology and supported device firmware.

Which conditions must match before changing a 5069-L320ERMS2?＋

Confirm catalog number, standard and safety project size, safety signature, Studio 5000 and firmware support, 16-module I/O layout, 8-axis setup, 40-device design, separate power RTB and the validated restart/commissioning procedure.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
5069-L320ERMS2

Official manufacturer documentation for the 5069-L320ERMS2 sil 2 / pld safety motion controller.

GL 5380 Controllers

manufacturer publication 5069-TD002 covering GL 5380 capacity, interfaces, power, motion and installation specifications.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are based on manufacturer publications 5069-TD002 and 5069-UM001 and the official 5069-L320ERMS2 product page.

GL 5380 RELATIONSHIP

How 5069-L320ERMS2 Fits into the GL 5380 Family

5069 identifies the Compact 5000 platform. L320 identifies the 2 MB controller tier, while ERMS2 identifies the EtherNet/IP motion with SIL 2 safety. 5069-L320ERMS2 is configured for 16 local-I/O capacity, 40 EtherNet/IP devices and 8 motion-axis capacity.

PLATFORMCompact 5000I/O and controller architecture
CONTROLLER TIERL320 · 2 MB standard + 1 MB safety40 devices · 16 local modules
EXACT MODEL5069-L320ERMS28-axis sil 2 / pld safety motion controller
Selection note: Match memory, local I/O, device and motion limits, plus MOD/SA power and RTB style.
APPLICATION AREAS

Application mind map for 5069-L320ERMS2

Application ControlCoordinate up to 8 integrated CIP Motion axes
Compact 5000 I/O CellControl up to 16 compatible local I/O modules
APPLICATION CENTER 5069-L320ERMS2 sil 2 / pld safety motion controller
EtherNet/IP Machine NetworkConnect up to 40 devices through dual 1 Gb ports
Controller ReplacementRestore the verified 2 MB standard + 1 MB safety project, motion configuration and firmware
