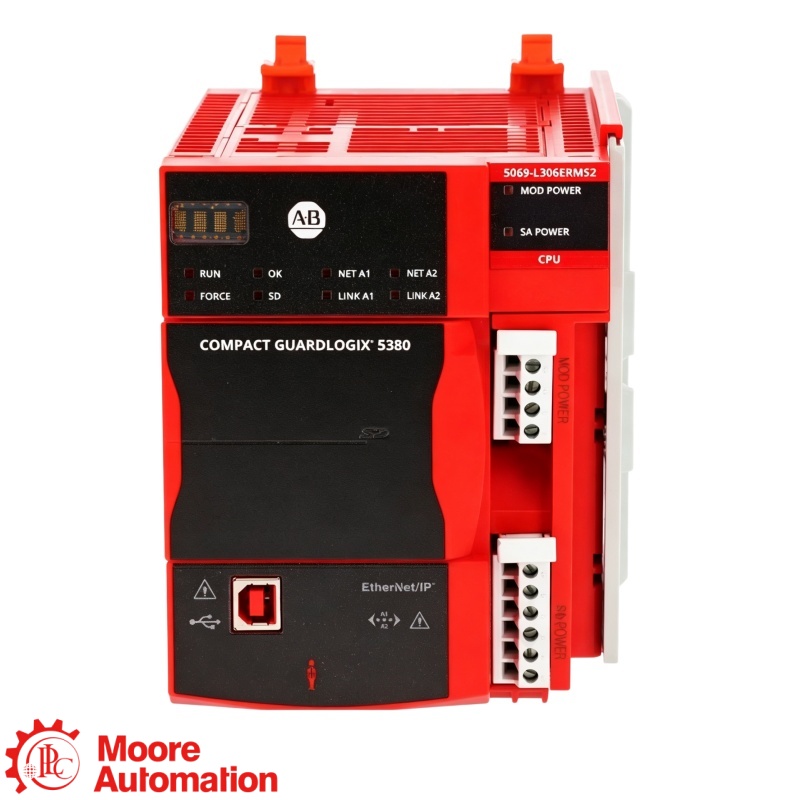

5069-L306ERMS2 Compact GuardLogix 5380 SIL2 Motion Controller

5069-L306ERMS2 is a Compact GuardLogix 5380 controller that combines standard machine control, SIL 2 / PLd safety logic and integrated CIP Motion. Its configuration is limited to 0.6 MB standard memory, 0.3 MB safety memory, 8 local I/O modules, 2 axes and 16 EtherNet/IP devices.

No. 5069-L306ERMS2 provides a SIL 2 / PLd-capable safety-controller function, but compliance belongs to the complete validated safety system, including sensors, I/O, actuators, wiring, logic, diagnostics and application calculations.

The product runs standard Logix control and a protected safety application in separate configured memory areas: 0.6 MB standard and 0.3 MB safety. Both project portions must fit, and the safety signature and locking state must be handled correctly.

No. This catalog configuration supports up to 2 integrated motion axes. A higher-capacity GuardLogix model is required for additional axes, subject to compatible drives, safety functions, firmware and network design.

The controller does not eliminate the need to configure power termination. Confirm the separately ordered compatible 5069 power RTB, 18…32 V DC MOD supply, safety I/O compatibility and the correct conductor/terminal style.

Preserve and verify the correct standard and safety projects, safety signature, firmware revision, Studio 5000 compatibility, I/O map, device identities, 2-axis configuration, 16-device limit and the machine's validated safety commissioning records.
