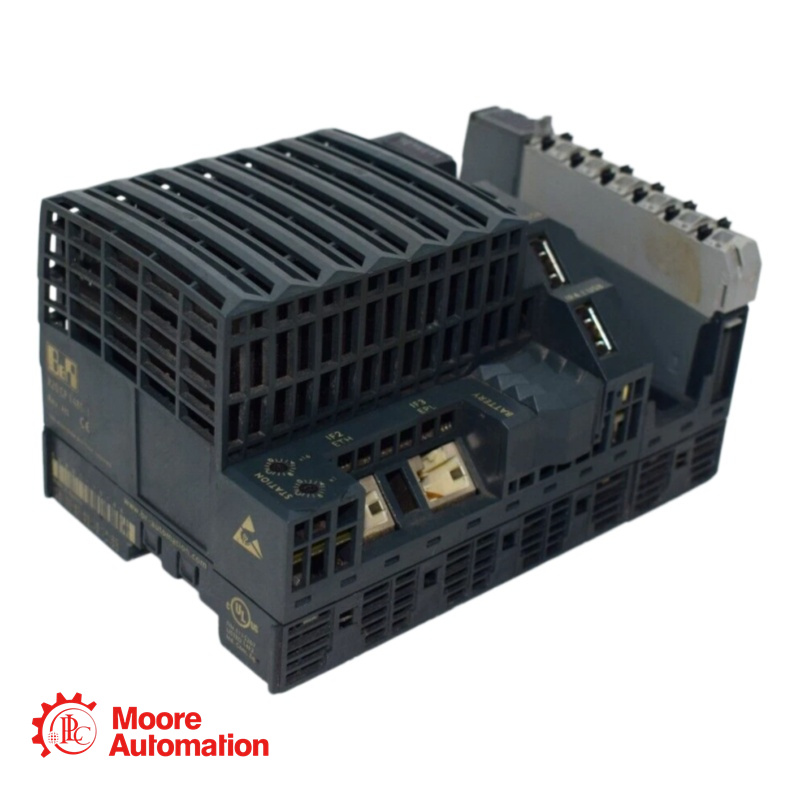

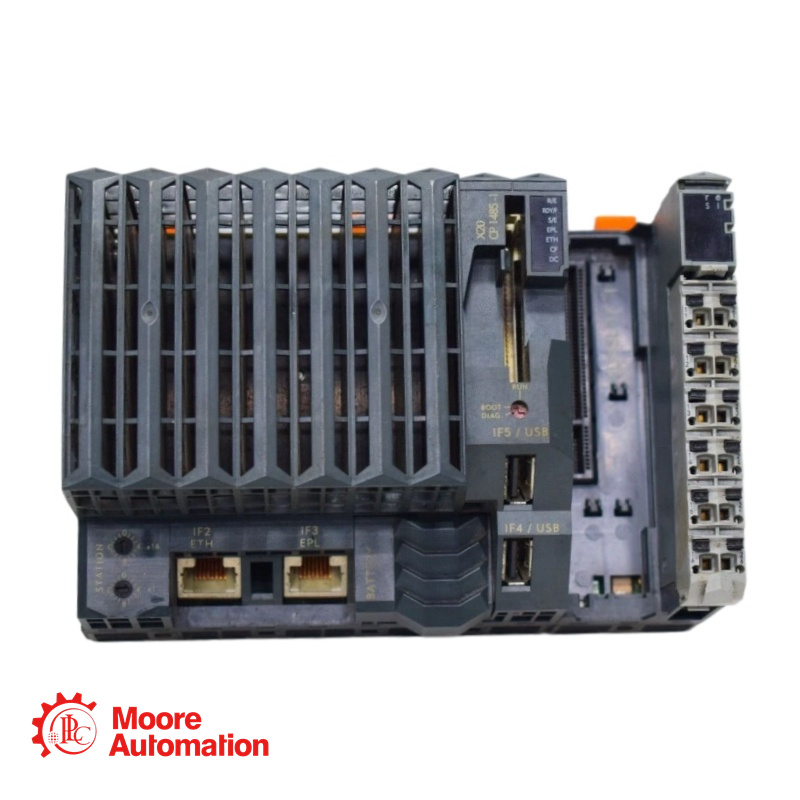

Description of X20CP1485

The X20CP1485 is a powerful CPU for the X20 System. This CPU is especially useful for applications that require short cycle times, have to process very large amounts of data, or carry out floating point operations.
Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3485 are that the X20CP1485 only has one slot for interface modules and a smaller width.
The CPU models X20CP1485 and X20CP1485-1 differ only by SDRAM size.

Intel Celeron 400 Performance with additional I/O processor
Ethernet, POWERLINK and USB onboard
1 slot for modular interface expansion
CompactFlash as removable application memory
Fan-free
Extremely compact

Parameter

Interfaces:1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
Power consumption without memory card, interface module and USB:10.5 W
Input current:Max. 2.2 A
Nominal output power:7 W
Input voltage:24 VDC -15% / +20%
Nominal output voltage:24 VDC
Permissible contact load:10 A
CompactFlash slot:1
Standard memory RAM:32 MB SDRAM

FAQ

What are the typical applications for the X20CP1485?

The X20CP1485 is ideal for applications requiring short cycle times, processing large amounts of data, or performing floating-point operations, such as high-precision motion control and data acquisition systems.

What is the difference between X20CP1485 and X20CP3485?

The main differences are:

The X20CP1485 has only one slot for interface modules and a smaller width.

The X20CP3485 supports more interface modules.

Core performance is nearly identical.

How much memory does it have?

Standard model comes with 32 MB SDRAM.
