SIEMENS | CTI 2572 | Ethernet TCP/IP Adapter

Product Description:

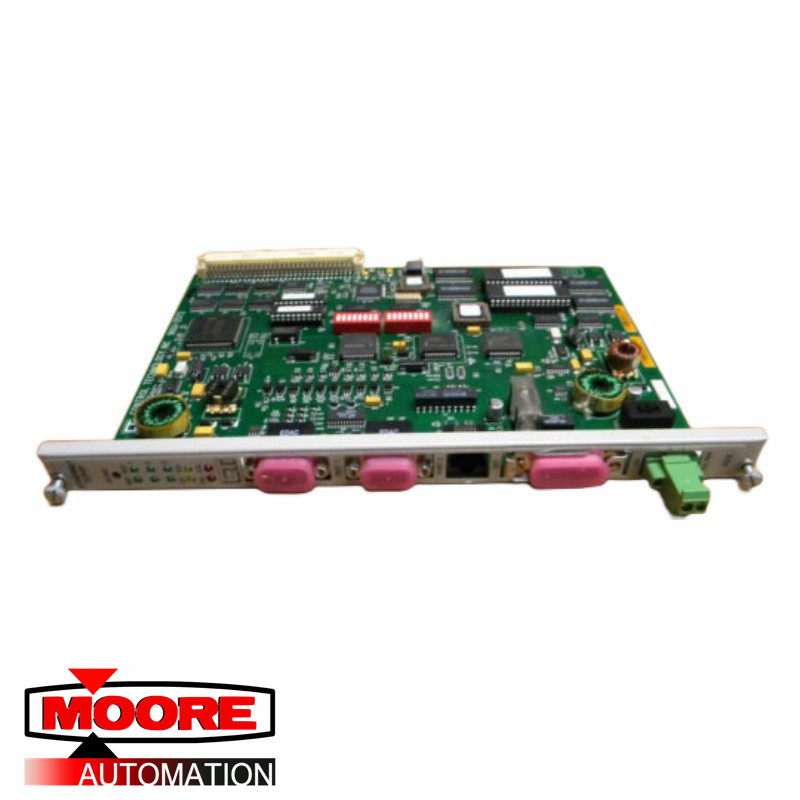

The CTI 2572 Ethernet TCP/IP Adapter is a single wide I/O module for SIMATIC® 505 controllers. The 2572 module connects to Ethernet local area networks, enabling the PLC to communicate with other network stations using the Transmission Control Protocol/ Internet Protocol (TCP/IP). Using the CTI 2572 facilities, suitably programmed network stations can acquire data from the PLC, send data and programs to the PLC, and exercise supervisory control over the PLC operation. In addition, the PLC can use the CTI 2572 to access data in other PLC systems equipped with a CTI 2572.

The 2572 attaches to all Ethernet media specified by IEEE 802.3 including 10Base5 ("thick" coaxial cable), 10Base2 ("thin" coaxial cable), 10BaseT (unshielded twisted pair cabling), FOIRL (fiber optic cable) and 10BaseFL (fiber optic cable). 10BaseT cabling can be attached directly to the 2572 via an RJ-45 connector. Other IEEE 802.3 media may be connected to the AUI (Attachment Unit Interface) port via a user supplied transceiver. The 2572 module also provides two serial ports that can be used for configuration and diagnostic activities. Both serial ports can operate concurrently.
