/Siemens 6ES7416-3FS07-0AB0 SIMATIC S7-400 CPU 416F-3 PN/DP V7

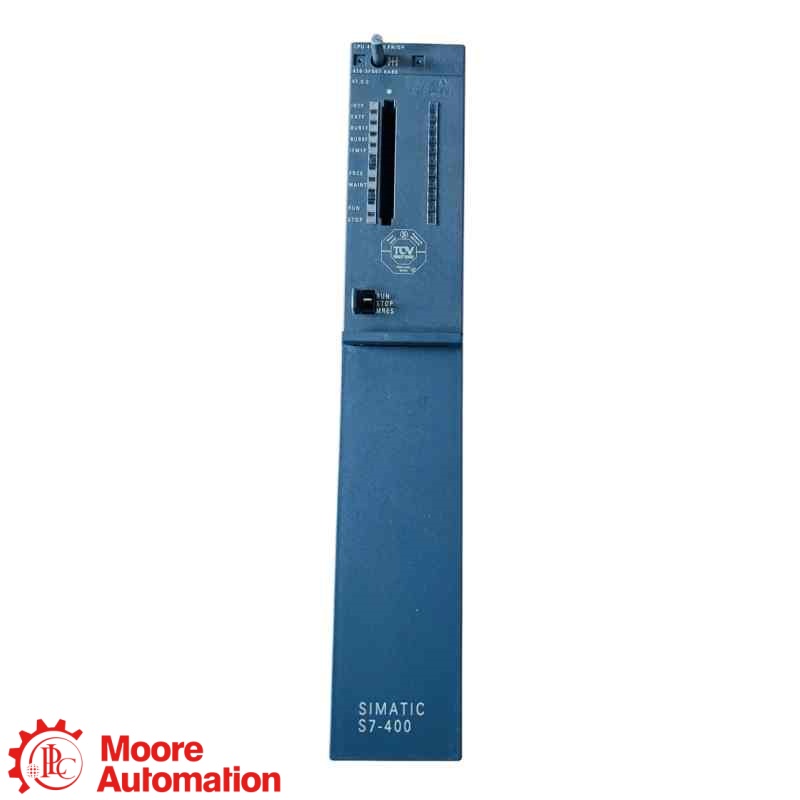

Siemens 6ES7416-3FS07-0AB0 SIMATIC S7-400 CPU 416F-3 PN/DP V7

Siemens SIMATIC S7-400 · CPU 416F-3 PN/DP V7

6ES7416-3FS07-0AB0

The 6ES7416-3FS07-0AB0 is a Siemens SIMATIC S7-400 fail-safe CPU 416F-3 PN/DP with firmware V7.0, 16 MB integrated work memory, MPI/DP and Ethernet/PROFINET interfaces.

WIDTH50 MM

HEIGHT290 MM

DEPTH219 MM

WEIGHT900 G

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● SIMATIC S7-400 FAIL-SAFE CPU

Siemens SIMATIC S7-400

6ES7416-3FS07-0AB0

CPU 416F-3 PN/DP · FIRMWARE V7.0

16 MB WORK MEMORY · PROFINET / PROFIBUS DP

PRODUCT ROLE

6ES7416-3FS07-0AB0 is a Siemens SIMATIC S7-400 fail-safe central processing unit with 16 MB integrated work memory, MPI/DP, Ethernet/PROFINET and a plug-in IF 964-DP interface.

CONFIGURATION NOTE

For 6ES7416-3FS07-0AB0, Siemens identifies this exact article as CPU 416F-3 PN/DP, hardware functional status 01 and firmware V7.0. Confirm the full article number, memory, interface layout, engineering version and installed S7-400 configuration before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens 6ES7416-3FS07-0AB0 ↗

SIMATIC S7-400 CPU 416F-3 PN/DP

Engineering data at a glance

Click “+” to expand more specifications.

WIDTH50 MM

HEIGHT290 MM

DEPTH219 MM

WEIGHT900 G

Official Siemens exact-product data sheet for 6ES7416-3FS07-0AB0.

Official product verificationVerify the complete order number 6ES7416-3FS07-0AB0, hardware status 01, firmware V7.0, 16 MB work memory, interface layout, programming environment and installed S7-400 configuration before ordering.

General Information −

BrandSiemens

Part number6ES7416-3FS07-0AB0

Product typeFail-safe central processing unit

Product familySIMATIC S7-400

HW functional status01

Firmware versionV7.0

Memory Data ＋

Integrated work memory16 MB

Program memory8 MB

Data memory8 MB

Expandable FEPROM, max.64 MB

Expandable RAM, max.64 MB

Interfaces and Engineering ＋

Interface 1MPI/DP, up to 12 Mbit/s

Interface 2Ethernet/PROFINET

Interface 3IF 964-DP plug-in

Supply and Mechanical Data ＋

Rated supplyVia system power supply

Backplane bus 5 V DC, typ.1.3 A

Backplane bus 5 V DC, max.1.6 A

Dimensions (H × W × D)290 × 50 × 219 mm

Weight, approx.900 g

Power loss, typ.6.5 W

Source: Siemens exact-product data sheet for 6ES7416-3FS07-0AB0.

FAQ

Questions Buyers Ask Most

What type of CPU is 6ES7416-3FS07-0AB0?＋

6ES7416-3FS07-0AB0 is a Siemens SIMATIC S7-400 CPU 416F-3 PN/DP fail-safe central processing unit.

How much integrated work memory does 6ES7416-3FS07-0AB0 provide?＋

6ES7416-3FS07-0AB0 provides 16 MB integrated work memory: 8 MB for code and 8 MB for data.

Which communication interfaces are provided on 6ES7416-3FS07-0AB0?＋

6ES7416-3FS07-0AB0 provides MPI/DP, Ethernet/PROFINET and a plug-in IF 964-DP interface.

Which firmware and engineering package apply to 6ES7416-3FS07-0AB0 ?＋

6ES7416-3FS07-0AB0 uses firmware V7.0 and is engineered with STEP 7 V5.5 or higher with HSP 262.

What are the dimensions and approximate weight of 6ES7416-3FS07-0AB0?＋

6ES7416-3FS07-0AB0 measures 50 × 290 × 219 mm (W × H × D) and weighs approximately 900 g.

How is 6ES7416-3FS07-0AB0 powered?＋

6ES7416-3FS07-0AB0 is powered via the system power supply and typically draws 1.3 A from the 5 V DC backplane bus.

What should be checked before ordering 6ES7416-3FS07-0AB0?＋

For 6ES7416-3FS07-0AB0, confirm the complete article number, hardware status, firmware, memory card, interface modules, STEP 7 engineering version and installed S7-400 configuration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, firmware, memory card, interface layout and installed S7-400 configuration for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
6ES7416-3FS07-0AB0

Official Siemens exact-product information for the SIMATIC S7-400 CPU 416F-3 PN/DP V7.

Official product datasheet

Siemens publishes an exact product data sheet for 6ES7416-3FS07-0AB0 covering identification, memory, interfaces, performance, engineering, mechanical data and approvals.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on the official Siemens exact-product data sheet for 6ES7416-3FS07-0AB0.

SIMATIC S7-400 CPU RELATIONSHIP

How 6ES7416-3FS07-0AB0 Fits the Siemens SIMATIC S7-400 Range

Siemens is the brand; SIMATIC S7-400 is the product family; and 6ES7416-3FS07-0AB0 is the CPU 416F-3 PN/DP fail-safe version with firmware V7.0.

Siemens · BRAND

Siemens SIMATIC S7-400FAIL-SAFE CPU CONFIGURATION

WORK MEMORY

16 MB · 8 MB CODE · 8 MB DATA

The exact article provides 16 MB integrated work memory split equally between code and data.

COMMUNICATION INTERFACES

MPI/DP · ETHERNET/PROFINET · IF 964-DP

Use the integrated and plug-in interfaces for supported SIMATIC S7-400 network integration.

FIRMWARE AND ENGINEERING

V7.0 · STEP 7 V5.5 + HSP 262

Match the firmware and engineering package to the installed automation system.

System relationship: verify the complete article number, hardware status, firmware, memory card, interfaces and installed S7-400 configuration before installation.

APPLICATION AREAS

Application fields for 6ES7416-3FS07-0AB0

Fail-safe Process ControlExecutes safety-related control tasks in SIMATIC S7-400 automation systems

Large Machine and Plant ControlCoordinates central control functions in complex production and process installations

INDUSTRIAL AUTOMATION APPLICATIONS 6ES7416-3FS07-0AB0 SIMATIC S7-400 CPU 416F-3 PN/DP

PROFINET and PROFIBUS NetworksConnects distributed automation devices through PROFINET and PROFIBUS DP

S7-400 System ModernizationSupports exact-article replacement and controlled upgrades in installed S7-400 systems
