Brand :
SIEMENSPart Number :
6ES5314-3UA11Weight :
0.3 kgDimension :
2.1x19.2x24.3cmCountry of Origin :
GermanyHS Code :
8537101190Description :

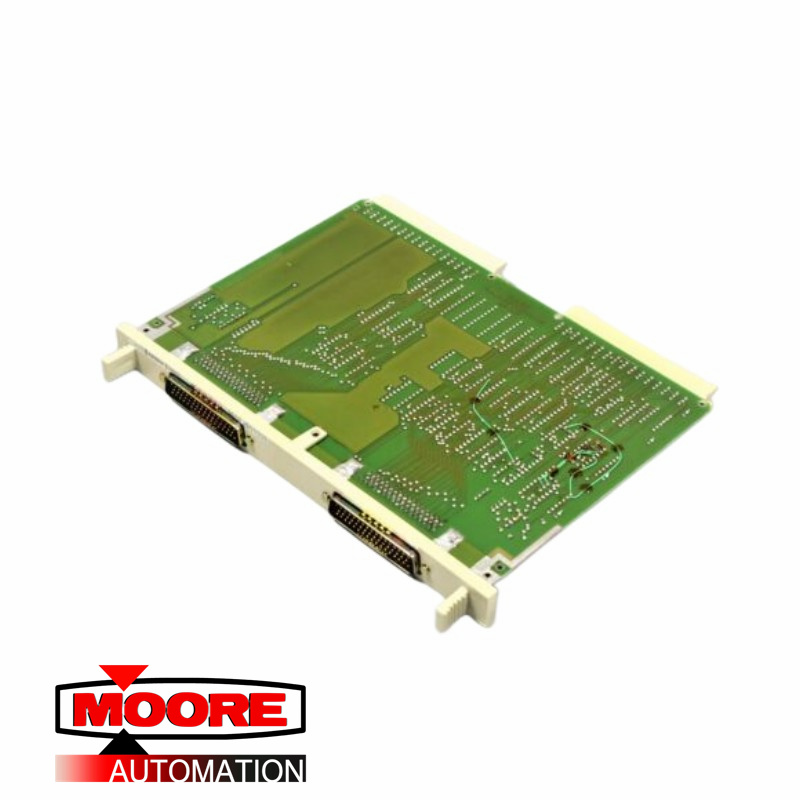

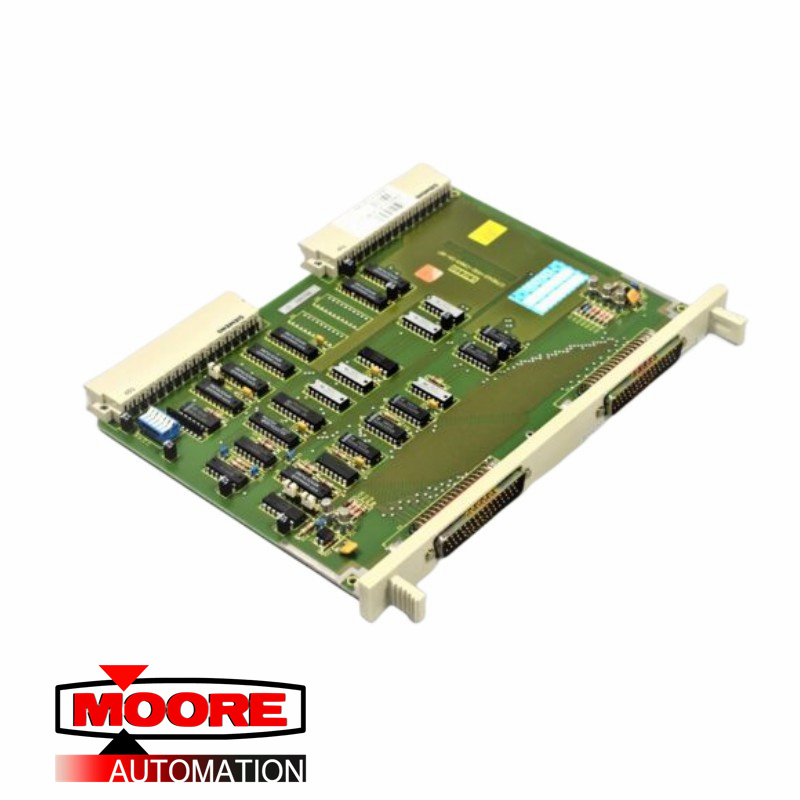

IM314 Interface ModuleProduct Description:
Plug the IM 304 interface module into a CR 700-2F central rack to connect as many as four EUs per
interface to the CC. In this way, you can connect up to eight distributed EUs to the CC via the
IM 304. Plug an IM 314 into each ER 701-2 or ER 701-3 expansion rack.
Please note the following special features:
• Switches S1 and S2 on the frontplate can be set to determine whether only one interface
(X3 or X4) or both interfaces (X3 and X4) should be in operation.
Switch in RUN position: relevant interface in operation
Switch in OFF position: relevant interface not in operation; LED off.
• The lower front socket (X4) on the last IM 314 must always have a termination connector
plugged into it.
