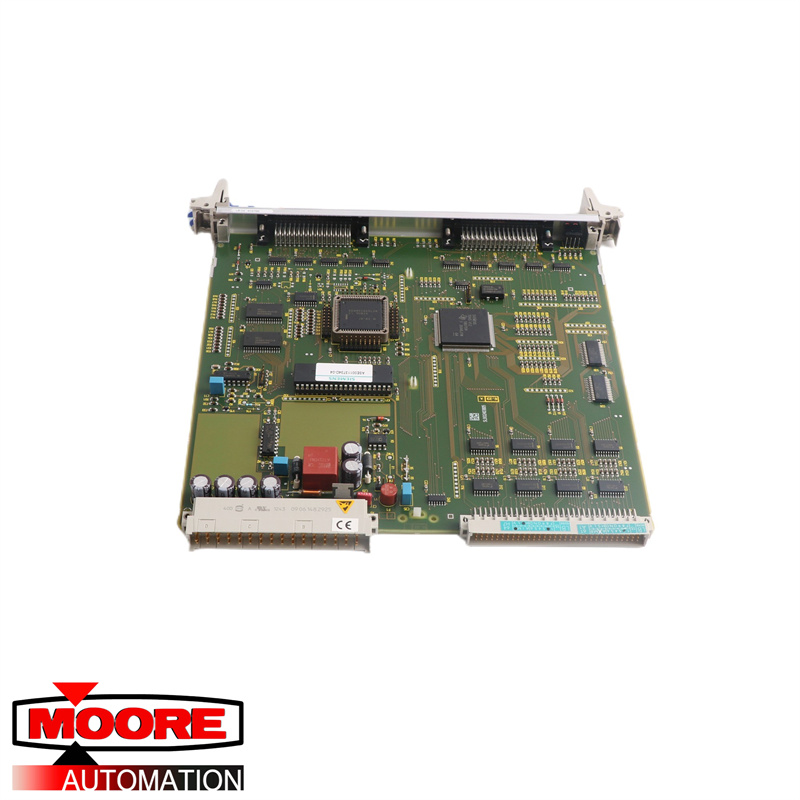

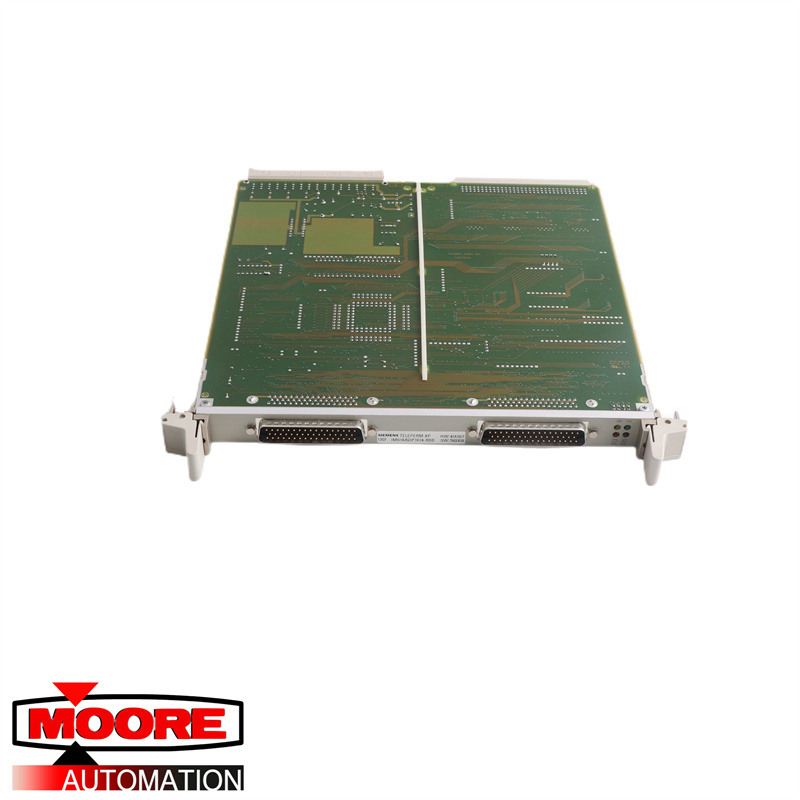

SIEMENS | 6DP1614-8BB | IM614 Module

Product Description:

The EU 902 rack is a component of the TELEPERM XP cabinet (cf. Packaging System). Ii is used for accommodating modules of the individual control level of the TELEPERM XP AS 620 B automation system with FUM B. The rack is able to accommodate two IM 614 interface modules (that connect to the AP automation processor) and up to 19 function modules (FUM) that provide the connection to the process. If necessary, an SYS 900 monitoring and signalling module can be installed instead of a function module.
The EU 902 rack has a free capacity of 21 slots with a module installation pitch of 20.32 mm. This includes 19 slots for the function modules that provide the connection to the process signals and 2 slots for the IM 614 interface modules that connect to the AP automation processor of the group control level. An SYS 900 monitoring and signalling module can replace a function module in slot 147. In this case the basic wiring of the supply board has to be modified.
