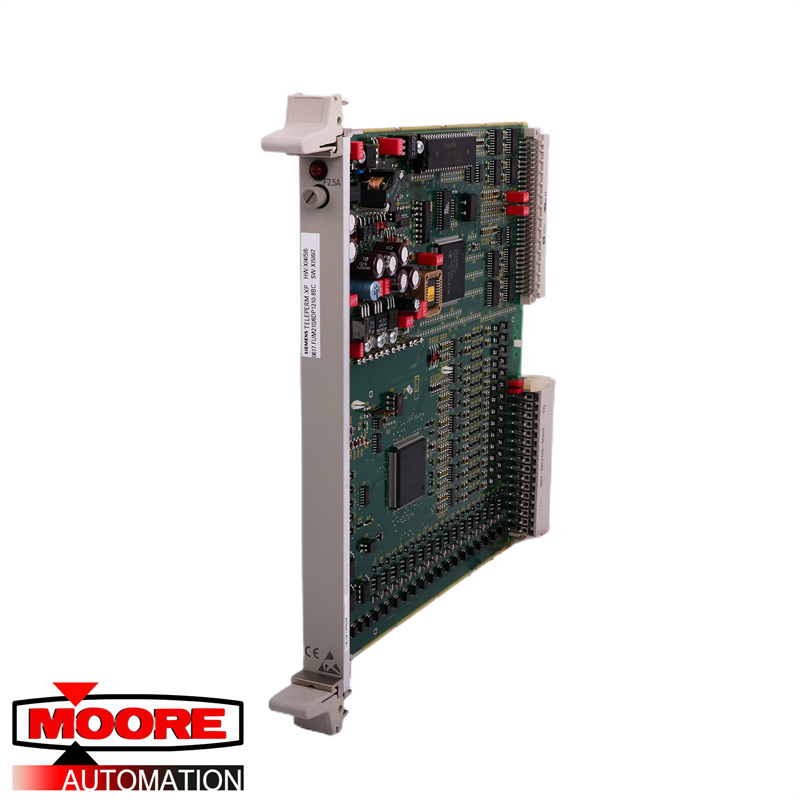

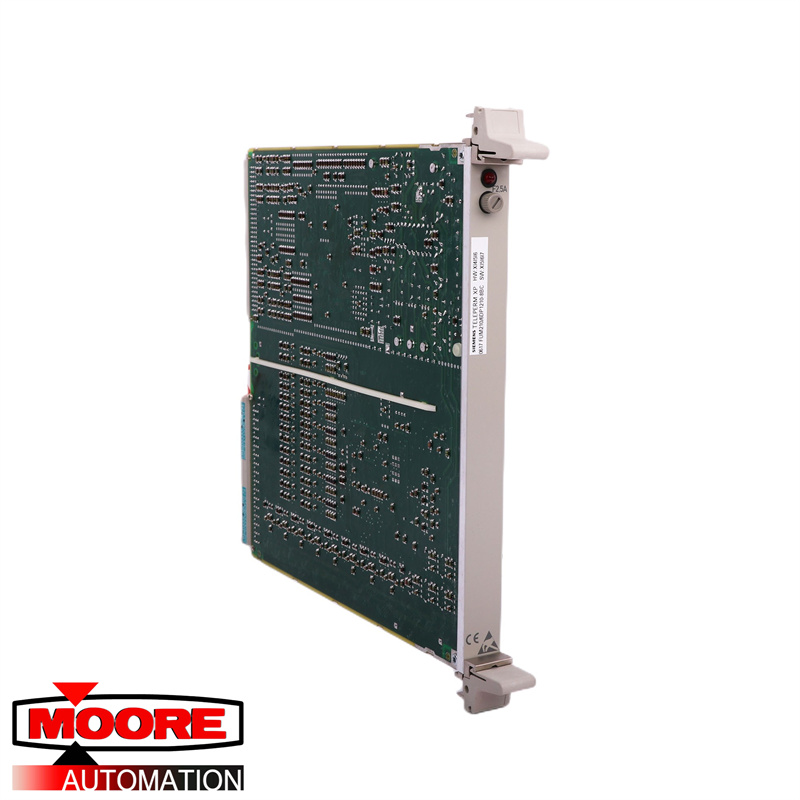

SIEMENS | 6DP1210-8BC | Binary Module - FUM210

Product Description:

The FUM210 module is one of the four monitoring and signalling modules (FUM210, SYS 900, S5-- DEDA, SIM--DEDA) that are employed in the AS 620 automation system. The FUM210 module (monitoring and signalling module) replaces the SYS900 module in the AS 620 B automation system (please refer to important note in chapter 1.2). It signals and indicates malfunctions on the associated modules, components, and power supply units. If the FUM210 module is used as the master monitoring module in an I&C cabinet, it monitors all general signalling contacts of the cabinet (such as door contacts, temperature monitors, heat exchangers), triggers the cabinet indicator lamps and, if there are any, the cabinet row lamps. The dynamization of the fault signals enable newly occurred malfunctions to be detected (blinking light) even if an acknowledged fault (steady light) is still pending. FUM210 module (monitoring and signalling function) used in AS620 B with FUM B is mounted in slot 147 of the top EU 901 resp. EU 902 rack in cabinets that only contain EU 901 resp. EU 902 racks (cabinet type C).
