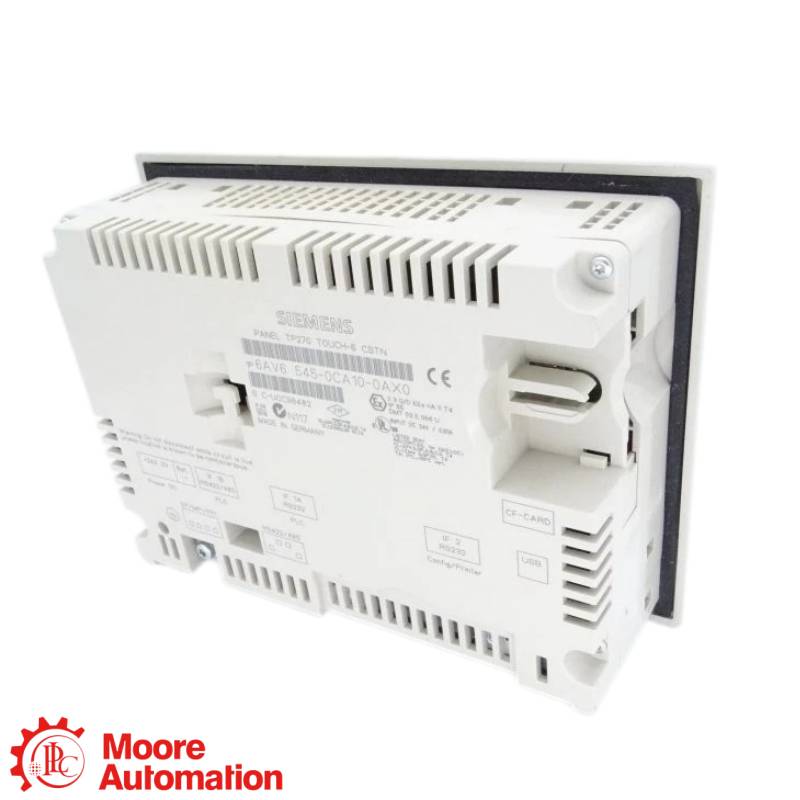

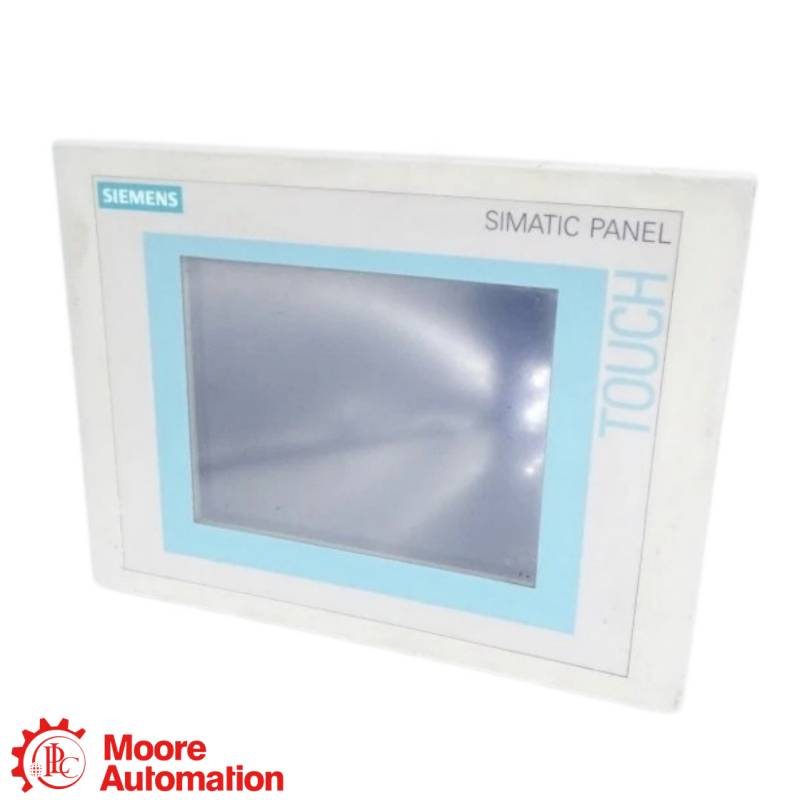

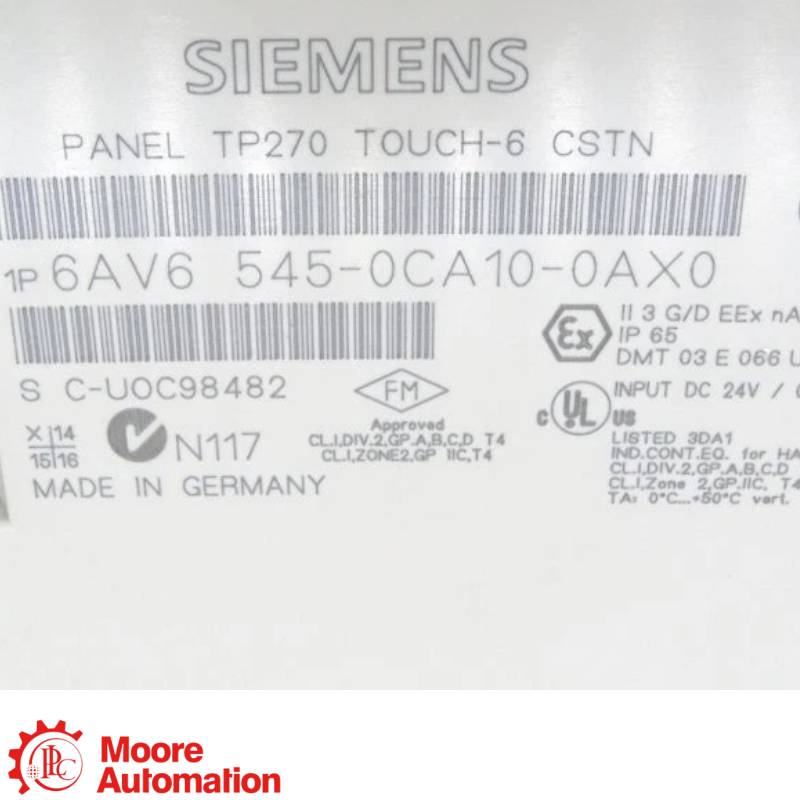

Siemens 6AV6545-0CA10-0AX0 SIMATIC TP 270 6-Inch Touch Panel

Siemens SIMATIC HMI · TP 270 6-INCH TOUCH PANEL

6AV6545-0CA10-0AX0

The 6AV6545-0CA10-0AX0 is a Siemens SIMATIC TP 270 6-inch touch panel with a 5.7-inch CSTN color display, 320 × 240 resolution and 2 MB configuration memory.

DISPLAY5.7 IN

RESOLUTION320 × 240

PANEL CUTOUT198 × 142 MM

MEMORY2 MB

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● SIMATIC TP 270 6-INCH TOUCH PANEL

Siemens SIMATIC HMI

6AV6545-0CA10-0AX0

5.7-INCH CSTN · 320 × 240

PANEL-MOUNTED TOUCH OPERATOR INTERFACE

PRODUCT ROLE

6AV6545-0CA10-0AX0 is a Siemens SIMATIC TP 270 6-inch touch panel with a 5.7-inch CSTN color display, 320 × 240 resolution and 2 MB configuration memory.

CONFIGURATION NOTE

For 6AV6545-0CA10-0AX0, Siemens identifies the 6AV6545-0CA10-0AX. family code as TP 270 6-inch. Confirm the complete article number, panel cutout, 24 V DC supply, PLC communication, project backup and installed wiring before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL SIEMENS REFERENCE

Technical Specifications

Siemens 6AV6545-0CA10-0AX0 ↗

SIMATIC TP 270 6-INCH TOUCH PANEL

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT156 MM

WIDTH212 MM

DEPTH58 MM

CONFIG MEMORY2 MB

Official Siemens equipment-manual data for the SIMATIC TP 270 6-inch touch panel.

Official product verificationVerify the complete order number 6AV6545-0CA10-0AX0, the 198 × 142 mm panel cutout, 24 V DC supply, PLC communication, project backup and installed wiring before ordering.

GENERAL INFORMATION −

BrandSiemens

Part number6AV6545-0CA10-0AX0

Product typeSIMATIC TP 270 6-inch Touch Panel

Product familySIMATIC HMI TP 270

Product designationPanel-mounted touch operator interface

Configuration memory2 MB

DISPLAY & MEMORY ＋

Display size5.7-inch

Display typeCSTN LCD with touch panel

Resolution320 × 240 pixels

Configuration memory2 MB

Operating systemMicrosoft Windows CE

MECHANICAL DATA ＋

Width212 mm

Height156 mm

Depth58 mm

POWER & ENVIRONMENT ＋

Rated supply24 V DC; permissible +18 to +30 V DC

MountingPanel mounting

Operating temperature0 to +50 °C when mounted vertically

Typical currentApprox. 0.6 A

Touch feedbackAcoustic acknowledgement, disableable

Panel cutout198 × 142 mm

Source: Siemens official SIMATIC HMI TP 270 manufacturer documentation for 6AV6545-0CA10-0AX0.

FAQ

Questions Buyers Ask Most

What is 6AV6545-0CA10-0AX0?＋

6AV6545-0CA10-0AX0 is a Siemens SIMATIC TP 270 6-inch touch panel for machine and process visualization.

What display configuration does 6AV6545-0CA10-0AX0 use?＋

6AV6545-0CA10-0AX0 uses a 5.7-inch CSTN LCD touch panel with 320 × 240 resolution and 256 colors.

How much configuration memory is available in 6AV6545-0CA10-0AX0?＋

6AV6545-0CA10-0AX0 provides 2 MB of configuration memory for the operator project.

What panel cutout and dimensions apply to 6AV6545-0CA10-0AX0?＋

6AV6545-0CA10-0AX0 uses a 198 × 142 mm panel cutout and measures approximately 212 × 156 × 58 mm (W × H × D).

Which communication interfaces should be checked for 6AV6545-0CA10-0AX0?＋

6AV6545-0CA10-0AX0 supports the TP 270 family interfaces for PLC, programming device and printer connections, including MPI/PROFIBUS-DP, serial links and USB. Match the installed project and wiring before replacement.

What power and temperature limits apply to 6AV6545-0CA10-0AX0?＋

6AV6545-0CA10-0AX0 uses 24 V DC with a permissible +18 to +30 V DC range and is specified for 0 to +50 °C in vertical installation.

Where is 6AV6545-0CA10-0AX0 typically used?＋

6AV6545-0CA10-0AX0 is used for machine operation, process visualization, alarm handling and legacy SIMATIC HMI replacement projects.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, panel cutout, 24 V DC supply, PLC communication, project backup and installed wiring for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Official Datasheet and References for
6AV6545-0CA10-0AX0

Official Siemens manufacturer-reference information for the SIMATIC TP 270 6-inch touch panel.

Official datasheet status

Siemens manufacturer documentation identifies the 6AV6545-0CA10-0AX. family code as TP 270 6-inch. The official equipment manual specifies a 5.7-inch CSTN touch display, 320 × 240 resolution and 2 MB configuration memory.

OPEN OFFICIAL MANUAL

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

SIMATIC HMI PRODUCT RELATIONSHIP

How 6AV6545-0CA10-0AX0 Fits the Siemens SIMATIC HMI Range

Siemens is the brand; SIMATIC HMI TP 270 is the touch-panel family; and 6AV6545-0CA10-0AX0 identifies the 6-inch TP 270 configuration.

Siemens · BRAND

Siemens SIMATIC HMI TP 2706-INCH TOUCH PANEL · PANEL MOUNTING

DISPLAY

5.7-INCH CSTN

6AV6545-0CA10-0AX0 provides a 5.7-inch CSTN color touch display for local machine operation.

RESOLUTION

320 × 240

The QVGA display presents 256 colors with touch operation and acoustic acknowledgement.

CONFIGURATION MEMORY

2 MB

The TP 270 6-inch family provides 2 MB of configuration memory for the operator project.

System relationship: the touch panel connects operators to the installed controller project through the configured SIMATIC HMI communication interfaces.

APPLICATION AREAS

Application areas for 6AV6545-0CA10-0AX0

Machine Operator InterfaceLocal touch operation for production machines and packaged equipment

Process VisualizationDisplay process values, operating states and production information

APPLICATION CENTER 6AV6545-0CA10-0AX0 SIMATIC TP 270 6-inch touch operator panel

Alarm and Status HandlingOperator access to alarms, messages and machine status information

Legacy HMI ReplacementReplacement planning for installed TP 270 panels with matching cutout, wiring and project backup
