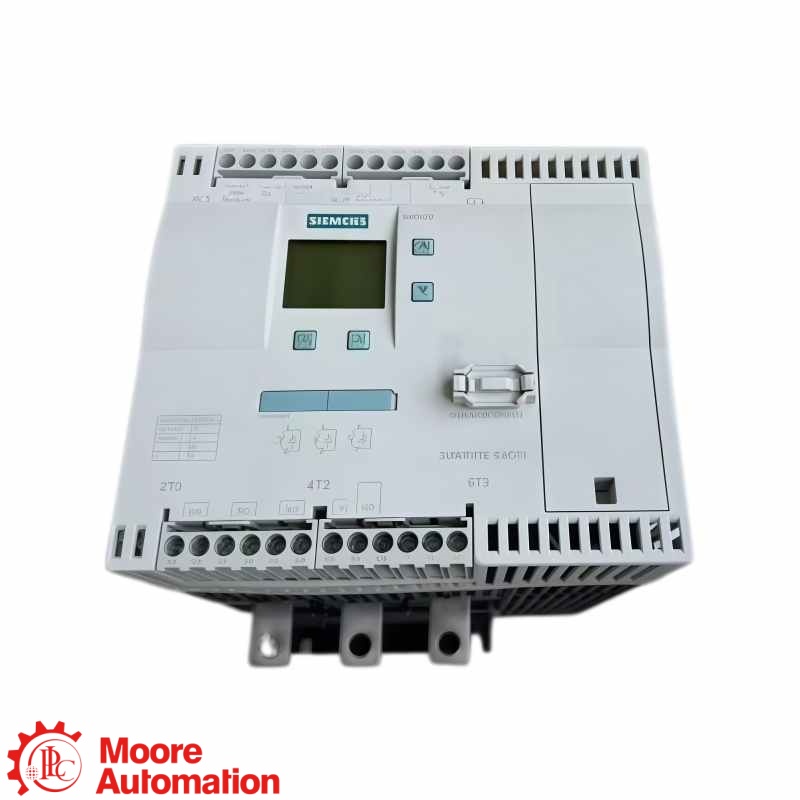

Siemens 3RW4076-6BB44 SIRIUS 3RW40 S12 Soft Starter

Siemens SIRIUS 3RW40 · S12 SOFT STARTER

3RW4076-6BB44

The 3RW4076-6BB44 is a Siemens SIRIUS 3RW40 S12 soft starter rated at 432 A at 40 °C, with 200–460 V AC operating voltage and 230 V AC control supply.

RATED CURRENT432 A AT 40 °C

MOTOR POWER250 KW / 400 V

DIMENSIONS160 × 230 × 278 MM

NET WEIGHT8.808 KG

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● SIRIUS 3RW40 S12 SOFT STARTER

Siemens SIRIUS 3RW40

3RW4076-6BB44

432 A AT 40 °C · 250 KW / 400 V

S12 SOFT STARTER FOR THREE-PHASE MOTORS

PRODUCT ROLE

3RW4076-6BB44 is a Siemens SIRIUS 3RW40 S12 soft starter rated at 432 A at 40 °C, with 200–460 V AC operating voltage and 230 V AC control supply.

CONFIGURATION NOTE

For 3RW4076-6BB44, Siemens identifies 3RW4076-6BB44 as an S12 soft starter. Confirm the complete article number, 200–460 V AC motor circuit, 230 V AC control supply, motor rating, mounting space and terminal arrangement before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL SIEMENS REFERENCE

Technical Specifications

Siemens 3RW4076-6BB44 ↗

SIRIUS 3RW40 S12 SOFT STARTER

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT230 MM

WIDTH160 MM

DEPTH278 MM

NET WEIGHT8.808 KG

Official Siemens technical data for the SIRIUS 3RW4076-6BB44 S12 soft starter.

Official product verificationVerify the complete order number 3RW4076-6BB44, the 200–460 V AC motor circuit, 230 V AC control supply, rated motor data, mounting dimensions and terminal configuration before ordering.

GENERAL INFORMATION −

BrandSiemens

Part number3RW4076-6BB44

Product typeSIRIUS 3RW40 Soft Starter

Product familySIRIUS 3RW40

Product designationS12 soft starter

Rated operational current432 A at 40 °C

ELECTRICAL DATA ＋

Operating voltage200–460 V AC

Control supply voltage230 V AC

Motor power at 400 V250 kW

Motor power at 230 V132 kW

Rated frequency50–60 Hz

MECHANICAL DATA ＋

Width160 mm

Height230 mm

Depth278 mm

FUNCTIONS & CONNECTIONS ＋

Integrated bypass contactsYes

Electronic motor overload protectionYes

Adjustable current limitingYes

External resetYes

Main-circuit connectionBusbar connection

Auxiliary/control connectionScrew terminals

Source: Siemens official manufacturer datasheet and SIRIUS 3RW30/3RW40 documentation for 3RW4076-6BB44.

FAQ

Questions Buyers Ask Most

What is 3RW4076-6BB44?＋

3RW4076-6BB44 is a Siemens SIRIUS 3RW40 S12 soft starter for controlled starting and stopping of three-phase motors, rated at 432 A at 40 °C.

Which motor-circuit voltage does 3RW4076-6BB44 support?＋

3RW4076-6BB44 is specified for a 200–460 V AC operating-voltage range. The connected motor, upstream protection and installation voltage must match the Siemens data.

What control supply is required by 3RW4076-6BB44?＋

3RW4076-6BB44 requires a 230 V AC control supply. Verify the complete part number and control-circuit frequency before replacement or commissioning.

What motor power is associated with 3RW4076-6BB44?＋

3RW4076-6BB44 is rated for 250 kW at 400 V and 132 kW at 230 V under the documented standard-circuit and temperature conditions.

What are the dimensions and weight of 3RW4076-6BB44?＋

3RW4076-6BB44 measures 160 × 230 × 278 mm (W × H × D) and has a Siemens-listed net weight of 8.808 kg.

Which protection and starting functions are built into 3RW4076-6BB44?＋

3RW4076-6BB44 includes integrated bypass contacts, electronic device self-protection, motor-overload protection, adjustable current limiting and external reset functionality.

What should be checked before replacing 3RW4076-6BB44?＋

3RW4076-6BB44: confirm the complete article number, motor voltage and power, 230 V AC control supply, duty class, mounting space, busbar connection and screw-terminal wiring.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete article number, motor voltage and power, control supply, duty class, mounting dimensions and terminal configuration for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Official Datasheet and References for
3RW4076-6BB44

Official Siemens manufacturer-reference information for the SIRIUS 3RW40 S12 soft starter.

Official datasheet status

Siemens manufacturer documentation identifies 3RW4076-6BB44 as a SIRIUS S12 soft starter rated at 432 A at 40 °C, 250 kW at 400 V, with 200–460 V AC operating voltage and 230 V AC control supply.

OPEN OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

SIRIUS 3RW40 SOFT-STARTER RELATIONSHIP

How 3RW4076-6BB44 Fits the Siemens SIRIUS 3RW40 Range

Siemens is the brand; SIRIUS 3RW40 is the soft-starter family; and 3RW4076-6BB44 identifies the S12 432 A, 200–460 V AC configuration with 230 V AC control supply.

Siemens · BRAND

Siemens SIRIUS 3RW40 S12432 A · 200–460 V AC

OPERATING VOLTAGE

200–460 V AC

3RW4076-6BB44 operates on a 200–460 V AC three-phase motor circuit.

RATED CURRENT

432 A AT 40 °C

The rated operational current is 432 A at an ambient temperature of 40 °C.

MOTOR POWER

250 KW / 400 V

The documented standard-circuit motor power is 250 kW at 400 V.

System relationship: the SIRIUS 3RW40 soft starter controls motor acceleration and deceleration while integrated protection and bypass functions support the installed three-phase drive.

APPLICATION AREAS

Application areas for 3RW4076-6BB44

Pump DrivesControlled starting and soft stopping for suitable pump motors

Conveyor SystemsSmooth acceleration and deceleration for conveyor-belt and roller-conveyor drives

APPLICATION CENTER 3RW4076-6BB44 SIRIUS 3RW40 S12 432 A soft starter

Compressor DrivesCurrent-limited starting for suitable compressor motors

Fan and Blower DrivesControlled motor starting for suitable small-fan and centrifugal-blower applications
