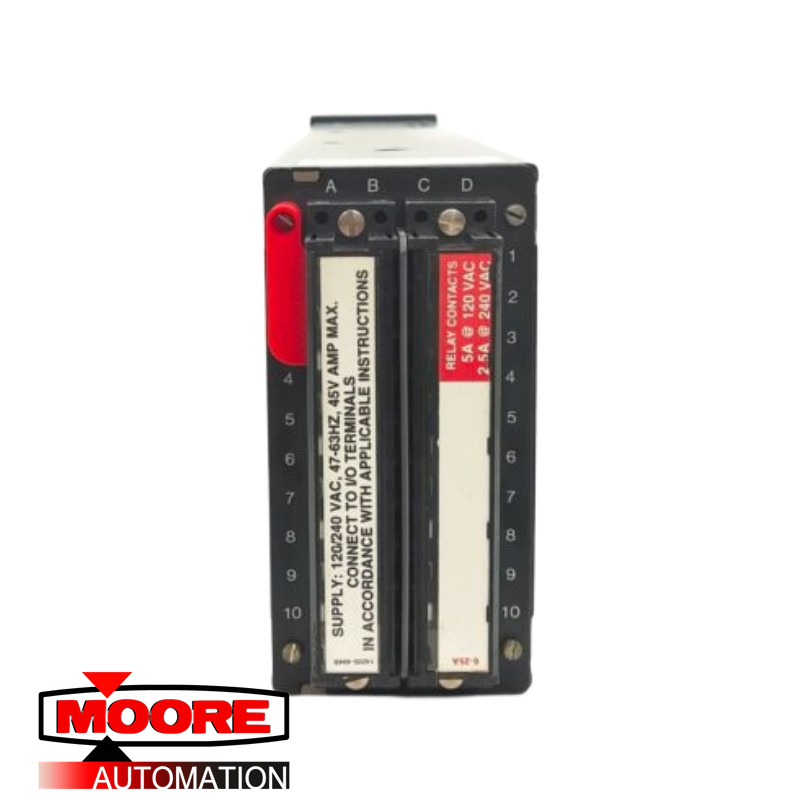

SIEMENS | 15738-119 | Moore Mounting Case With 40 Terminals

Product Description:

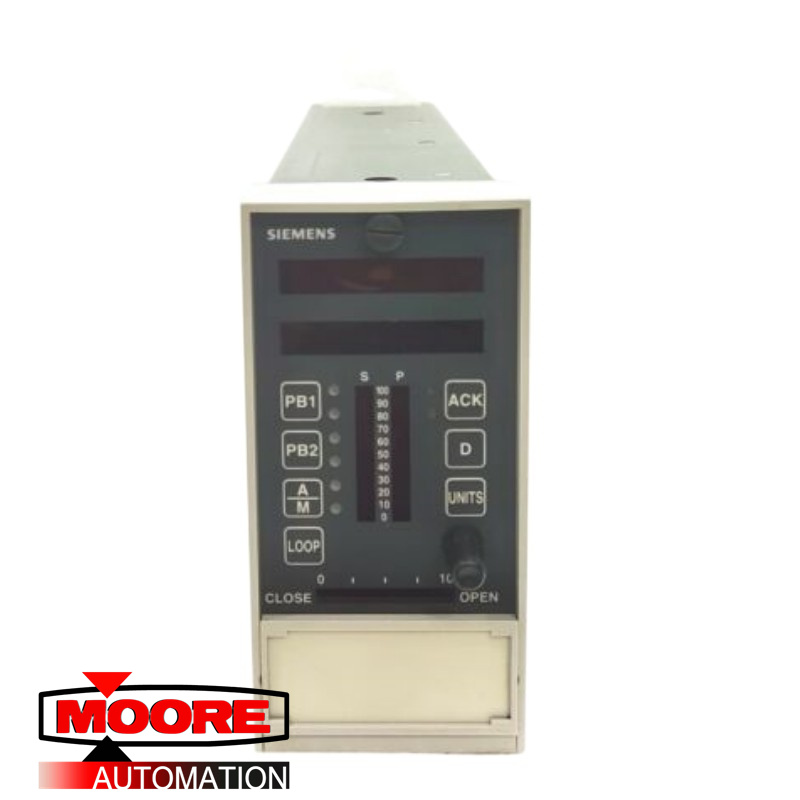

A Moore 353 is intended for flush panel mounting in a vibration free instrument panel or rack in an indoor or sheltered location. Mount a single controller in a single-station panel cutout or mount several controllers in a row in a multiple-station panel cutout. For a watertight panel, mount each controller in a single-station cutout. Controllers have been supplied with either “direct entry connectors” or “side entry connectors.” Connector types, panel cutout dimensions, and overall controller dimensions are shown in Section 8.3 Mechanical Installation.
The controller can be mounted in a user-supplied enclosure located out-of-doors or in a location whose environmental parameters exceed controller operating specifications. A thin bead of silicon sealant is often applied between the controller’s Display Assembly and the mounting panel to prevent air or liquid leakage at this joint. Do not mount the controller where direct sunlight can strike the faceplate or case. Direct sunlight can make the displays difficult to read and will interfere with heat dissipation.
