/Schneider Electric RM1-XA315 RM1XA315 TeSys Single-Pole Magnetic Overcurrent Relay

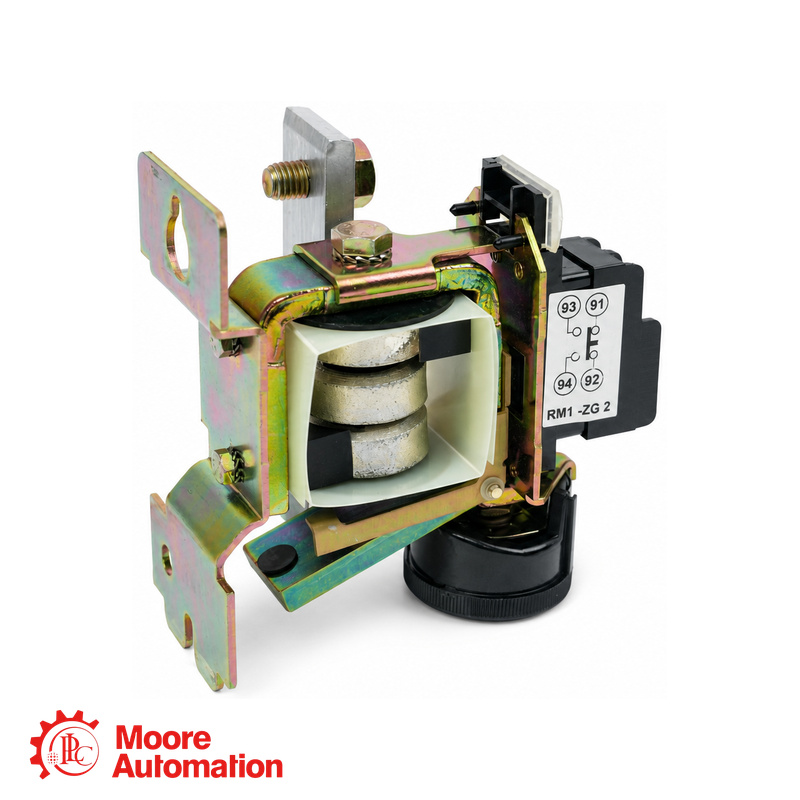

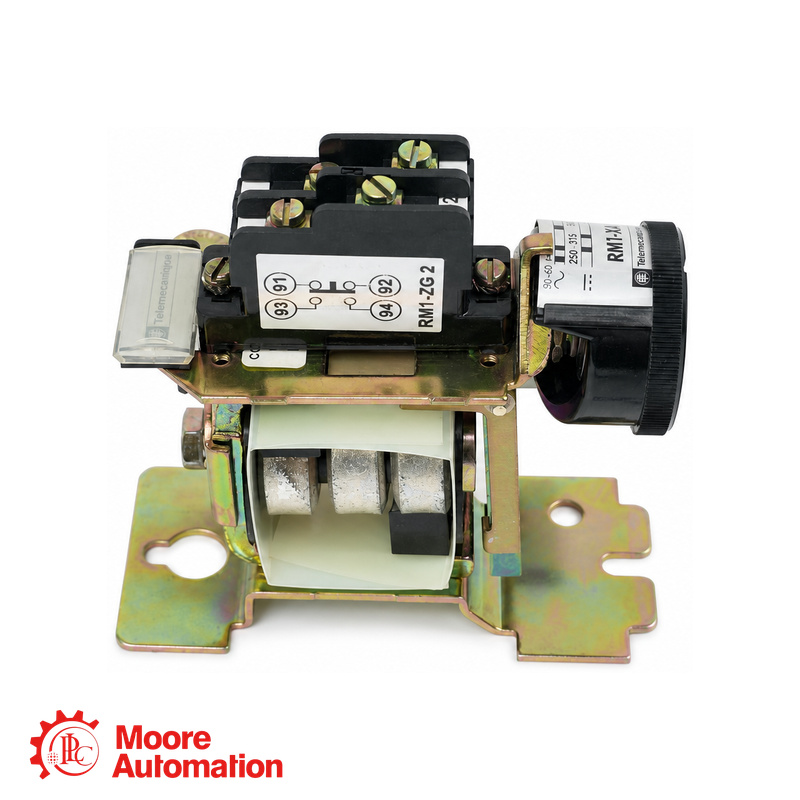

Schneider Electric RM1-XA315 RM1XA315 Magnetic Overcurrent Relay

Schneider Electric RM1-XA315 RM1XA315 TeSys Single-Pole Magnetic Overcurrent Relay

TeSys RM1 · MAGNETIC OVERCURRENT RELAY

RM1-XA315

The Schneider Electric RM1-XA315 (RM1XA315) is a TeSys RM1 single-pole magnetic overcurrent relay with a 315 A maximum continuous current rating and non-latching operation.

FAMILYTeSys RM1

RELAY TYPEMagnetic

MAX CURRENT315 A

OPERATIONNon-latching

MANUFACTURERSchneider Electric

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SCHNEIDER ELECTRIC ● TeSys RM1 SERIES

TeSys RM1 MAGNETIC OVERCURRENT RELAY

RM1-XA315

CATALOG REFERENCE: RM1XA315

Single-Pole Magnetic Overcurrent Relay

PROTECTION ROLE

RM1-XA315 is listed by Schneider Electric in the TeSys RM1 range of single-pole magnetic overcurrent relays. The catalog identifies this reference as a non-latching relay with one changeover contact.

CURRENT SELECTION NOTE

For RM1-XA315, the official catalog gives a 146–230 A recommended motor-current range, a 250–800 A setting range and 315 A maximum continuous current.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

PRODUCT IDENTIFICATION

RM1-XA315 Model Identification

RM1-XA315 corresponds to Schneider Electric catalog reference RM1XA315. The manufacturer catalog identifies this model as a non-latching single-pole magnetic overcurrent relay with one changeover contact and a 315 A maximum continuous current rating.

MODELRM1-XA315

CATALOG REFERENCERM1XA315

MOTOR CURRENT146–230 A

SETTING RANGE250–800 A

VERIFIED MANUFACTURER-REFERENCE DATA

Technical Specifications

SCHNEIDER ↗

RM1-XA315

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH12.3 cm

WIDTH8.3 cm

HEIGHT12.3 cm

WEIGHT1.05 kg

Product arrival inspection record.

Selection verificationConfirm the complete nameplate, motor full-load current and required trip setting before replacing or ordering RM1-XA315.

General Information −

BrandSchneider Electric

Catalog referenceRM1XA315

Displayed modelRM1-XA315

Product typeSingle-pole magnetic overcurrent relay

Product familyTeSys RM1

Operating modeNon-latching

Current Ratings ＋

Recommended motor current (In)146–230 A

Setting / trip current range250–800 A

Maximum continuous current315 A

Contact and Operation ＋

Auxiliary contact1 C/O contact block

Catalog sectionSingle-pole magnetic overcurrent relays

Source: Schneider Electric TeSys Overload Relays catalog, TeSys RM1 single-pole magnetic overcurrent relays, B11/50–B11/51.

FAQ

Questions Buyers Ask Most

What is RM1-XA315 used for?＋

RM1-XA315 is a Schneider Electric TeSys RM1 single-pole magnetic overcurrent relay used for overcurrent protection selection in accordance with the relay setting and motor-current ranges published in the manufacturer catalog.

What current ranges apply to RM1-XA315?＋

RM1-XA315 has a recommended motor-current range of 146–230 A, a setting range of 250–800 A and a maximum continuous current rating of 315 A in the Schneider Electric catalog.

Is RM1-XA315 a latching relay?＋

No. The manufacturer catalog lists RM1-XA315 as a non-latching TeSys RM1 relay with one changeover contact.

Which product family includes RM1-XA315?＋

RM1-XA315 belongs to the Schneider Electric TeSys RM1 family of single-pole magnetic overcurrent relays.

What should I provide for a RM1-XA315 quotation?＋

Send the complete catalog reference, quantity, motor full-load current, required trip setting, destination and clear nameplate photos. Contact Frida at sales5@mooreplc.com or WhatsApp +86 153 5940 8275.

CONTACT PRODUCT SPECIALIST

Check RM1-XA315 with Frida

Share the complete model, current range and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
RM1-XA315

Product information is limited to Schneider Electric manufacturer-reference data for the TeSys RM1 range.

RM1-XA315 Product Documentation

No public product-specific official datasheet was located for RM1-XA315 / RM1XA315. The verified values on this page come from the Schneider Electric TeSys Overload Relays catalog. For product-specific documentation, contact product specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, current range and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are limited to Schneider Electric manufacturer documentation. No third-party product sources were used.

TeSys RM1 PRODUCT RELATIONSHIP

How RM1-XA315 fits into the Schneider Electric TeSys RM1 range

Schneider Electric is the manufacturer; TeSys RM1 is the product family; and RM1XA315 is the catalog reference for a non-latching single-pole magnetic overcurrent relay with one changeover contact.

CURRENT SELECTION

146–230 A

Recommended motor-current range stated in the manufacturer catalog.

SETTING RANGE

250–800 A

Magnetic overcurrent setting range for the RM1XA315 catalog reference.

OPERATING MODE

Non-latching

Single-pole magnetic relay with one changeover contact.

Selection note: verify the motor full-load current and required trip setting before ordering.
