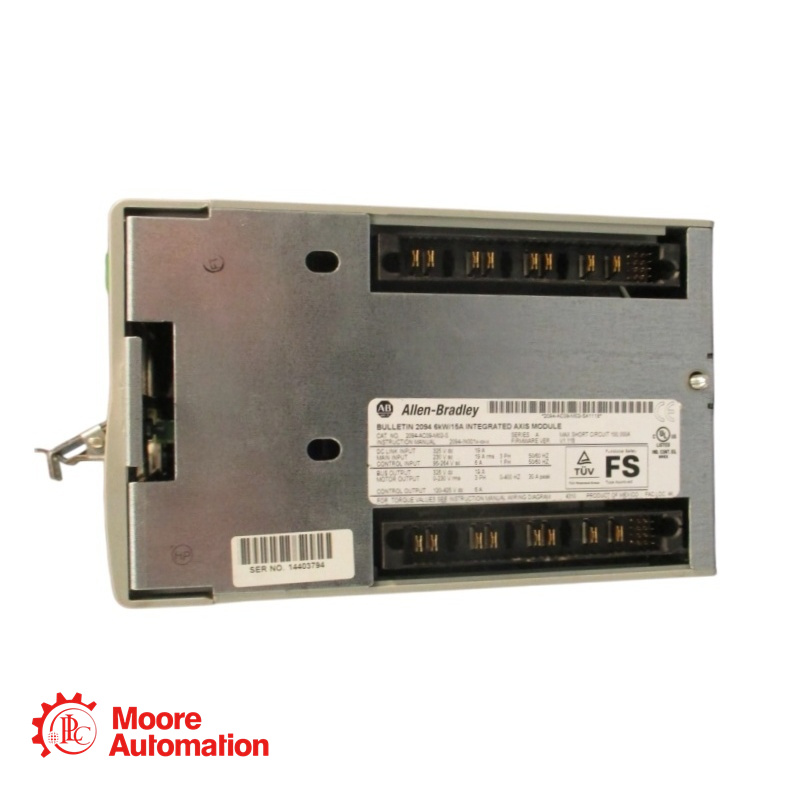

PLC 2094-AC09-M02-S Integrated Axis Module

The 2094-AC09-M02-S is an Integrated Axis Module from the 6000 series.

  • Brand :

    PLC

  • Part Number :

    2094-AC09-M02-S

  • Weight :

    2.56 kg

  • Dimension :

    12.5x18.2x22.5cm

  • Country of Origin :

    USA

  • HS Code :

    8537101190

  • Description :

    Integrated Axis Module
Inquire Now

Reliable Support Starts Here:

5 Stars Manager Frida

Phone/Whatsapp:+86 15359408275

Email: sales5@mooreplc.com

Location: 3203 Guomao Building, No.388, Hubin south Road, Siming district, Xiamen,Fujian,China




Description:2094-AC09-M02-S

The 2094-AC09-M02-S is an Integrated Axis Module from the 6000 series. This specific module combines two functions into one unit:
Converter (Power Supply): A 6 kW converter that takes 230V 3-phase AC input and provides 325V DC bus power to the drive system.
Inverter (Axis Drive): A 15A inverter section used to control one servo motor.
This module serves as the primary power entry point for a 6000 multi-axis system. It provides DC bus power to downstream Axis Modules (AMs) via the shared DC bus. It features Safe Torque Off (STO) functionality certified for SIL 3/PLe applications and communicates via the Sercos III fiber-optic network.



Parameters:2094-AC09-M02-S



Module Type:Integrated Axis Module (IAM) - Power Supply (Converter) + Axis Inverter
Input Voltage (3-Phase):195 - 264V AC rms (Nominal: 230V AC)
Input Frequency:47 - 63 Hz (Nominal: 50/60 Hz)
Input Current (Nom/Max):19 A (Nominal) / 37 A (Max, 0-pk)
Bus Voltage (DC):325V DC (Nominal)
Converter Power:6 kW (Continuous), 12 kW (Peak)
Inverter Output Current:15 A (Inverter Rating) / 19 A (Nominal Output)
Peak Output Current:38 A (rms)



FAQ:2094-AC09-M02-S

Q1: Can I use this drive with a 120V single-phase input?
A: No. This module is rated for three-phase 195-264V AC input only. Using single-phase input will derate the converter power significantly and may cause operational issues or faults.

Q2: What does the "S" suffix mean in the catalog number?
A: In the catalog number 2094-AC09-M02-S, the "S" designates that the module uses the Sercos III communication protocol. This is a fiber-optic real-time motion bus. Kinetix 6000 drives with "E" suffix are for EtherNet/IP.
