PLC 20-750-ENETR Dual Port Ethernet /IP Option Module

Contact Information

20-750-ENETR Specifications

20-750-ENETR Description

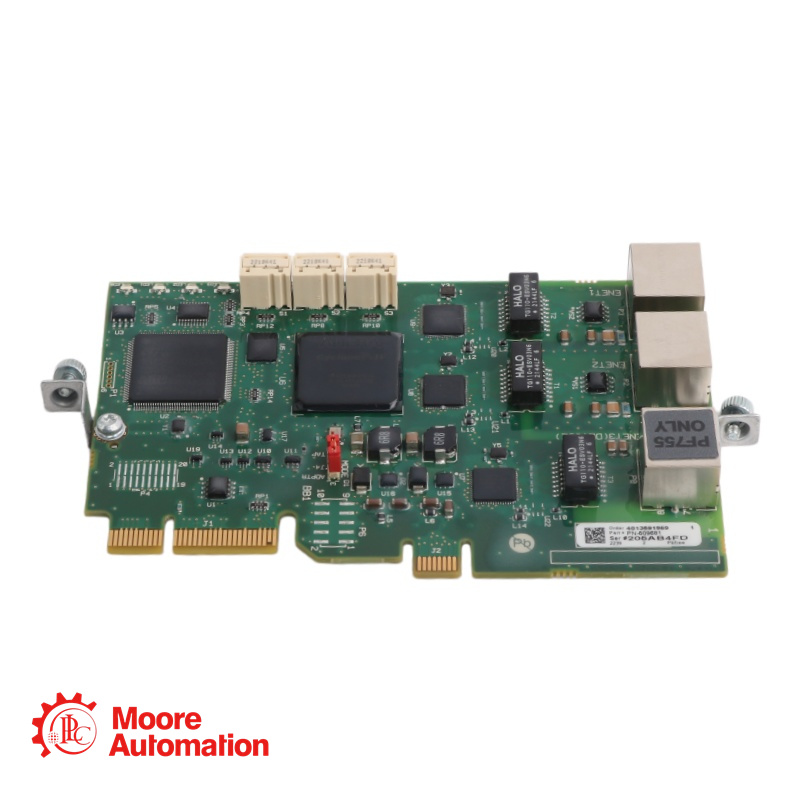

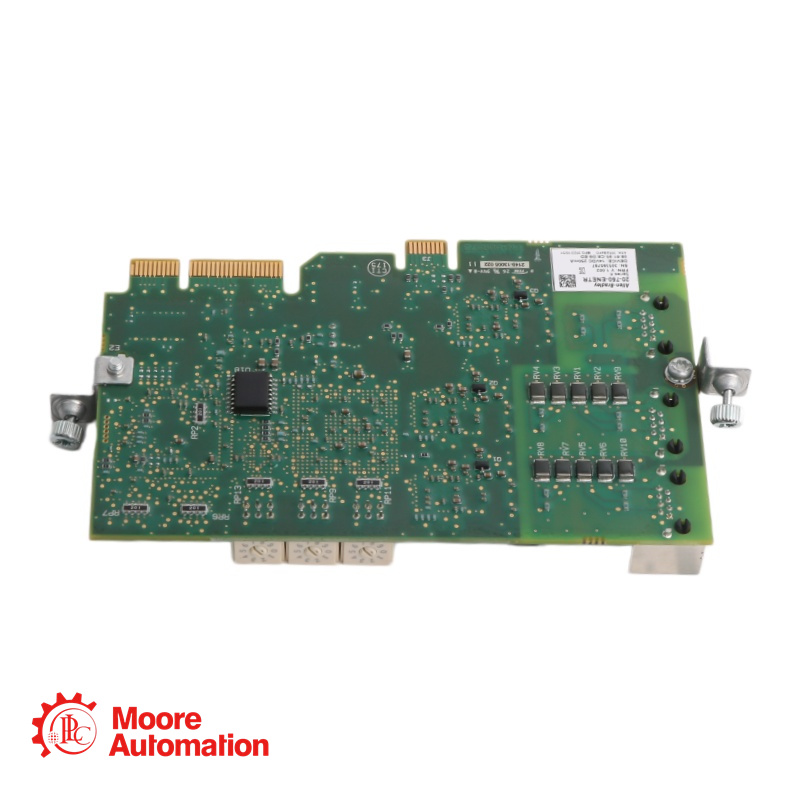

The 20-750-ENETR is a 750 Dual Port Ethernet /IP Option module. This module has Two (2) Ethernet I/P ports, supporting 10 Mbps Full-duplex, 10 Mbps Half-duplex, 100 Mbps Full-duplex, or 100 Mbps Half-duplex communication rate. This module is capable of operating Tap or Adapter mode.

In the Tap mode, the option module operates like a gateway and functions
similar to the 1783-ETAP module. The option module enables the 755 drive to extend its I/O connection to a linear or device-level ring (DLR) network topology. The connection is done by connecting the supplied Ethernet cable between ENET3 network port (of the option module) and the embedded EtherNet/IP adapter port on the 755 drive. The 755 supports these topologies and enables the 'Integrated Motion on the EtherNet/IP network' functionality

20-750-ENETR Alternative names

20-750-ENETR FAQ

What is the 20-750-ENETR option module?

The 20-750-ENETR is a Dual-port EtherNet/IP Option Module designed for PF 750-Series drives. It adds dual Ethernet/IP communication capability to the drive, enabling seamless integration into modern industrial networks.

What does the part number 20-750-ENETR signify?

20-750: PF 750 Series accessory
ENETR: EtherNET adapter with Ring topology support (DLR)

What is the difference between Adapter mode and Tap mode?

Adapter Mode: The module functions as a standard EtherNet/IP adapter, allowing the drive to be controlled by a controller over the network .
Tap Mode: The module operates like a gateway (similar to the 1783-ETAP module), enabling the drive to be integrated into a linear or Device-Level Ring (DLR) network topology. An Ethernet cable is connected between the module's ENET3 port and the embedded EtherNet/IP port on the drive. This mode also supports Integrated Motion on EtherNet/IP

How many connections does this module support?

The module supports up to 30 Ethernet connections. Both Adapter and Tap modes support 16 simultaneous MSG instruction connections. In Adapter mode, one exclusive owner I/O connection is also included.

Are EDS files required for configuration?

The module features embedded Electronic Data Sheets (EDS) . This means the EDS files are automatically loaded when the module is detected on the network, simplifying the configuration process.
