Brand :

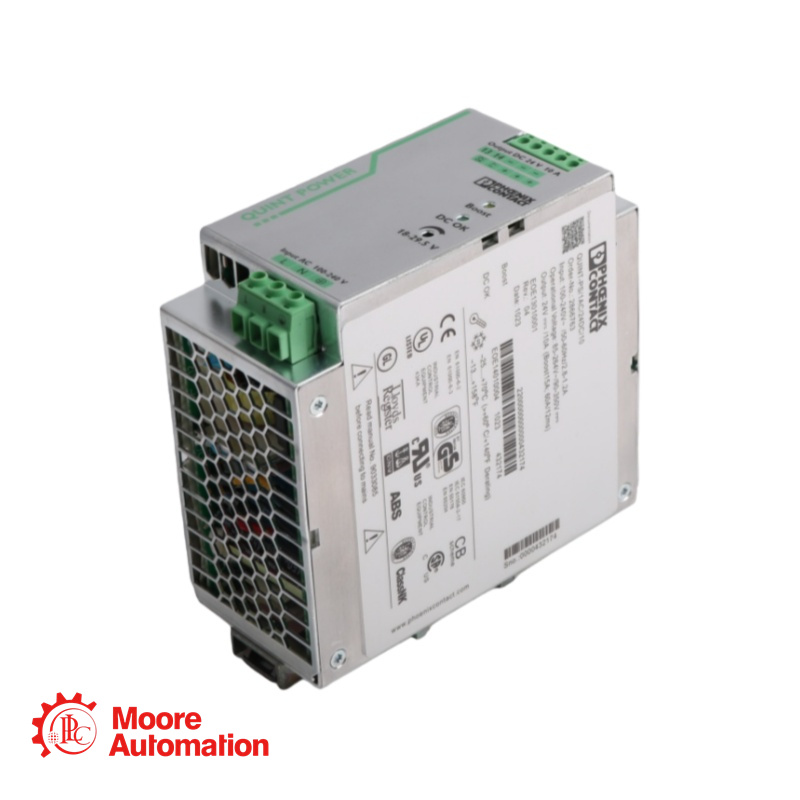

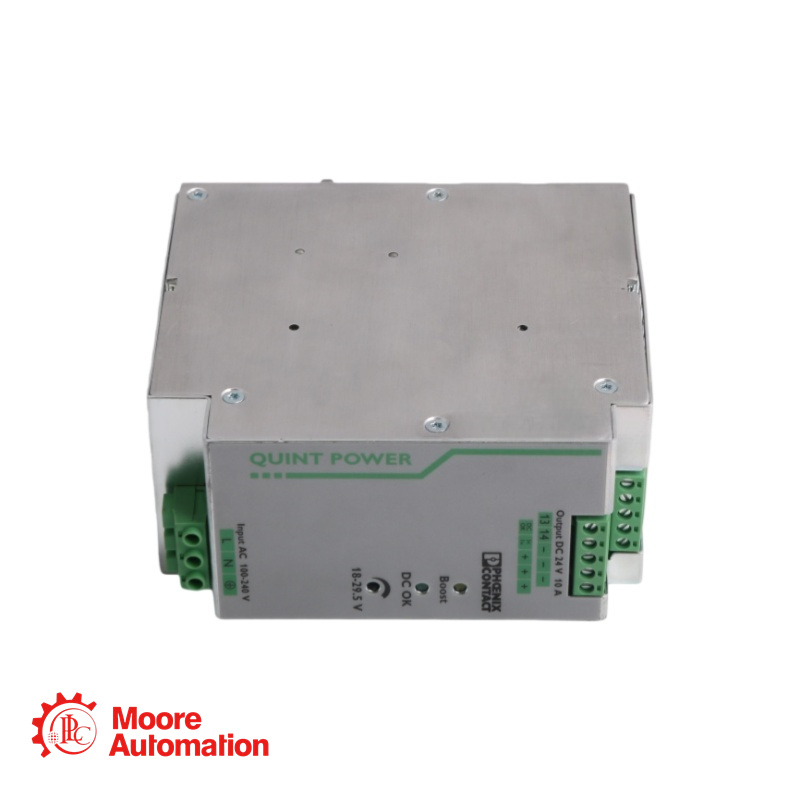

PHOENIXPart Number :
QUINT-PS/1AC/24VDC/10 2866763Weight :
1.145kgDimension :
125 mm*130 mm*60 mmCountry of Origin :
GermanyHS Code :
8537101190Description :
Power Supply Module
Waiting for your contact!
Product Description
QUINT POWER power supplies with maximum functionality
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.
Nominal input voltage range:100 V AC ... 240 V AC -15 % / +10 %
Input voltage range:85 V AC ... 264 V AC
Derating IStat. Boost:< 100 V AC (1 %/V)
Input voltage range DC:110 V DC ... 350 V DC (typ. 90 V DC (UL 508: ≤ 300 V DC))
Electric strength, max.:300 V AC
AC frequency range:45 Hz ... 65 Hz
Power factor (cos phi):0.85
Typical response time:< 0.15 s
Nominal output current (IN):10 A
Output power:240 W;360 W
Maximum inrush current:0.5 A;1 A
Output voltage:+ 24 V DC
Number of phases:1
FAQ
Q: Which product is compatible for the QUINT-PS/1AC/24VDC/10 2866763?
A: QUINT-DIODE/12-24DC/2X20/1X40 -2320157 Redundancy module.
Q: Can the QUINT-PS/1AC/24VDC/10 2866763 power supply also be used in environments with corrosive gas contamination?
A: Yes. All QUINT power supplies are tested in accordance with the ISA G3 Harsh Group A standard and meet the requirements of the standard.
Q: Can interference from the supply network be transmitted to the output of the power supply?
A: No, since the QUINT-PS/1AC/24VDC/10 2866763 power supply is designed with a multi-stage converter concept, interference is not transmitted. Interference is already eliminated in the input circuit and does not reach the 24 V output of the power supply.
