Mitsubishi Power FXDOM01 ControlNet FLEX I/O 8-Output DO Module

FXDOM01

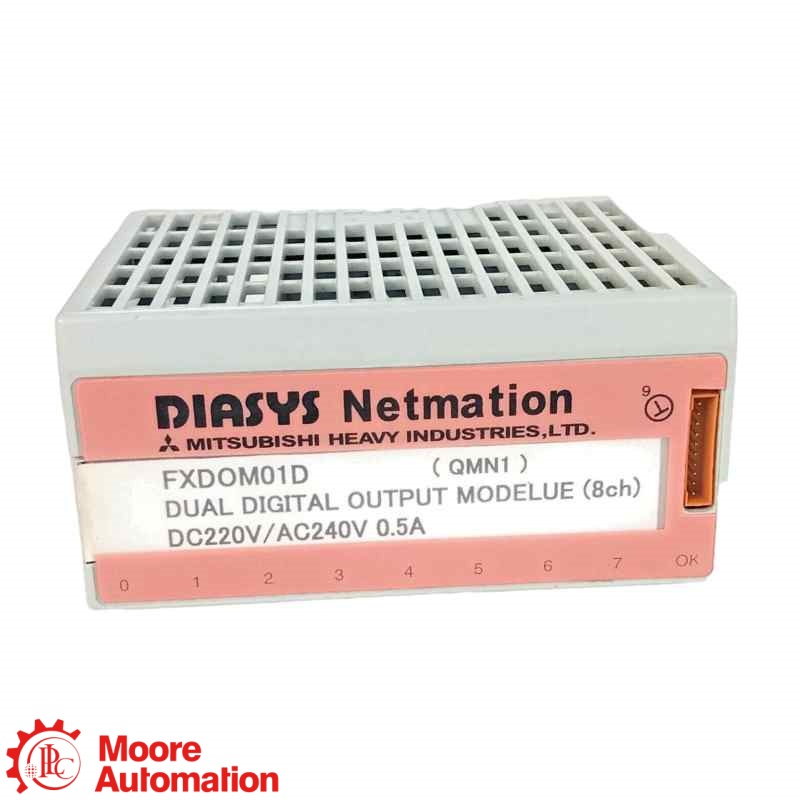

The FXDOM01 is the Mitsubishi Power digital output module with 8 individually isolated outputs for ControlNet FLEX I/O installations.

MODULE TYPE8-output DO module

SYSTEM FAMILYDIASYS Netmation

OUTPUTS8 digital outputs

MODELFXDOM01

MANUFACTURERMitsubishi Power

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

MITSUBISHI POWER ● FXDOM01 8-OUTPUT DO MODULE

Mitsubishi Power FXDOM01

FXDOM01

CONTROLNET FLEX I/O · 8 DIGITAL OUTPUTS

DIASYS Netmation DO module · individually isolated outputs

MODULE ROLE

FXDOM01 is the Mitsubishi Power 8-output digital output module for ControlNet FLEX I/O installations.

CONFIGURATION NOTE

For FXDOM01, confirm the exact module label, compatible terminal base, output voltage and current, field wiring and installed control-system configuration before replacement.

👩‍💼
