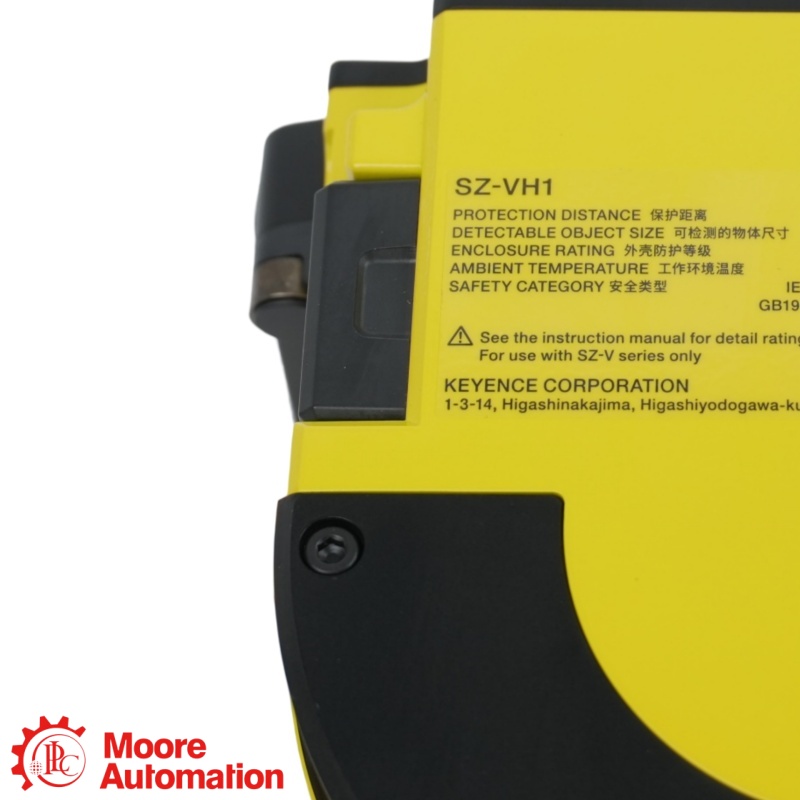

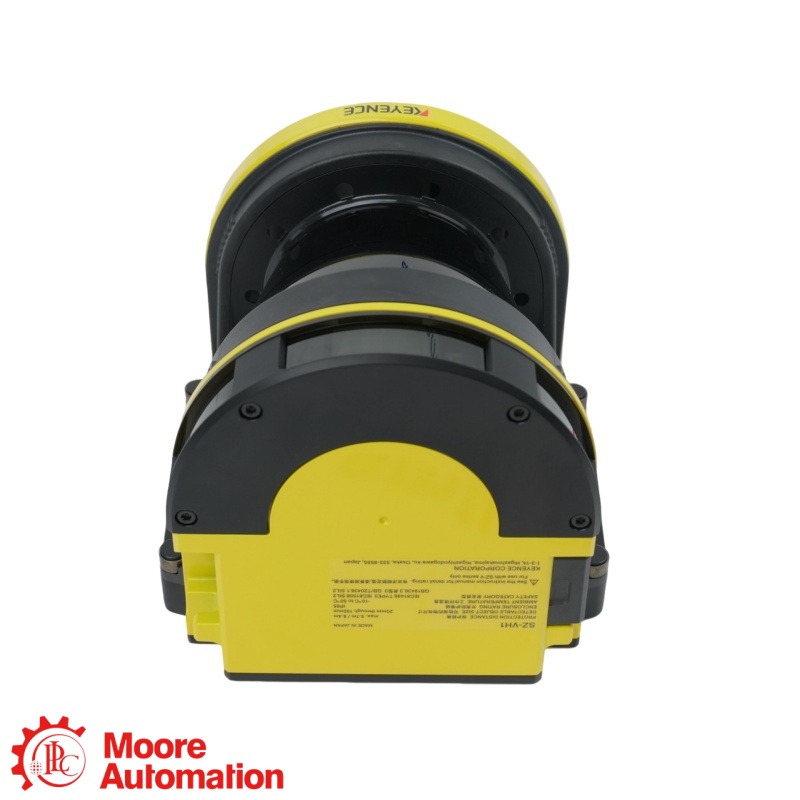

SZ-VH1 is the standard scanner head used with compatible KEYENCE SZ-V Series safety laser scanner display and controller configurations.
CONFIGURATION NOTE
For SZ-VH1, verify the compatible SZ-V display or controller unit, head cable, mounting arrangement, protection-zone settings and required safety function.
KEYENCE exact-model and SZ-V Series manufacturer-reference information.
Official configuration checkVerify SZ-VH1, the compatible SZ-V display or controller unit, required detection zone, response-time settings, cable and mounting arrangement against current KEYENCE documentation.
General Information −
BrandKEYENCE
Part numberSZ-VH1
Product typeStandard-type scanner head
Product familySZ-V Series Safety Laser Scanner
Compatible systemCompatible SZ-V display/controller unit required
Camera functionNo; SZ-VH1X is the camera-equipped head
Scanner Head and Optical Data ＋
Light sourceInfrared laser diode, 905 nm
Detectable angle190° (-5° to 185°)
Maximum measurement distance60 m (SZ-V system specification)
System and Installation Data ＋
Head-to-display connection20 m or less per scanner head
Multiple scanner headsUp to 3 with a supported SZ-V configuration
System supply24 V DC; confirm the selected controller/display unit
Enclosure ratingIP65 (IEC 60529)
Exact-model weightApprox. 1,600 g
Environment and Certification ＋
SZ-V Series operating range: -10 to +50°C, 35% to 85% RH, with no freezing or condensation. Confirm the complete system safety design and applicable standards before commissioning.
Source: KEYENCE SZ-VH1 exact-model page and official SZ-V Series specifications and installation documentation.
FAQ
Questions Buyers Ask Most
What is SZ-VH1 used for?＋
SZ-VH1 is the standard scanner head for compatible KEYENCE SZ-V Series safety laser scanner systems used to monitor configured protection and warning zones.
Does SZ-VH1 include a camera?＋
No. SZ-VH1 is the standard scanner head; KEYENCE identifies SZ-VH1X as the scanner head with camera function.
Which display or controller unit is required for SZ-VH1?＋
SZ-VH1 must be paired with a compatible SZ-V display or controller unit selected for the required banks, outputs, networking and safety functions.
What optical specifications apply to SZ-VH1?＋
The SZ-V system uses a 905 nm infrared laser and a 190° detection angle, with a maximum measurement distance of 60 m; the usable protection-zone range depends on object-size and scan-mode settings.
What should be checked before installing SZ-VH1?＋
Before installing SZ-VH1, verify mounting, cable length, optical-window condition, minimum safety distance, zone configuration and response-time settings against the KEYENCE manual.
What environmental ratings apply to SZ-VH1?＋
KEYENCE specifies IP65 enclosure protection and an operating ambient range of -10 to +50°C for the SZ-V system, with 35% to 85% RH and no condensation.
Where can official documentation for SZ-VH1 be found?＋
KEYENCE lists an exact SZ-VH1 data sheet and installation manuals on its official product and safety-support pages; the PDF download flow may require a KEYENCE account.
CONTACT PRODUCT SPECIALIST
Check your SZ-V configuration with Frida
Share the complete scanner-head model, display/controller unit, cable, mounting details and required protection zone for compatibility and availability checking.
Official KEYENCE product, specification and installation references for the SZ-VH1 scanner head.
Official datasheet status
KEYENCE lists an exact SZ-VH1 data sheet, but the public download flow requires sign-in or registration. Use the official product page and request the file if direct PDF access is unavailable.
KEYENCE SZ-V SERIESPRODUCT FAMILY · SAFETY LASER SCANNER
STANDARD SCANNER HEAD
SZ-VH1
SZ-VH1 provides the laser-scanning head for a compatible KEYENCE SZ-V display or controller configuration.
SYSTEM INTERFACE
MATCH DISPLAY / CONTROLLER
Match SZ-VH1 with the compatible SZ-V display or controller unit, head cable and required safety functions.
SCANNER HEAD TYPE
STANDARD · NON-CAMERA
KEYENCE identifies SZ-VH1 as the standard scanner head; SZ-VH1X is the camera-equipped version.
System relationship: verify SZ-VH1, the compatible display/controller unit, head cable, mounting arrangement, zone settings and safety distance.
APPLICATION AREAS
Application map for SZ-VH1
Machine-Area ProtectionMonitors configured protection zones around hazardous machinery
Mobile Equipment MonitoringSupports configured area monitoring for compatible mobile applications
APPLICATION CENTER
SZ-VH1Standard Scanner Head
Protection and Warning ZonesConfigure detection zones with the compatible SZ-V controller/display system
System IntegrationConfirm controller, cable, mounting and safety-function requirements
