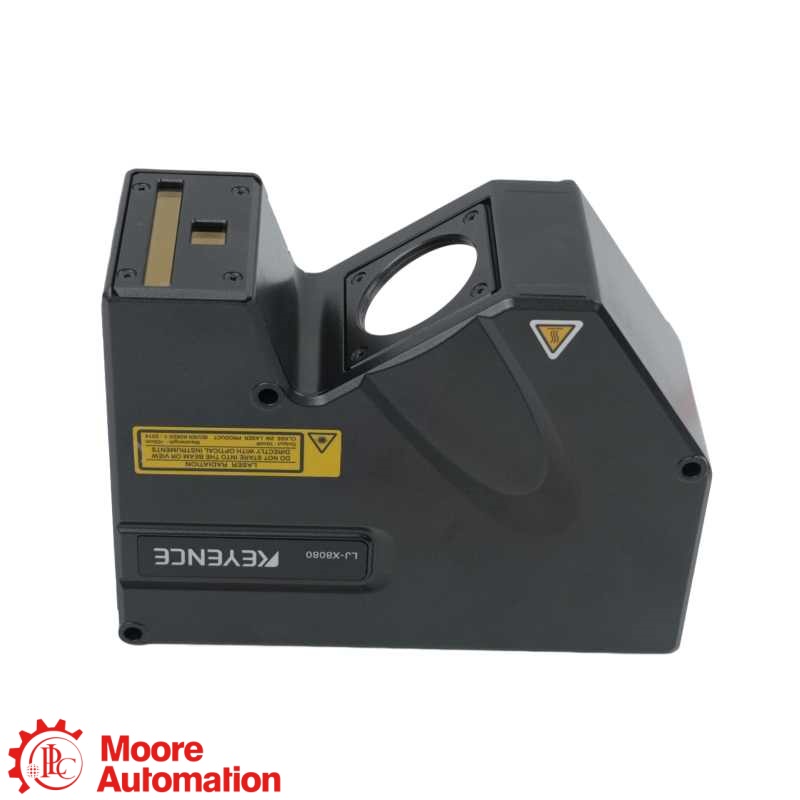

LJ-X8080 is the LJ-X8000 Series sensor head for 2D/3D laser profile measurement. It combines a blue 405 nm laser with high-resolution profile acquisition for compatible KEYENCE LJ-X8000 controller systems.
CONFIGURATION NOTE
For LJ-X8080, verify the compatible LJ-X8000 system/controller, cables, mounting arrangement and required operating configuration.
KEYENCE LJ-X8080 exact-model page and official LJ-X8000 Series specifications.
Official configuration checkVerify LJ-X8080, is the LJ-X8000 Series sensor head for 2D/3D laser profile measurement. It combines a blue 405 nm laser with high-resolution profile acquisition for compatible KEYENCE LJ-X8000 controller systems. Verify the compatible controller, cables, mounting and operating limits against current KEYENCE documentation.
General Information −
BrandKEYENCE
Part numberLJ-X8080
Product type2D/3D laser profiler sensor head
Product familyLJ-X8000 Vision System
Compatible systemLJ-X8000 controller required
Camera functionLaser profile sensor; not a camera
Optical and Profile Data ＋
Light sourceBlue semiconductor laser, 405 nm
Detectable angleZ range ±20.5 mm (F.S. 41 mm)
Maximum measurement distanceX-axis width 39 mm (far side)
Measurement and Environment Data ＋
Head-to-display connectionReference distance 73 mm
Profile acquisitionProfile data: 3,200 points
System supplyX-axis profile interval 12.5 µm (10 µm+ configurable)
Enclosure ratingIP67 (IEC 60529)
Exact-model weightAPPROX. 1,100 G
Environment and Certification ＋
LJ-X8080 operating ambient temperature 0 to +45°C, relative humidity 85% RH or less, and the sensor head must be mounted to a metal plate. Confirm laser safety requirements before commissioning.
Source: KEYENCE LJ-X8080 exact-model page and official LJ-X8000 Series specifications and installation documentation.
FAQ
Questions Buyers Ask Most
What is LJ-X8080 used for?＋
LJ-X8080 is the LJ-X8000 sensor head for inline 2D/3D laser profile measurement.
What is the LJ-X8080 measurement range?＋
It uses a 73 mm reference distance, Z range ±20.5 mm (F.S. 41 mm), and X widths of approximately 30 mm near, 35 mm reference and 39 mm far.
What laser does LJ-X8080 use?＋

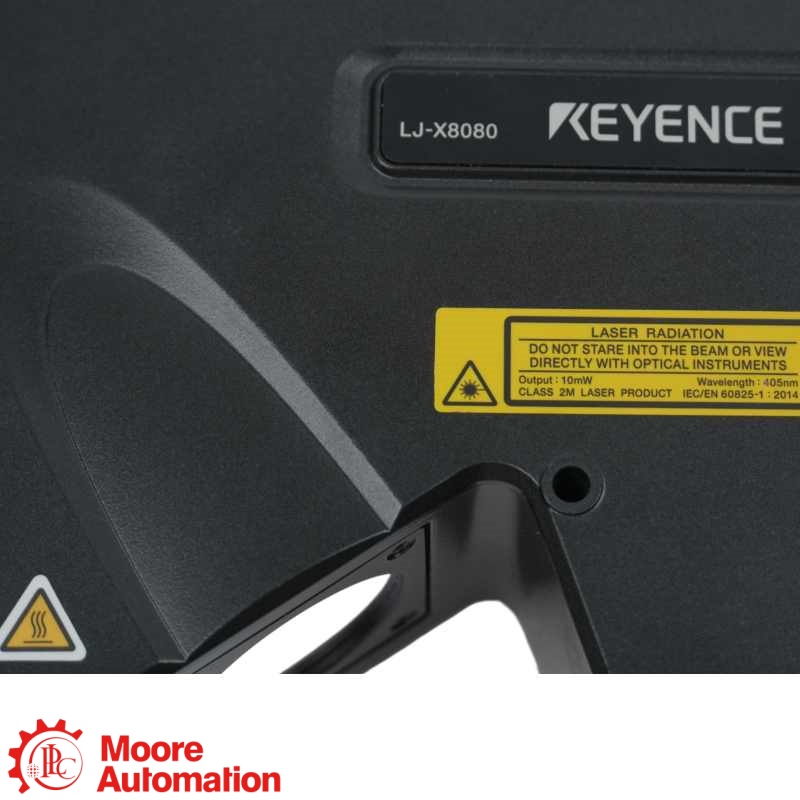

It uses a blue 405 nm semiconductor laser rated 10 mW, Class 2M; follow KEYENCE laser-safety requirements.
How many profile points does LJ-X8080 provide?＋
It provides 3,200 profile points with a 12.5 µm profile interval (10 µm+ configurable).
What should be checked before installing LJ-X8080?＋
Check the LJ-X8000 controller, head cable, metal mounting plate, optical clearance and laser-safety controls.
What environmental ratings apply to LJ-X8080?＋
KEYENCE specifies IP67 protection, 0 to +45°C operation and relative humidity of 85% RH or less.
Where can official documentation for LJ-X8080 be found?＋
Use the official KEYENCE model page; the exact data-sheet download flow may require a KEYENCE account.
CONTACT PRODUCT SPECIALIST
Check your LJ-X8000 configuration with Frida
Share the complete model, compatible system, cables, mounting details and application requirements for compatibility and availability checking.
Official KEYENCE product, specification and installation references for LJ-X8080.
Official datasheet status
KEYENCE lists the exact LJ-X8080 product page and data-sheet flow, but the public download may require sign-in or registration. Use the official product page and request the file if direct PDF access is unavailable.
LJ-X8080 LJ-X8080 provides profile data to a compatible LJ-X8000 controller.
SYSTEM INTERFACE
MATCH LJ-X8000 CONTROLLER
Match LJ-X8080 with the compatible LJ-X8000 controller, head cable and metal mounting arrangement.
SENSOR HEAD TYPE
BLUE 405 NM LASER
KEYENCE LJ-X8080 is a blue-laser profile sensor head for 2D/3D measurement.
System relationship: verify LJ-X8080 and its compatible LJ-X8000 system, cables, mounting, interfaces and operating requirements.
APPLICATION AREAS
Application map for LJ-X8080
Inline Profile MeasurementCapture high-resolution 2D/3D profiles on compatible production lines
Surface / Height InspectionMeasure surface shape, height and profile variation
APPLICATION CENTER
LJ-X8080Standard Scanner Head
Surface / Height InspectionMeasure surface shape, height and profile variation
System IntegrationConfirm controller, cable, mounting and laser-safety requirements
