IFM II5910 Inductive Sensor

IFM · INDUCTIVE SENSOR

II5910

The II5910 is an IFM inductive sensor with a PNP normally open output and a 15 mm sensing range for industrial applications and factory automation.

DEVICE FAMILYInductive Sensor

APPLICATIONIndustrial applications / factory automation

CONFIGURATIONPNP · normally open

ORDER NUMBERII5910

MANUFACTURERIFM

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATIONProduct photos and videos provided after inquiry

REQUEST A QUOTE

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

IFM ↗INDUCTIVE SENSOR

IFM INDUCTIVE SENSOR

II5910

15 mm · PNP · normally open

PRODUCT ROLE

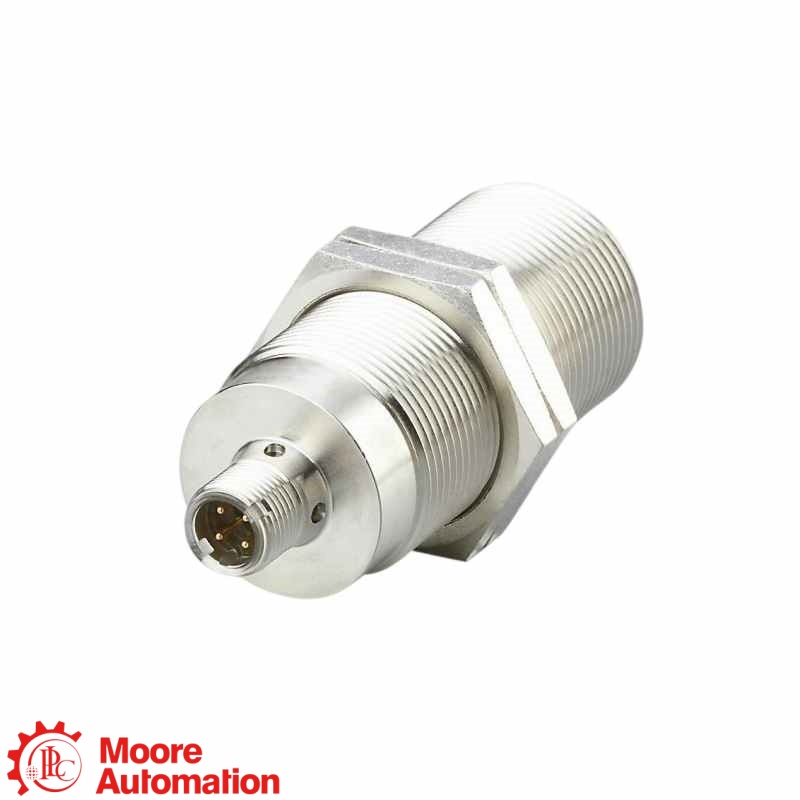

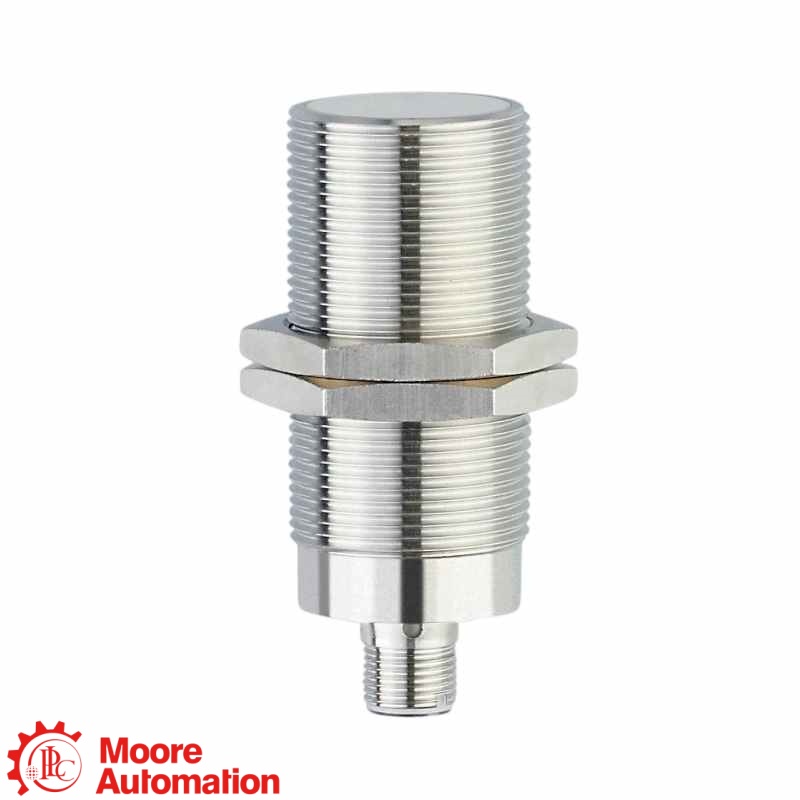

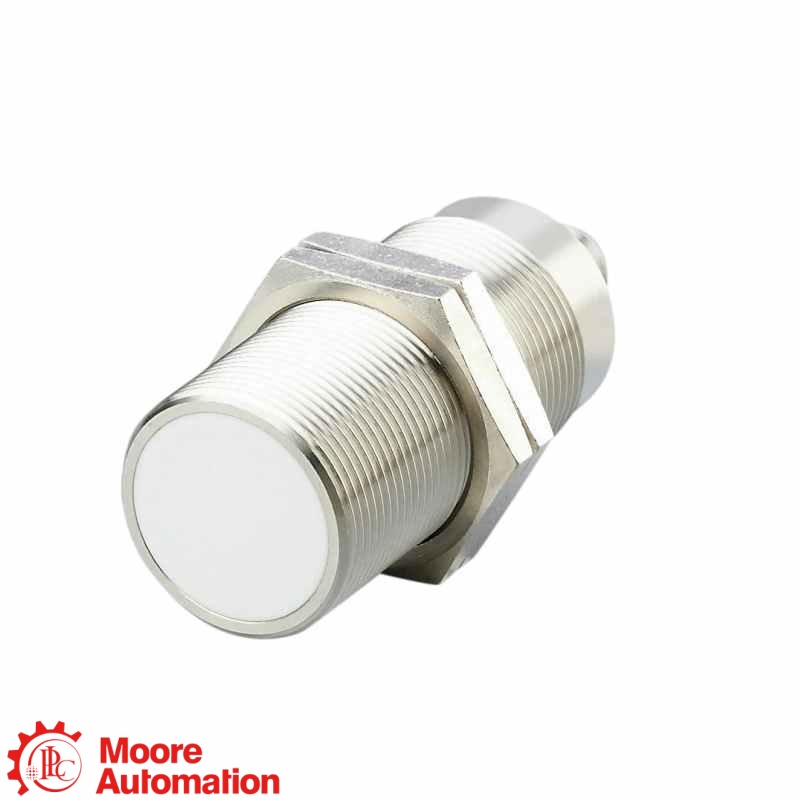

II5910 is an IFM inductive sensor with a 15 mm sensing range, PNP normally-open output, M30 threaded housing and M12 connection.

CONFIGURATION NOTE

For II5910, confirm the exact model, 10...32 V DC supply, PNP normally-open input compatibility, flush mounting conditions and M12 A-coded connection before installation.

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

PUBLIC DOCUMENTATION CHECK

II5910 · INDUCTIVE SENSOR

Engineering data at a glance

Confirm the exact II5910 model, electrical design, sensing distance, connector arrangement, mounting method and environmental conditions before installation or replacement.

SENSING RANGE15 mm

OUTPUT FUNCTIONPNP · normally open

OPERATING VOLTAGE10...32 V DC

MODELII5910

The official IFM product data identifies II5910 as product designation IIA3015BBPKG/US-104 with PNP normally-open output, 15 mm sensing range and IP67 protection.

GENERAL INFORMATION＋

ManufacturerIFM

ModelII5910

Product typeInductive sensor

Product familyInductive sensors

ApplicationIndustrial applications / factory automation

Product designationIIA3015BBPKG/US-104

CONFIGURATION & UPGRADE CHECK＋

Electrical designPNP

Output functionNormally open

Sensing range15 mm

Operating distance0...12.15 mm

SYSTEM & ELECTRICAL COMPATIBILITY＋

Operating voltage10...32 V DC

Current consumption10 mA

Current rating200 mA

Switching frequency100 Hz

INSTALLATION & REPLACEMENT CHECK＋

HousingThreaded housing M30 x 1.5

DimensionsM30 x 1.5 / L = 75 mm

ConnectionM12 connector, A-coded, 3 gold-plated contacts

ProtectionIP67; short-circuit, overload and reverse-polarity protection

FAQ

Questions Buyers Ask Most

What is II5910 used for?＋

II5910 is an IFM inductive sensor for detecting metal objects in industrial automation applications without physical contact.

What is the sensing range of II5910?＋

II5910 has a 15 mm sensing range, a real sensing range of 15 ± 10%, and an operating distance of 0...12.15 mm.

What output type does II5910 provide?＋

II5910 provides a PNP normally-open output with a 200 mA current rating and 100 Hz switching frequency.

What supply voltage does II5910 require?＋

II5910 operates from 10...32 V DC, has 10 mA current consumption, and is protection class II.

How is II5910 mounted?＋

II5910 is designed for flush mounting in an M30 x 1.5 threaded housing; the maximum tightening torque is 50 Nm.

Which connection does II5910 use?＋

II5910 uses an M12 A-coded connector with three gold-plated contacts and includes two lock nuts.

What environmental protection does II5910 provide?＋

II5910 is rated IP67 for ambient temperatures from -40...70 °C and includes short-circuit, overload and reverse-polarity protection.

CONTACT PRODUCT SPECIALIST

Confirm your II5910 configuration with Frida

Share the complete model, quantity, installation conditions and electrical interface details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
II5910

The official IFM technical data for II5910 identifies product designation IIA3015BBPKG/US-104, 15 mm sensing range, PNP normally-open output, 10...32 V DC operation and IP67 protection.

IFM II5910 Official Technical Data

The official IFM technical data for II5910 identifies product designation IIA3015BBPKG/US-104, 15 mm sensing range, PNP normally-open output, 10...32 V DC operation and IP67 protection.

OPEN OFFICIAL TECHNICAL DOCUMENT

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on the official IFM II5910 product page and technical data sheet.

II5910 PRODUCT RELATIONSHIP

How II5910 fits the IFM inductive sensor range

IFM is the brand; Inductive Sensor is the product type; and II5910 is the exact model with product designation IIA3015BBPKG/US-104.

IFM · BRAND

IFM Inductive SensorPNP OUTPUT · 15 MM RANGE

EXACT MODEL

II5910 · IIA3015BBPKG/US-104

The sensor detects metal targets without contact and provides a PNP normally-open switching output for compatible industrial control inputs.

ELECTRICAL DATA

10...32 V DC · 200 mA

Confirm the 10...32 V DC supply, PNP input compatibility, 200 mA current rating and 100 Hz switching frequency before installation.

INSTALLATION DATA

10...32 V DC · 200 mA

Confirm the 10...32 V DC supply, PNP input compatibility, 200 mA current rating and 100 Hz switching frequency before installation.

System relationship: verify the exact II5910 nameplate, flush-mounting arrangement, M30 x 1.5 thread, M12 A-coded connection, target material and ambient conditions.

APPLICATION AREAS

Application and verification map for II5910

Metal DetectionDetects metal targets without physical contact

PNP SwitchingProvides a normally-open PNP output for compatible inputs

APPLICATION CENTER II5910 IFM Inductive Sensor

Electrical CompatibilityRequires 10...32 V DC and a compatible PNP switching input

Installation PlanningMatches the M30 flush-mounting position and M12 A-coded connection
