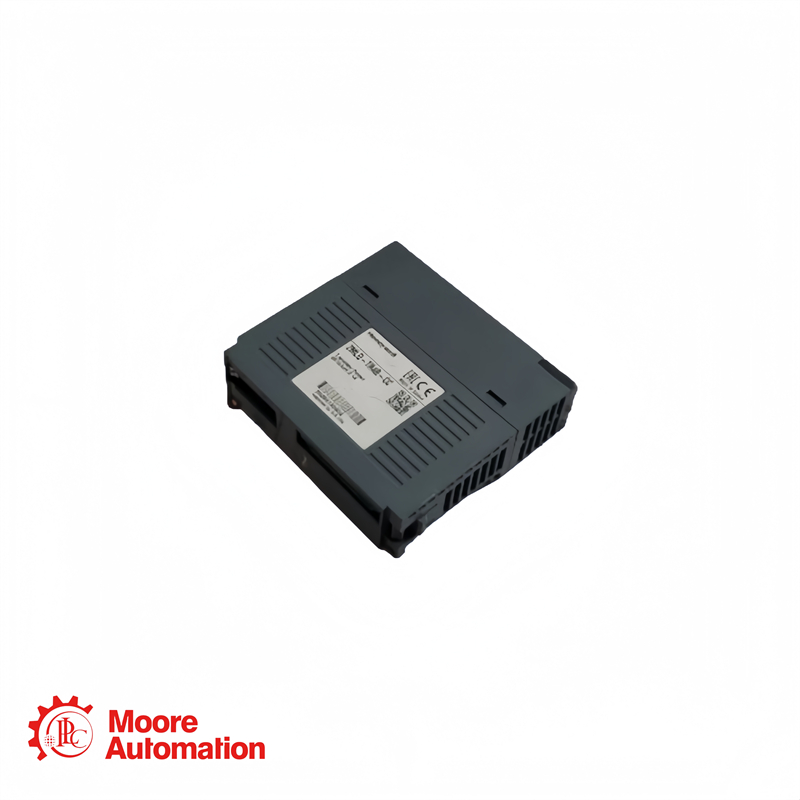

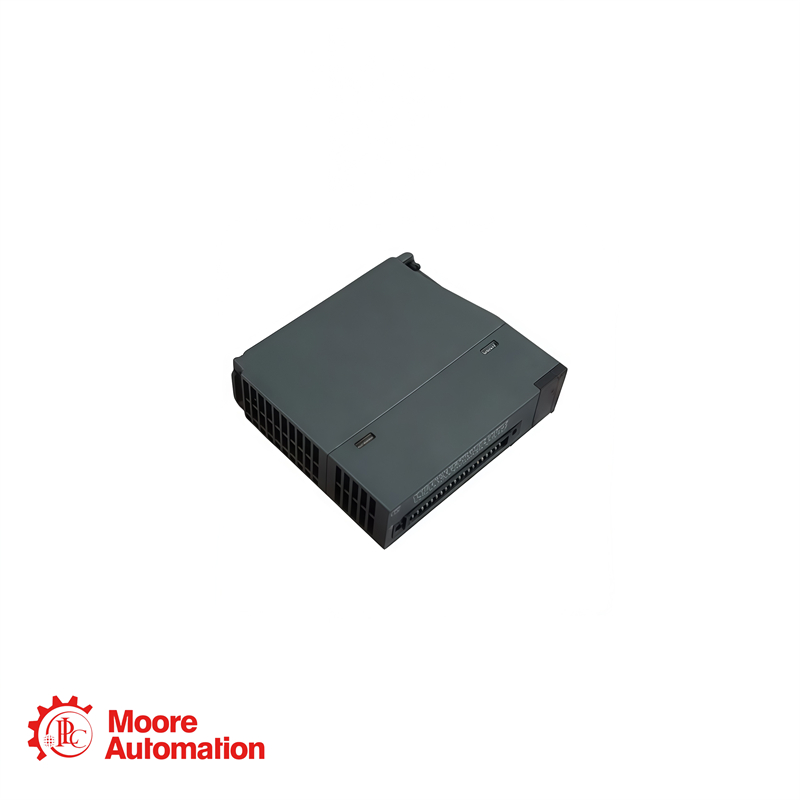

Honeywell 2MLQ-TR4B Transistor Output Module

Basic Information

Model Number: 2MLQ-TR4B

Manufacturer: Honeywell
Product Name: Transistor Output Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Number of Outputs: 32
Rated Load Voltage: 12/24 V DC
Load Voltage Range: 10.2–26.4 V DC
Rated Load Current: 0.1 A/point, 2 A/common
Maximum Surge Current: 0.7 A (10 ms or less)
Offset Leakage Current: ≤ 0.1 mA
On-state Voltage Drop: ≤ 0.2 V (at 0.1 A)
Response Time: OFF→ON ≤ 1 ms, ON→OFF ≤ 1 ms (resistive load)
Common Mode: 32 points/1 common
Surge Absorber: Zener Diode (Compliant with IEC 61006-6-2)
Isolation Method: Optocoupler Isolation (Channel to System)
Isolation Withstand Voltage: AC 560 V rms/3 cycles (at 2,000 m altitude)
Current Consumption: ≤ 130 mA (5 V backplane, all channels) ON)
External power supply: DC 12/24 V ±10% (ripple voltage 4 Vp-p or less)
Operating temperature: -25°C to +70°C
Storage temperature: -40°C to +85°C
Relative humidity: 5–95% RH (non-condensing)
External connection: 40-pin connector
Applicable cable: 0.3 mm²
Mounting method: 35 mm DIN rail
