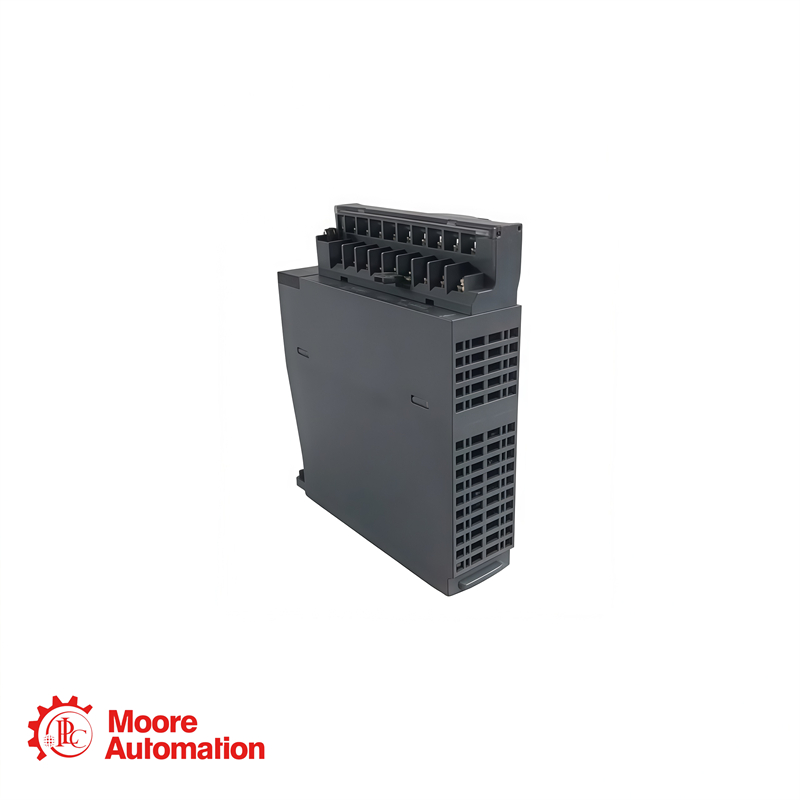

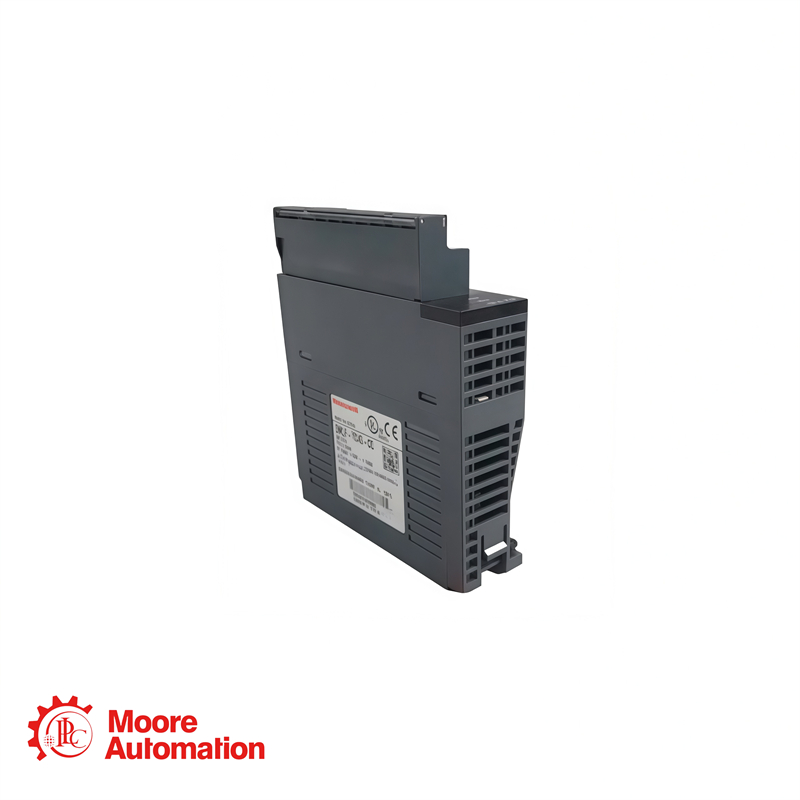

Honeywell 2MLF-TC4S Temperature Input Module

Basic Information

Model Number: 2MLF-TC4S

Manufacturer: Honeywell
Product Name: Temperature Input Module
Availability: In Stock
Product Origin: USA
Shipping Port: Xiamen, China

Condition: 100% Original

Warranty: 1 Year

Input Channels: 4, optically isolated between channels
Full Series Covers -270 to +2300°C
Display Resolution: 0.1°C
System Accuracy: ±0.1% F.S. (@25°C)
Temperature Coefficient: ±100 ppm/°C
Cold Junction Compensation: Built-in RJC (Pt100), Accuracy: ±1.0°C
Data Format: 16-bit signed (-32768 to 32767) or programmable from 0 to 65535
Digital Filter: 160 to 64000 ms Adjustable; supports time averaging and moving averaging.
Diagnostics: Wire break detection, overrange alarm, process alarm, gradient alarm, maximum/minimum value recording.
Isolation: Optocoupler isolation between channels and PLC power supply; channel-to-channel isolation.
Isolation withstand voltage: AC 560 V rms / 3 cycles (at an altitude of 2000 m).
Backplane 5 V consumption: 610 mA.
External power supply: No external power supply required.
Operating temperature: -25 … +70°C (-25 … +70°C)
Storage temperature: -40 … +85°C (-40 … +85°C)
Relative humidity: 5–95% RH (non-condensing).
External connection: 18-position removable screw terminal block (M3 x 6).
Applicable wire: 0.3–0.75 mm² stranded wire.
Mounting method: 35 mm DIN rail
