Brand :

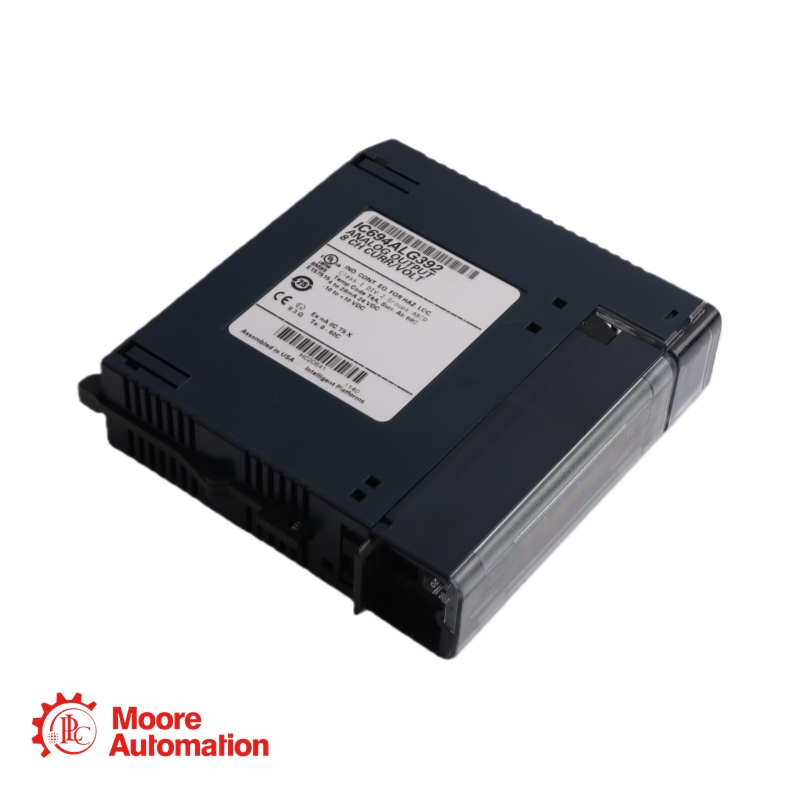

General ElectricPart Number :
IC694ALG392Weight :
0.3kgDimension :
3.5x13.3x13.5cmCountry of Origin :
United StatesHS Code :
8537101190Description :
Analog Output ModuleKey Information
Compatible Series: PACSystems RX3i and Series 90-30
Module Type: Analog Output Module, Current/Voltage
Number of Channels: 8 channels, single-ended, selectable
Output Ranges: 0 to +10 volts (unipolar), -10 to +10 volts (bipolar), 0 to 20 milliamps, 4 to 20 milliamps
Resolution: 15 to 16 bits depending on range; 4-20mA: 0.5 µA; 0-20mA: 0.625 µA; Voltage: 0.3125 mV
Update Rate: 8 milliseconds for all eight channels
Absolute Accuracy (Current Mode): +/-0.1% of full scale @ 25°C typical, +/-0.5% maximum over temperature
Absolute Accuracy (Voltage Mode): +/-0.25% of full scale @ 25°C typical, +/-1.0% maximum over temperature
User Supply Voltage: +24 VDC nominal (20 to 30 VDC range) from external source
Internal Supply Voltage: +5 VDC from backplane
Power Consumption: 110 mA from +5 VDC backplane; 315 mA from +24 VDC user supply
Isolation: 250 VAC continuous; 1500 VDC for 1 minute (field to backplane and frame ground)
Load Requirements (Current Mode): 0 to 850 Ω (min at 20V) to 1350 Ω (max at 30V)
Load Requirements (Voltage Mode): 2 K Ohms minimum resistance, 1 µF maximum capacitance
