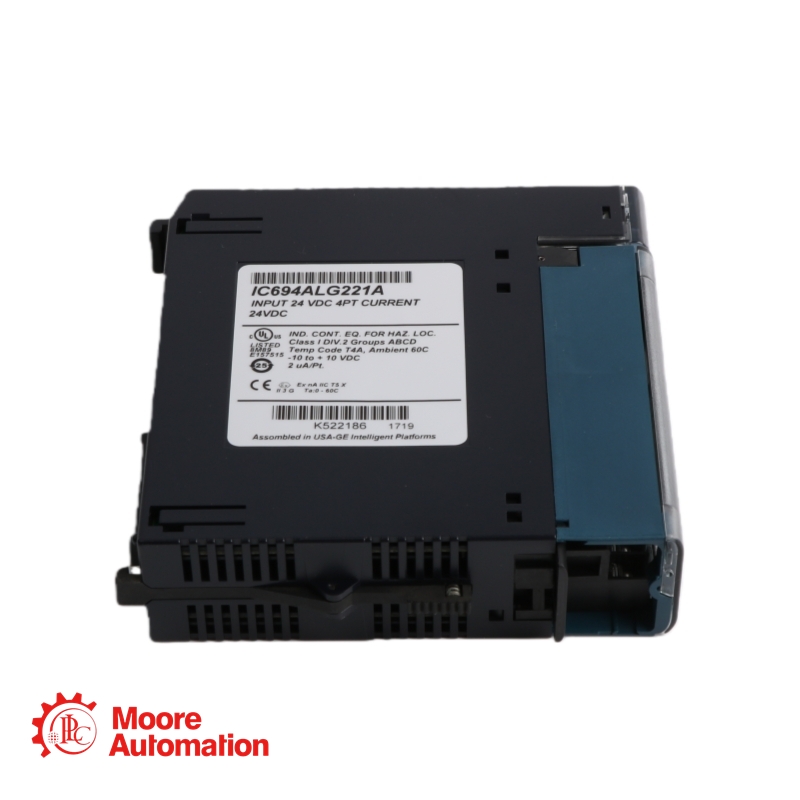

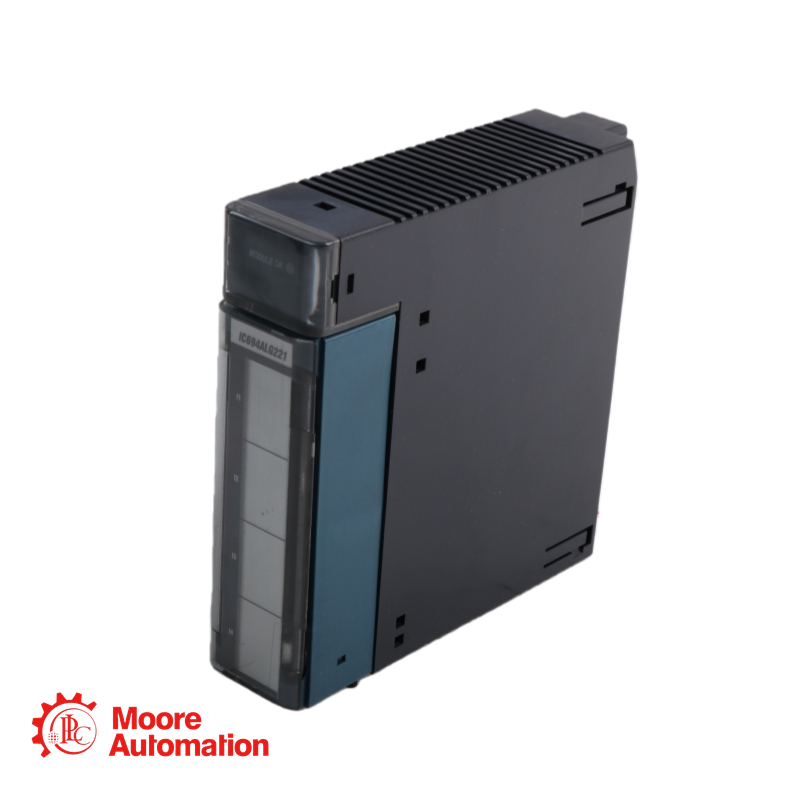

Brand :
General ElectricPart Number :
IC694ALG221Weight :
0.36kgDimension :
3.5x13.2x13.5cmCountry of Origin :
United StatesHS Code :
8537101190Description :
Analog Input ModuleKey Information
Module Type: Analog Input Module, 4 Channel Differential Current
Number of Channels: 4 channels, differential
Input Ranges: 4 to 20 mA, 0 to 20 mA (selectable via jumpers for channel pairs 1-2 and 3-4)
Calibration: Factory calibrated to 4 µA per count
Update Rate: 2 milliseconds for all four channels
Conversion Speed per Channel: 0.5 milliseconds
Resolution: 12 bits binary (1 part in 4096)
Resolution at 4–20 mA: 4 µA (1 LSB = 4 µA)
Resolution at 0–20 mA: 5 µA (1 LSB = 5 µA)
Absolute Accuracy: 0.1% full scale + 0.1% reading
Common Mode Voltage: 200 volts
Linearity: < 1 Least Significant Bit
Isolation: 250 VAC continuous; 1500 VAC for 1 minute (field to backplane and frame ground)
Common Mode Rejection: > 70dB at DC; >70dB at 60Hz
Cross-Channel Rejection: > 80dB from DC to 1kHz
Input Impedance: 250 Ohms
Input Filter Response: 325 Hz
