Brand :
General ElectricPart Number :
IC693MDL740Weight :
0.28kgDimension :
3.5x13x13.5cmCountry of Origin :
United StatesHS Code :
8537101190►Product in Focus

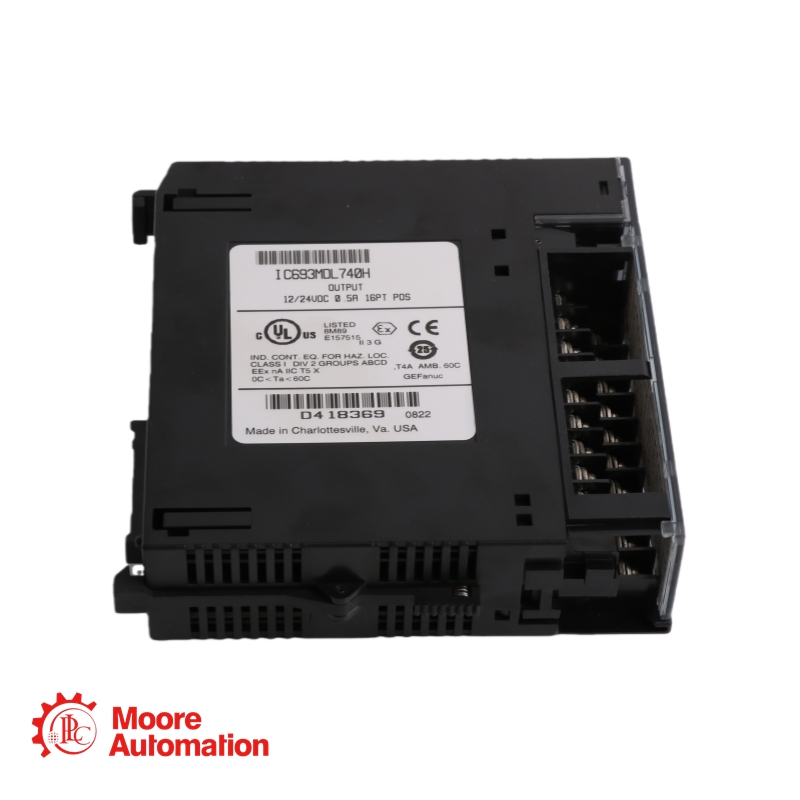

Product Name: IC693MDL740
Module Type: 12/24 Volt DC Positive Output - 0.5 Amp, 16 Point
Rated Voltage: 12/24 volts DC
Output Voltage Range: 12 to 24 volts DC (+20%, –15%)
Number of Outputs: 16 points
Output Grouping: Two groups of eight outputs each with a common power output terminal per group
Type: Positive (sources current to loads)
Isolation: 1500 volts
Isolation (Between Groups): 500 volts
Current per Point: 0.5 amps maximum
Current per Common: 2 amps maximum
Inrush Current: 4.78 amps for 10 ms
Output Voltage Drop: 1 volt maximum
Off-state Leakage Current: 1 mA maximum
On Response Time: 2 ms maximum
Off Response Time: 2 ms maximum
Power Consumption: 110 mA (all outputs on) from 5 volt bus on backplane
Status Indicators: Two rows of eight green LEDs each (A1-8, B1-8)
Fuses: No fuses on this module
Insert Color Code: Blue (indicating a low-voltage module)
Compatible Baseplates: Any I/O slot of a 5 or 10-slot Series 90-30 baseplate
