Brand :
General ElectricPart Number :
IC693MDL654Weight :
0.26kgDimension :
3.5x13x13.5cmCountry of Origin :
United StatesHS Code :
8537101190Description :

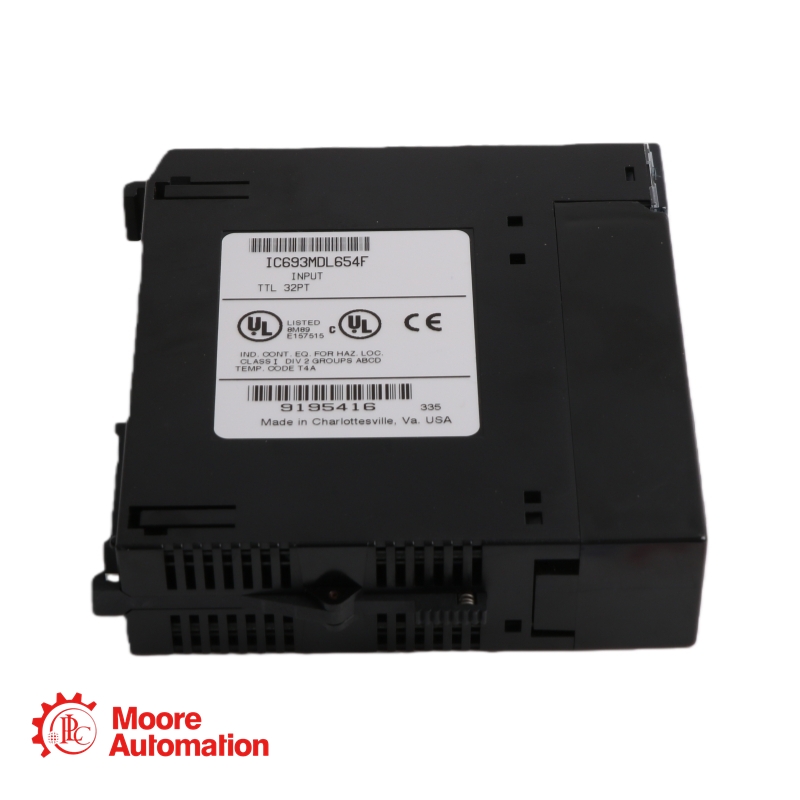

32 Point Input Module►Product in Focus
Product Name: IC693MDL654
Module Type: 5/12 VDC (TTL) Positive/Negative, 32 Point Input
Rated Voltage: 5 to 12 volts DC, Positive or Negative
Input Voltage Range: 0 to 15 volts DC
Number of Inputs: 32 points
Input Grouping: Four isolated groups of eight inputs each (A1-A8, B1-B8, C1-C8, D1-D8)
Isolation (Field): 1500 volts
Isolation (Between Groups): 250 volts
Input Current: 3.0 mA typical ON current @ 5 VDC; 8.5 mA typical ON current @ 12 VDC
On-state Voltage: 4.2 to 15 volts DC
Off-state Voltage: 0 to 2.6 volts DC
On-state Current: 2.5 mA minimum
Off-state Current: 1.2 mA maximum
On Response Time: 1 ms maximum
Off Response Time: 1 ms maximum
Internal Power Consumption: 195 mA maximum from +5V bus on backplane; 440 mA maximum if module's isolated +5V supply is used to power all 32 inputs
Isolated +5V Supply: +5 volts DC ±5%, 150 mA typical current limit
Status Indicators: Green LEDs for each input point (A1-A8, B1-B8, C1-C8, D1-D8)
Connectors: Two 24-pin male connectors (Fujitsu FCN-365P024-AU)
Compatible Cables: IC693CBL327, IC693CBL328
Compatible Baseplates: Any I/O slot of a 5 or 10-slot Series 90-30 baseplate
